SKU: G3TMK-A/STHYD/DR

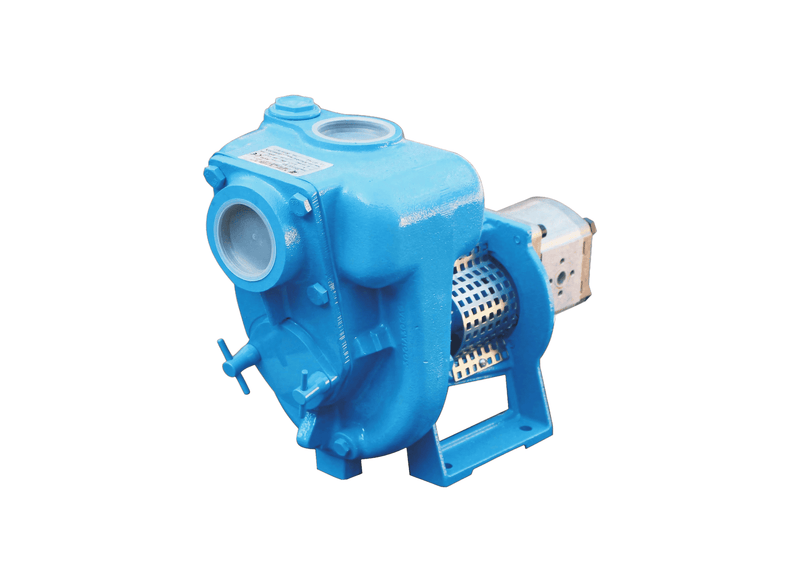

Aussie Pumps GMP G3TMK-A/STHYD/DR High-Head Stainless Hydraulic Mud Transfer Pump with Casappa Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Casappa-powered and range-topping, this 12.5 kW mud pump drives 1,100 litres of abrasive water a minute, shutting off at 55 metres through a Casappa PLM30.34 motor. The hardest hydraulic mud duty in the catalogue. Hardest catalogued mud duty is G3TMK-A/STHYD/DR with Casappa 12.5 kW drive.
Open flow peaks at 1,100 L/min with shut-off at 55 m (78 PSI). Cast iron with a stainless-steel open non-clog impeller clears 16 mm solids, sealed by tungsten-carbide faces with nitrile rubber.
Catalogue-hardest hydraulic mud duty calls for 34 cm3/rev at 100 bar (12.5 kW) through the Casappa PLM30.34, driving 1,100 litres of abrasive water a minute, shutting off at 55 metres. The 80 mm ports prime from 6 m, and the front-mounted clean-out port keeps maintenance fast.
This configuration is specified for drilling-rig duty, including the removal of water from rig sumps and abrasive-water transfer around the work area. It also supports dust-suppression supply where drilling and access activity create airborne material that needs to be controlled with water.
Features
- Hardest-duty Casappa PLM30.34 at 34 cm3/rev and 100 bar (12.5 kW) tops hydraulic mud power.
- Open discharge of 1,100 L/min, shutting off at 55 m (78 PSI) leads abrasive elevation transfer.
- Solids of 16 mm via the stainless open impeller suit mineralised high-head sources.
- Grit-proof tungsten-carbide faces with nitrile rubber seal the pump for the hardest service.
- Fast maintenance via a front-mounted clean-out port with 6 m self-priming limits downtime.
- At 61 kg, the package can be planned around appropriate lifting, skid or fixed-installation arrangements.
- Covered by the 3 year Aussie Pumps pump warranty.
SPECIFICATIONS
| Max Flow | 1100 L/Min |
| Max Head | 55 m |
| Power | 12.5 kW / 100 Bar |
| Suitable For | Abrasive-Water Mobile Applications |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What diameter solids can travel across the volute waterways without obstructing flow during dirty liquid transfer?
Internal waterways and the AISI 316 stainless steel impeller on the Aussie Pumps Hydraulic Mud G3TMK-A/ST (G3TMK-A-STHYD-DR) accommodate suspended solids and spherical matter up to 16 mm across without restricting fluid throughput.
What vertical drafting capability does the internal priming chamber provide across routine site transfer duties?
No foot valve is needed on the G3TMK A STHYD DR with a self-priming lift of up to 6 m once the casing is filled.
How are replacement mechanical seals, wear plates, and impellers sourced across Australia from Australian parts distribution centers?
Covered by the 3 year Aussie Pumps pump warranty with factory spare parts support.
What discharge output volume and total static head are achieved under full operating speed?
Discharge performance for the G3TMK-A/STHYD/DR yields an open flow volume of approximately 1100 L/min and reaches a maximum shut-off elevation of approximately 55 m.
What hydraulic circuit pressures and flow rates power this pumping unit across mobile carrier equipment?
Hydraulic oil flow from the carrier machine powers the motor on the G3TMK-A/ST (G3TMK-A/STHYD/DR), providing self-contained pumping without on-board petrol or diesel engines.
