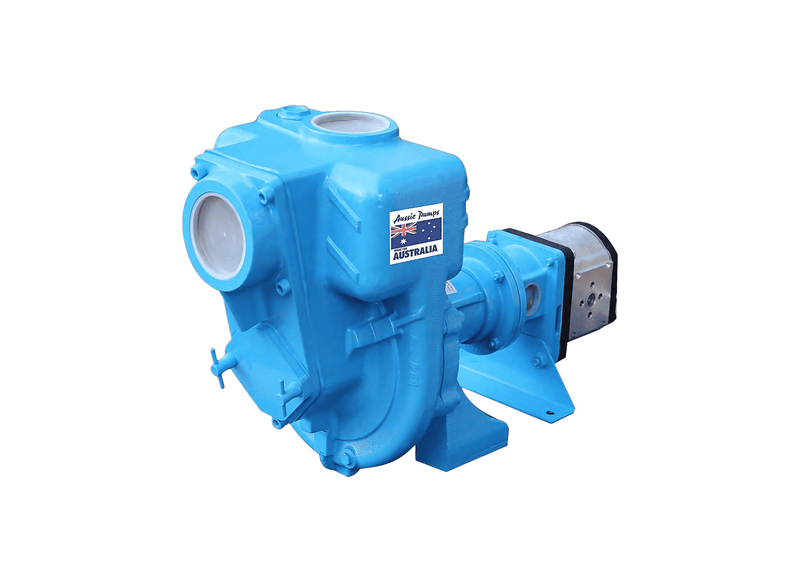

Aussie Pumps GMP G3TMK-A/STHYD/TC# Tungsten-Carbide Sealed Hydraulic Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Gritty high-head water meets its match in this tungsten-carbide sealed variant, adding TC seal faces to the 47-metre 3-inch hydraulic trash pump for abrasive high-pressure service. Elevation plus endurance in one unit. Abrasive high-head endurance is G3TMK-A/STHYD/TC# with tungsten-carbide seals factory fitted.
Open flow holds 850 L/min, shutting off at 47 m head (67 PSI). Cast-iron construction with an open non-clog impeller runs 80 mm suction and discharge with 6 m self-priming lift, while the fitted tungsten-carbide seals shrug off silt.
Abrasive high-pressure service gains fitted tungsten-carbide seals over the same 22 cm3/rev at 150 bar (7 kW) hydraulics, shrugging off silt, shutting off at 47 metres and 850 litres a minute. The 61 kg ready-to-mount package primes its 80 mm suction and discharge from 6 m.
For mine sites, the rated duty list includes dust suppression, water-cart filling, fire fighting and dewatering. That gives operators one hydraulic pump for haul-road water control, mobile cart supply, emergency fire-water support and clearing water from sumps and changing work areas.
Features
- Silt-shrugging tungsten-carbide seal faces are factory fitted for abrasive high-pressure service life.
- Maximum flow of 850 L/min, shutting off at 47 m (67 PSI) holds elevation in gritty water.
- Grit-proof cast-iron body with an open non-clog impeller and 80 mm ports handles silted sources.
- Same demand of 22 cm3/rev at 150 bar (7 kW) keeps carrier requirements identical to the standard unit.
- Ready-to-mount 61 kg package with 6 m self-priming installs quickly on carriers and skids.
- Abrasive high-head duties carry 3 year protection for suppression, carts, fire and dewatering.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What total liquid discharge rate and vertical pressure elevation are developed across long transfer runs?
Discharge performance for the Aussie Pumps Hydraulic High Pressure G3TMK-A/ST (G3TMK-A-STHYD-TC#) yields an open flow volume of approximately 850 L/min and reaches a maximum shut-off elevation of approximately 47 m.
What spherical particle size is accommodated through the open passage impeller during routine excavation drainage?
The open cast iron impeller on the G3TMK-A/STHYD/TC# allows spherical solids up to 16 mm in diameter to pass freely without choking internal water passages.
What auxiliary hydraulic oil flow and pressure are required to spin the wet end across mobile water cart circuits?
Carrier machinery PTO circuits power the close-coupled hydraulic motor on the G3TMK-A-STHYD-TC#, supplying steady shaft propulsion on site.
Is manual suction line priming necessary when drawing fluid from underground tanks during everyday operations?
Built-in priming passages on the G3TMK A STHYD TC# draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What warranty protection and replacement parts support back this equipment in Australia across regional service centers nationwide?
Covered by the 3 year Aussie Pumps pump warranty with factory spare parts support.
