SKU: G3TMK-A/X 5.5KW

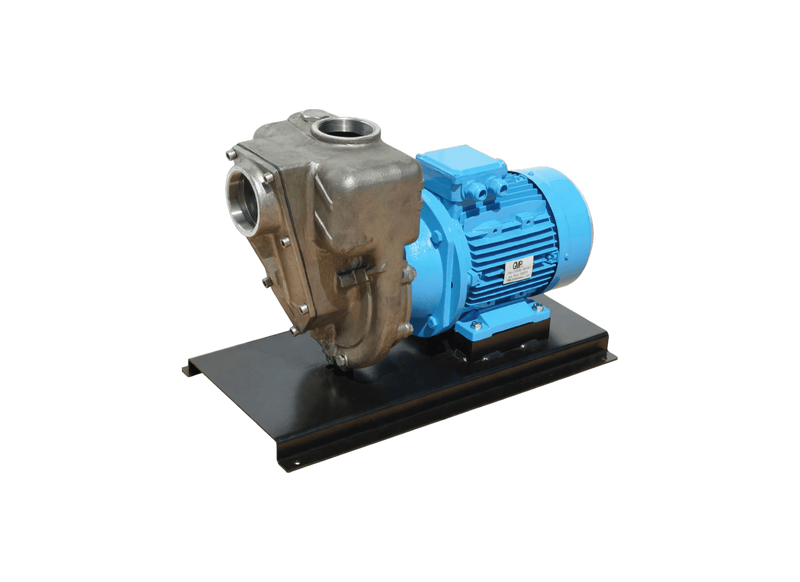

Aussie Pumps GMP G3TMK-A/X 5.5KW Stainless Steel Three Phase Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-head chemical elevation, corrosive liquid recycling, and industrial solvent lines deploy the Aussie GMP G3TMK-A/X motor-driven unit in full large stainless steel. A heavy channel-steel base frame holds mechanical structurality on concrete plant floors.
Elevated chemical delivery moves up to 910 L/min under open-flow conditions, accompanied by a 40 m (57 PSI) shut-off head at zero flow. The cast 316 stainless steel chamber encloses an open semi-trash impeller passing suspended particles up to 10 mm without clogging.
Corrosive plant propulsion is powered by a 5.5 kW three-phase 415 V TEFC motor with IP55 washdown protection, supplied unwired for hardwired isolator connection. Centrifugal self-priming suction draws solids-laden fluids from 6 m vertical depths without a foot valve.
A replaceable 316 stainless wear cover and 316 SS-encased mechanical seal protect the wet end against slurry erosion up to 70°C intermittently. Standard 3-inch BSP ports streamline chemical line integration. Supported by Aussie Pumps 3-year commercial warranty.
Features- Moves up to 910 L/min open discharge fluid volume for rapid chemical transfer and washdown.
- Cast 316 stainless steel casing and impeller resist chemical attack, corrosive food waste, and acids.
- Handles suspended particulate and compressible solids up to 10 mm without binding.
- High-efficiency 5.5 kW three-phase 415 V TEFC electric drive rated to IP55 standards.
- Mounted on a structural channel-steel base plate to isolate vibration and preserve alignment.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 910 L/Min |
| Max Head | 40 m |
| Power | 5.5 kW / 415v |
| Suitable For | Chemical Supply |
| Body Material | 316 Stainless Steel |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this multi stage stainless pump deliver elevation head for scrubber towers?
Multi-stage 316 stainless steel impellers on the Aussie Pumps GMP 316 Stainless Steel ATEX High Pressure G3TMK-A/X (G3TMK-A/X 5.5KW) boost delivery pressure up to 40 m to lift acidic wash liquor up tall gas absorption scrubbers.
How much delivery volume per minute and what elevation head are produced on site?
Operating across its curve, the G3TMK-A/X 5.5KW yields up to approximately 910 L/min in open discharge and reaches an elevation head of approximately 40 m.
What electrical connection powers this electric motor pump?
Shaft propulsion for the G3TMK-A-X-5.5KW is supplied by a three-phase electric motor rated at 5.5 kW, operating on 415 V line power with an IP55 enclosure.
What flameproof design features protect chemical plants during pump operation?
Explosion-proof motor engineering on the G3TMK A X 5.5KW encloses electrical components to eliminate spark risks in volatile process environments.
What mounting features allow secure anchoring on chemical bunds and plant skids?
A heavy channel steel base plate anchors the G3TMK-A/X (G3TMK-A/X 5.5KW), anchors the 102 kg assembly, providing rigid motor alignment and bolt-down anchoring for plant skids.
