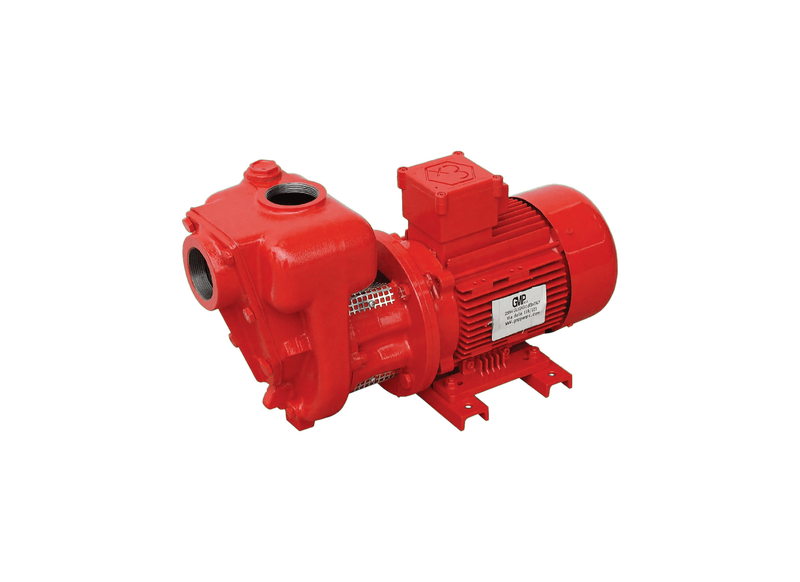

Aussie Pumps GMP GB1.5KQ-A/ATEX3P Flameproof Three Phase 1½" Ports Diesel Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Fixed fuel farms and mine-site bowser stations wire this three-phase flameproof transfer pump into their 415 V reticulation, holding up to 290 litres a minute ready for fleet refuelling inside classified zones. Hard-wired flameproof drive means no hot-work permits for the pump itself. Fuel-farm 415 V reticulation takes GB1.5KQ-A/ATEX3P for hard-wired classified stations.
Performance spans 290 L/min at open discharge to a 16 m (23 PSI) shut-off head on fresh-water viscosity liquids. The heavy-duty cast wet end with replaceable suction cover runs a big open impeller for 8.5 mm solids, with Viton/carbon/alumina sealing standard.
Directly accepting 415 V reticulation, the 0.75 kW three-phase ATEX motor holds flameproof certification in an IP55 frame for fixed fuel-farm wiring. Day-tank and drum-transfer layouts suit the self-priming 1½-inch waterways, good from 6 m with a renewable suction cover.
This flameproof configuration is specified for hazardous-area diesel and fuel-oil movement, including machinery and marine refuelling, earth-moving fleets, mining plant and generators. Its listed duties also include waste-oil collection and heating-oil transfer, supporting fuel-service work wherever hazardous-area requirements apply.
Features
- Reticulation-ready 0.75 kW 415 V three-phase ATEX motor with IP55 protection wires into fixed fuel-farm circuits.
- Maximum flow of 290 L/min with shut-off at 16 m head (23 PSI) holds fleet bowser stations ready around the clock.
- Day-tank-friendly 1½-inch ports with 8.5 mm solids capability fit drum and tank transfer layouts.
- Standard-fit Viton, carbon and alumina seal set resists diesel, oils and heating fuels.
- Renewable suction cover with 6 m self-priming suction keeps wear service a quick cover swap.
- Flameproof configuration is selected for diesel-transfer work in the listed hazardous-area applications.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 290 L/Min |
| Max Head | 16 m |
| Power | 0.75 kW / 415v |
| Suitable For | Heating Oil Transfer |
| Body Material | Cast Iron |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What explosion safety certifications equip this pump for volatile chemical environments during solvent and fuel decanting?
Built for hazardous atmospheres, the Aussie Pumps ATEX Electric Explosion-Proof B1.5KQ-A/ATEX (GB1.5KQ-A-ATEX3P) incorporates a certified flameproof terminal box and motor frame to stop ignition of surrounding gases.
What type of electrical supply is needed to run the drive motor on site within outdoor switchboard setups?
Incoming electrical supply operates the GB1.5KQ A ATEX3P through an electric motor delivering 0.75 kW 415V 3-Phase.
What open discharge throughput and maximum dynamic head are rated under full operating speed?
Discharge performance for the GB1.5KQ-A/ATEX3P yields an open flow volume of approximately 290 L/min and reaches a maximum shut-off elevation of approximately 16 m.
How do the internal recirculation channels achieve rapid priming from deep excavations once the casing is charged?
Built-in priming passages on the GB1.5KQ-A/ATEX3P draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
Can this semi trash pump pass slurry debris and spherical particles freely in everyday paddock dewatering?
Equipped with an open cast iron semi-trash impeller geometry, the B1.5KQ-A/ATEX (GB1.5KQ-A/ATEX3P) clears solid matter up to 8.5 mm in diameter without jamming internal channels.
