SKU: GB1.5KQ-A/ST 1P

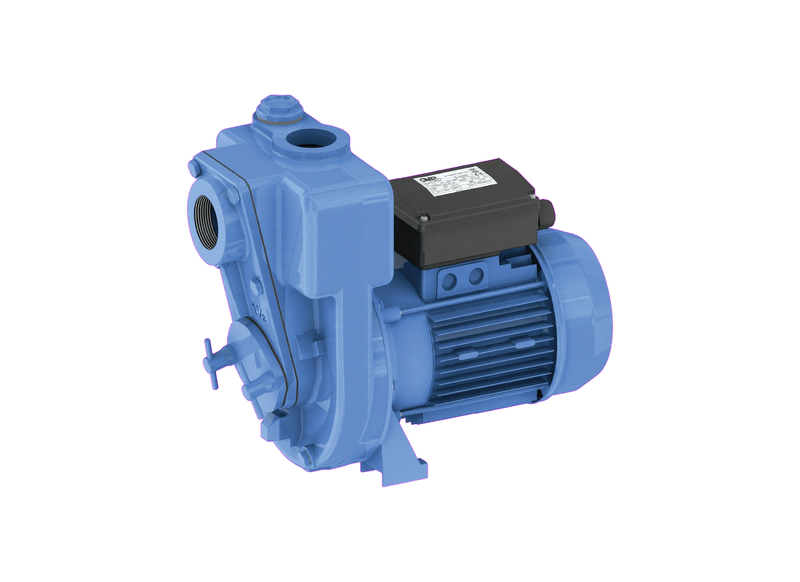

Aussie Pumps GMP GB1.5KQ-A/ST 1P Cast Iron 0.75kW Single Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Commercial wash-down bays, livestock sumps, and food processing plants utilize the Aussie GMP B1.5KQ-A/ST (GB1.5KQ-A/ST 1P) for proven debris transfer. The close-coupled footprint allows straightforward integration into constrained factory plant rooms.
Fluid displacement reaches an open-discharge flow of 270 L/min at zero head and produces a maximum shut-off head of 15 m (21 PSI) at zero flow. An open non-clog cast iron impeller passes spherical and compressible suspended debris up to 11 mm in diameter cleanly.
Drive power comes from a 0.75 kW single-phase 240 V TEFC electric motor with IP54 protection, supplied unwired without a lead or plug for hardwired isolator connection. Centrifugal self-priming suction pulls waste from 6 m vertical depths without requiring a foot valve.
Hard silicon carbide mechanical seal faces with an alumina counterface tolerate intermittent liquid temperatures up to 70°C. An integrated front clean-out port enables rapid volute de-clogging without pipe disassembly. Protected by Aussie Pumps 3-year GMP warranty.
Features- Dedicated 0.75 kW single-phase 240 V TEFC electric motor with IP54 enclosure rating.
- Open non-clog cast impeller handles spherical and compressible solids up to 11 mm.
- Hydraulic delivery achieves up to 270 L/min open discharge with 15 m shut-off head.
- Centrifugal self-priming casing pulls liquid from vertical depths down to 6 m.
- Cast iron body fitted with 316 stainless steel shaft and stainless wear plate.
- Front clean-out hatch enables swift chamber inspection without pipe decoupling.
- Protected by Aussie Pumps 3-year commercial GMP pump warranty coverage.
SPECIFICATIONS
| Max Flow | 270 L/Min |
| Max Head | 15 m |
| Power | 0.75 kW / 240v |
| Suitable For | Dairy Effluent |
| Body Material | Cast Iron |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What size spherical solids can pass through the impeller without creating clogs?
The open cast iron impeller on the Aussie Pumps GMP Semi-Trash B1.5KQ-A/ST (GB1.5KQ-A/ST 1P) allows spherical solids up to 11 mm in diameter to pass freely without choking internal water passages.
What electrical power supply and phase configuration drive the motor?
Shaft propulsion for the GB1.5KQ-A/ST 1P is supplied by a single-phase electric motor rated at 0.75 kW, operating on 240 V line power within an IP54 weatherproof enclosure.
What maximum delivery volume and vertical elevation head does this pump produce?
Hydraulic output for the GB1.5KQ-A-ST-1P delivers a maximum volume of approximately 270 L/min and achieves a maximum elevation head of approximately 15 m across its performance curve.
From what vertical intake depth can this unit draw liquid without pre filling lines?
Built-in priming passages on the GB1.5KQ A ST 1P draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
How does the front inspection cover simplify clearing debris from the wet end?
A removable front cleanout hatch on the B1.5KQ-A/ST (GB1.5KQ-A/ST 1P) unbolts swiftly to clear trapped debris directly from the impeller eye without uncoupling connected pipework.
