SKU: GB1.5KQA/ST3PS2

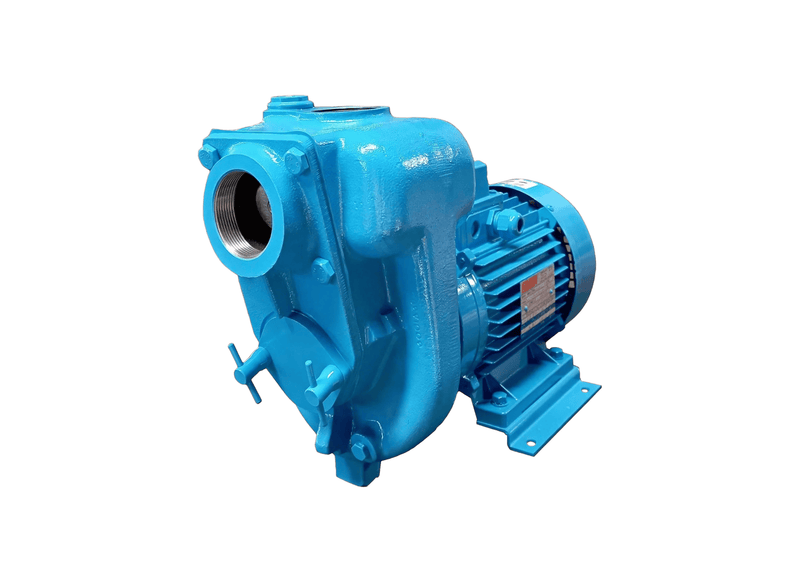

Aussie Pumps GMP GB1.5KQA/ST3PS2 Cast Iron 0.75kW Three Phase Series 2 Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Quarry processing plants and chemical batching facilities utilize the Aussie GMP B1.5KQ-A/ST Series 2 pump on three-phase mains power lines. Integral motor base feet absorb running torque, preventing mechanical misalignment across fixed pipework.
Waterway throughput develops up to 270 L/min open discharge at zero elevation and builds a 15 m (21 PSI) shut-off head at zero flow. The heavy cast iron volute encloses an open non-clog impeller capable of passing suspended compressible solids up to 11 mm cleanly.
Three-phase power is delivered by an industrial 0.75 kW 415 V TEFC motor with IP55 ingress protection, supplied unwired without a lead or plug for control panel hardwiring. Centrifugal self-priming action draws fluid from 6 m vertical depths without a foot valve.
Shock-absorbing silicon carbide mechanical seal faces with an alumina counterface resist abrasive slurry wear at fluid temperatures up to 70°C. Front inspection covers allow fast chamber clearing without decoupling 1.5" pipes. Backed by Aussie Pumps 3-year warranty.
Features- Continuous three-phase 415 V 0.75 kW TEFC motor with IP55 protection for severe plant duty.
- Series 2 structural motor base feet dampen vibration across fixed installations.
- Delivers 270 L/min open discharge volume with maximum shut-off head of 15 m (21 PSI).
- Handles suspended compressible waste and spherical particles up to 11 mm.
- Picks up prime from vertical suction depths up to 6 m without an intake foot valve.
- Front-mounted clean-out port streamlines volute servicing without disconnecting pipes.
- Supported by Aussie Pumps 3-year commercial GMP pump warranty coverage.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of electrical supply is needed to run the drive motor on site?
Mechanical power on the Aussie Pumps GMP Semi-Trash B1.5KQ-A/ST (GB1.5KQA/ST3PS2) is delivered by a three-phase electric motor generating 0.75 kW on 415 V line supply, enclosed in an IP55 terminal casing.
How quickly can site operators access the impeller to remove tangled obstructions?
The front inspection cover on the GB1.5KQA/ST3PS2 unbolts without tools or special wrenches, providing instant access to the impeller eye without disturbing site pipework.
How deep can this self priming pump draw water from underground sumps and trenches?
Operating with built-in priming dynamics, the GB1.5KQA-ST3PS2 draws water from vertical depths up to 6 m without an external foot valve.
What fluid throughput per minute and elevation height are rated for this unit?
The hydraulic wet end of the GB1.5KQA ST3PS2 produces a maximum fluid throughput of approximately 270 L/min while reaching a maximum vertical shut-off head of approximately 15 m.
What warranty protection and replacement parts support back this equipment in Australia?
The wet end of the B1.5KQ-A/ST (GB1.5KQA/ST3PS2) is backed by an Aussie Pumps three-year casing warranty, supported by regional spare parts stockists across Australia.
