SKU: GB1.5ZPM-A 7.5

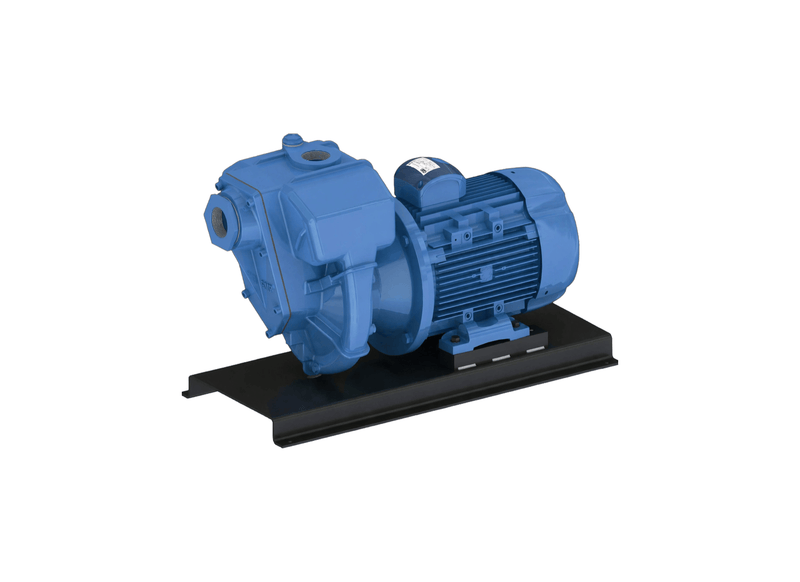

Aussie Pumps GMP GB1.5ZPM-A 7.5 Cast Iron Three Phase High-Head Transfer Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Broadacre spray irrigation, long-distance fluid boosting, and factory pressure wash systems deploy the Aussie GMP B1½ZPM-A* . Its structural channel-steel foundation absorbs continuous hydraulic thrust across high-elevation pipeline networks.
Extra-high-pressure throughput develops a 58.5 m (83 PSI) shut-off head at zero flow, working alongside an open-flow rate of 600 L/min at zero head. A close-grained cast iron volute houses an enclosed high-head impeller that handles small solids up to 6 mm cleanly.
Motoring power is delivered by a 7.5 kW three-phase 415 V TEFC two-pole electric motor rated to IP55, supplied unwired without a lead or plug for panel isolator integration. The self-priming chamber pulls clean water from 6 m vertical depths without a foot valve.
Hydraulic wear protection includes a replaceable suction port and 316 stainless motor shaft handling liquid temperatures up to 70°C safely. The 2-inch suction and 1.5-inch discharge minimize line friction. Covered under Aussie Pumps 3-year commercial GMP warranty.
Features- Extra-high-pressure performance generating up to 58.5 m maximum shut-off head (83 PSI).
- Delivers high-velocity fluid throughput reaching 600 L/min open discharge.
- Industrial 7.5 kW three-phase 415 V TEFC two-pole motor rated for continuous plant duty with IP55 rating.
- Self-primes rapidly from vertical suction depths up to 6 m without a foot valve.
- Structural structural steel base plate delivers motor alignment and dampens operational vibration.
- Close-grained cast iron body fitted with a 316 stainless steel drive shaft and high-head impeller.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 58 m |
| Power | 7.5 kW / 415v |
| Suitable For | Pressure Boosting |
| Body Material | Cast Iron |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this single stage pump generate fifty eight metres of head pressure?
A high-diameter precision-machined impeller on the Aussie Pumps GMP High Head Semi-Trash B1.5ZPM-A (GB1.5ZPM-A 7.5) generates high centrifugal velocity to overcome steep elevation rises in a single stage.
What electrical power platform operates the close coupled motor drive?
Propulsion for the GB1.5ZPM-A 7.5 is delivered by a three-phase electric motor generating 7.5 kW on 415 V line supply, enclosed in an IP55 sealed casing.
How is the pump secured to site foundations or mobile machinery skids?
A structural steel base plate supports the GB1.5ZPM-A-7.5, supports the 111 kg package, allowing secure bolting onto concrete pads or vehicle decks.
What diameter solids can travel through the internal passages during effluent transfer?
Internal passages on the GB1.5ZPM A 7.5 clear suspended solid particles and slurry grit up to 6 mm in diameter without causing internal impeller binding.
How much fluid volume and static head are generated by the wet end?
Hydraulic output for the B1.5ZPM-A (GB1.5ZPM-A 7.5) delivers a maximum volume of approximately 600 L/min and develops a maximum dynamic head of approximately 58 m.
