SKU: GB1KQ-A/0.5KW-1P

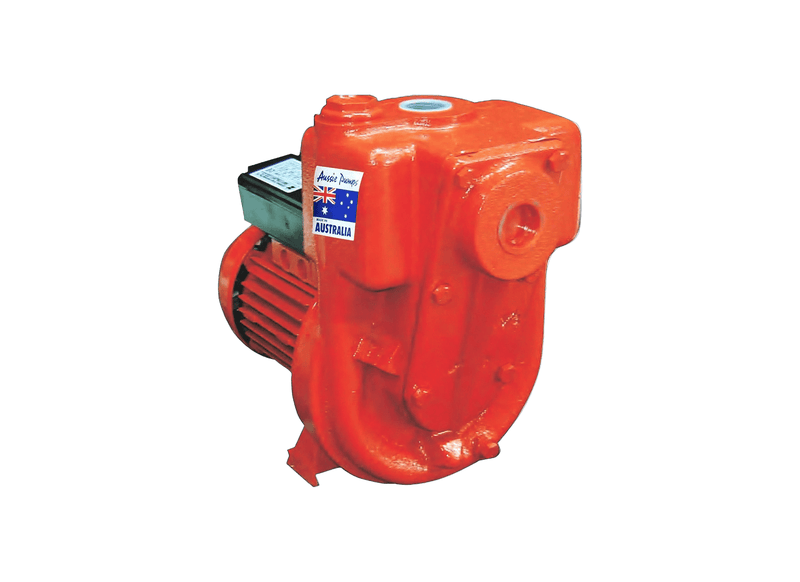

Aussie Pumps GMP GB1KQ-A/0.5KW-1P Single Phase 1" Ports Oil and Diesel Fuel Transfer Pump with Viton Seals
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Farm workshops and remote depots with only a single-phase outlet refuel heavy plant through this 240 V fuel-transfer pump, moving up to 130 litres a minute of diesel or oil without three-phase infrastructure. Shed power is enough. Shed-powered plant refuelling uses GB1KQ-A/0.5KW-1P on single-phase 240 V outlets.
Delivery peaks at 130 L/min open flow with shut-off at 14 m (20 PSI) of head. Viton seals come fitted as standard for hydrocarbon duty, plumbed through 1" x 1" ports.
Economical motive power comes from a 0.55 kW single-phase 240 V drive that runs from shed supply, keeping remote-depot refuelling free of three-phase infrastructure. Hydrocarbon duty runs through Viton seals as standard in 1-inch porting, with open ventilated areas the rated location given no ATEX certification.
This pump is intended for high-flow field refuelling of dump trucks and crawler tractors. The application suits mobile service arrangements, depot work and equipment support locations where diesel or oil must be moved efficiently into heavy plant during day-to-day operations.
Features
- Shed-supply 0.55 kW 240 V single-phase drive runs economically from ordinary workshop outlets.
- Open discharge of 130 L/min, shutting off at 14 m (20 PSI) keeps heavy plant fuelled remotely.
- Standard Viton sealing handles oil and diesel transfer without upgrade costs or delays.
- Compact 1-inch refuelling porting fits depots, sheds and remote installations without modification.
- Ventilated-area rating applies, as the pump is not ATEX certified for hazardous zones.
- Remote-depot brief covers dump trucks and crawler tractors across all field systems.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 130 L/Min |
| Max Head | 14 m |
| Power | 0.55 kW / 240v |
| Suitable For | Crawler Tractors |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many litres per minute and vertical metres can this fuel transfer wet end deliver?
Hydraulic output for the Aussie Pumps Electric Fuel B1KQ-A (GB1KQ-A-0.5KW-1P) delivers a maximum volume of approximately 130 L/min and achieves a maximum elevation head of approximately 14 m across its operating curve.
What spherical particle size is accommodated through the impeller waterways during fuel dispensing?
The GB1KQ A 0.5KW 1P transfers clean oil and diesel fuel through a nickel-aluminium bronze wet end with Viton seals and carries no solids-handling rating.
What electrical power supply and phase configuration drive this workshop fuel pump motor?
Shaft propulsion for the GB1KQ-A/0.5KW-1P is supplied by an electric motor rated at 0.5 kW 240V 1-Phase, built for connection to standard workshop outlets.
Can the casing self prime from below ground fuel tanks without an auxiliary check valve?
No foot valve is needed on the GB1KQ-A/0.5KW-1P with a self-priming lift of up to 6 m once the casing is filled.
How does the Viton mechanical seal resist chemical breakdown from diesel and oil during depot dispensing?
A Viton mechanical seal paired with carbon-ceramic faces on the B1KQ-A (GB1KQ-A/0.5KW-1P) isolates the drive shaft, resisting hydrocarbon degradation during diesel and lubricant dispensing.
