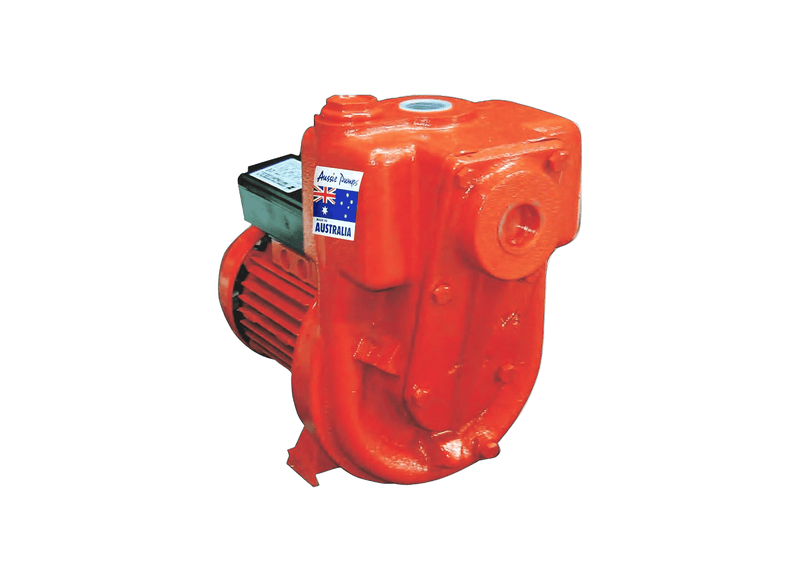

Aussie Pumps GMP GB1KQ-A.5KW 3P Three Phase 1" Ports Oil and Diesel Fuel Transfer Pump with Viton Seals
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Fixed refuelling bays wired for 415 V standardise on this three-phase fuel-transfer pump, holding up to 130 litres a minute ready across dump-truck and tractor fleets. Balanced three-phase draw suits depot switchboards. Fixed-bay fleet refuelling standardises on GB1KQ-A.5KW 3P for 415 V installations.
Open flow reaches 130 L/min, shutting off at 14 m head (20 PSI). The oil/diesel wet end carries Viton seals as standard, connected through 1" x 1" suction and discharge.
Steady torque for continuous bay duty flows from the 0.55 kW three-phase 415 V drive, balanced for depot switchboards and fixed refuelling installations. The 1-inch suction and discharge keep bay pipework compact, while Viton seals handle hydrocarbons as standard in ventilated, non-classified areas.
Use this compact pump in high-flow field-refuelling systems serving dump trucks and crawler tractors. It is suited to transferring diesel or oil at service points, workshops and remote locations where heavy plant requires reliable refuelling between working shifts.
Features
- Switchboard-balanced 0.55 kW 415 V three-phase drive gives steady torque for continuous bay duty.
- Maximum flow of 130 L/min, shutting off at 14 m (20 PSI) holds fleets ready across shifts.
- Hydrocarbon-resistant Viton seals come as standard for continuous oil and diesel service.
- Bay-compact 1-inch pipework connections keep fixed installations neat and easily serviceable always.
- Non-classified ventilated installation is the rating, since the unit is not ATEX certified for hazardous areas.
- Fixed-bay brief serves fleet dump trucks and tractors from permanent refuelling points.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 130 L/Min |
| Max Head | 14 m |
| Power | 0.55 kW / 415v |
| Suitable For | High-Flow Field Refuelling Systems |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What open discharge throughput and maximum dynamic head are rated through connected fuel piping?
Under full operating speed, the Aussie Pumps Electric Fuel B1KQ-A (GB1KQ-A.5KW-3P) generates a maximum fluid displacement rate of approximately 130 L/min and reaches a maximum shut-off head of approximately 14 m.
What diameter solid matter can flow through the internal waterways without stalling the wet end during oil transfer?
The GB1KQ A.5KW 3P transfers clean oil and diesel fuel through a nickel-aluminium bronze wet end with Viton seals and carries no solids-handling rating.
Which line voltage and motor power rating operate this three phase fuel pump?
Incoming electrical supply powers the GB1KQ-A.5KW 3P through an electric motor delivering 0.5 kW across balanced 415V three-phase depot circuits.
What vertical suction lift does the self priming mechanism achieve across dry starts during fuel decanting?
Operating with built-in priming dynamics, the GB1KQ-A.5KW 3P draws fuel from vertical depths up to 6 m without external priming equipment.
Why is a Viton mechanical seal specified for fixed bay refueling and hydrocarbon dispensing?
Internal shaft sealing on the B1KQ-A (GB1KQ-A.5KW 3P) is provided by a Viton mechanical seal, chosen specifically for chemical tolerance around petroleum hydrocarbons and fuels.
