Roll over image to zoom
SKU: GB1KQ-A/B 0.371P

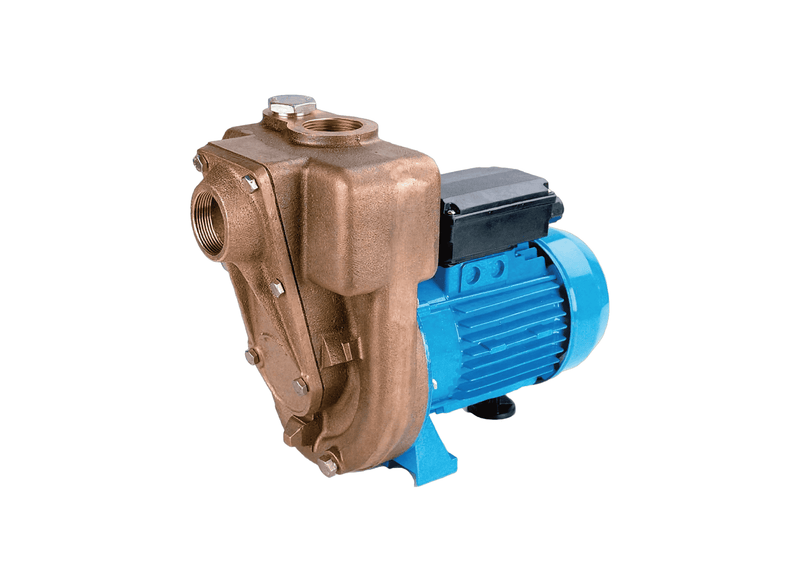

Aussie Pumps GMP GB1KQ-A/B 0.371P Nial Bronze 1" Ports Single Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Compact marina berths and trailer-boat bilges get a corrosion-proof dewatering answer in this 1-inch bronze unit, sized for tight engine compartments where a full-size pump simply cannot sit. Its close-coupled single-phase motor keeps installation to a simple bolt-down and wire-in. Order this compact unit under part number GB1KQ-A/B 0.371P for single-phase installations.
Open-discharge delivery tops 130 L/min at zero static head, with a 12 m (17 PSI) shut-off ceiling at zero flow. The heavy-duty cast nickel-aluminium bronze wet end, built to Mil-Spec equivalent standard, carries a large open bronze impeller that passes solids to 6 mm, sealed by a carbon/alumina mechanical seal with nitrile elastomers in a 316 stainless casing.
Standard 240 V outlets are all the power this compact unit asks for, feeding a 0.37 kW single-phase motor sealed to IP54 and shipped without lead or plug for direct switchboard wiring. Suction arrives through 1-inch ports with 6 m of self-priming lift, and wear concentrates on the replaceable suction cover by design.
Marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning duties place this unit where working boats need one pump to cover routine water management as well as emergency clearing. It suits washdown plumbing, bilge service and salvage work across commercial and recreational vessels. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- The 0.37 kW single-phase 240 V motor runs from standard outlets and wires direct to the switchboard with no lead supplied.
- Open flow of 130 L/min, shutting off at 12 m (17 PSI), giving compact bilge and washdown installations real capability.
- Every wetted part, from casing through impeller to suction cover, is cast in Mil-Spec equivalent nickel-aluminium bronze.
- The large open bronze impeller passes solids to 6 mm, so bilge debris and shell grit will not choke the pump.
- Self-priming suction lifts 6 m unaided, allowing the pump to sit above the waterline in tight compartments.
- AdBlue and chemical transfer become possible by specifying optional Viton seals at order.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 130 L/Min |
| Max Head | 12 m |
| Power | 0.37 kW / 240v |
| Suitable For | Salvage Pumping |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak delivery volume and vertical elevation head does this pump produce across open site lines?
Operating across its performance curve, the Aussie Pumps Bronze Electric Transfer B1KQ-A/B (GB1KQ-A-B-0.371P) discharges a maximum flow rate of approximately 130 L/min and develops a maximum elevation head of approximately 12 m.
What size spherical solids can pass through the impeller without creating clogs during dirty liquid transfer?
An open non-clog nickel-aluminium bronze impeller on the GB1KQ A B 0.371P passes spherical solids and debris up to 6 mm in diameter without choking internal water passages.
What electrical power supply and phase configuration drive the motor during fixed installation wiring?
The close-coupled electric drive on the GB1KQ-A/B 0.371P operates with a motor rated at 0.37 kW 240V 1-Phase, providing steady operating torque across site duties.
From what vertical intake depth can this unit draw liquid without pre filling lines during everyday operations?
Vertical suction capability on the GB1KQ-A/B 0.371P reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How does cast nickel aluminium bronze protect the pump wet end from aggressive saltwater across marine operating environments?
Seawater corrosion resistance on the B1KQ-A/B (GB1KQ-A/B 0.371P) is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
