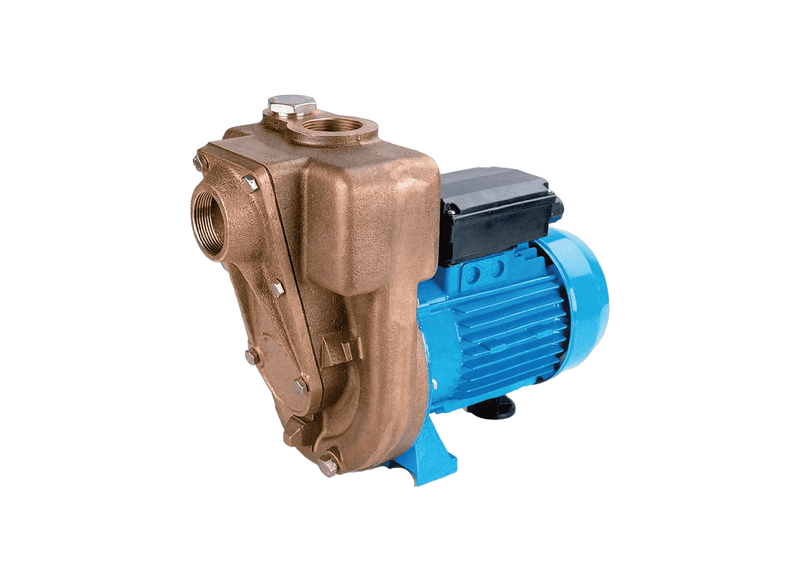

Aussie Pumps GMP GB1KQ-A/B 0.373P Nial Bronze 1" Ports Three Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Three-phase jetties, fish-farm platforms and commercial workboats draw balanced-load dewatering from this 415 V bronze pump, pulling equally across all phases while shrugging off salt spray. The 1-inch frame fits neatly beside bait tanks and live wells. Three-phase buyers should specify GB1KQ-A/B 0.373P when ordering for 415 V boards.
Hydraulic output reaches 130 L/min open discharge with a maximum shut-off head of 12 m (17 PSI). Cast nickel-aluminium bronze to Mil-Spec equivalent standard forms the casing and large open impeller, clearing solids up to 6 mm, while the carbon-with-alumina mechanical seal runs in nitrile with a 316 stainless steel casing.
Wired across three 415 V phases for balanced draw, the 0.37 kW IP54 motor arrives lead-free for contactor connection in commercial boards. Twin 1-inch connections prime from 6 m below the pump, while the bolt-off suction cover absorbs abrasion instead of the volute.
This pump is intended for marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning circulation. Those duties cover regular deck cleaning, bilge clearing and onboard water movement, making it a practical fit for workboats, tenders, fishing vessels and marina service installations. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Balanced three-phase draw from the 0.37 kW 415 V motor suits commercial switchboards, protected to IP54 against damp air.
- Hydraulic delivery reaches 130 L/min open flow, shutting off at 12 m (17 PSI) for workboat dewatering duty.
- Mil-Spec equivalent nickel-aluminium bronze forms the complete wet end for saltwater corrosion resistance.
- Debris to 6 mm clears the large open impeller easily, keeping bilge pumping reliable between services.
- Six metres of self-priming suction through 1-inch waterways permit above-water mounting beside tanks and wells.
- Fuel and chemical versatility follows the Viton seal option for operators handling varied cargoes.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 130 L/Min |
| Max Head | 12 m |
| Power | 0.37 kW / 415v |
| Suitable For | Marine Air Conditioning |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does cast nickel aluminium bronze protect the pump wet end from aggressive saltwater without suffering pitting corrosion?
The bronze wet end of the Aussie Pumps Bronze Electric Transfer B1KQ-A/B (GB1KQ-A-B-0.373P) suits marine environments.
What electrical power supply and phase configuration drive the motor within outdoor switchboard setups?
Incoming electrical supply operates the GB1KQ A B 0.373P through an electric motor delivering 0.37 kW 415V 3-Phase.
What peak delivery volume and vertical elevation head does this pump produce through connected piping?
Discharge performance for the GB1KQ-A/B 0.373P yields an open flow volume of approximately 130 L/min and reaches a maximum shut-off elevation of approximately 12 m.
From what vertical intake depth can this unit draw liquid without pre filling lines once the casing is charged?
Built-in priming passages on the GB1KQ-A/B 0.373P draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What size spherical solids can pass through the impeller without creating clogs when pumping slurry runoff?
Spherical debris up to 6 mm in size clears the non-clog nickel-aluminium bronze impeller on the B1KQ-A/B (GB1KQ-A/B 0.373P) without obstructing discharge flow.
