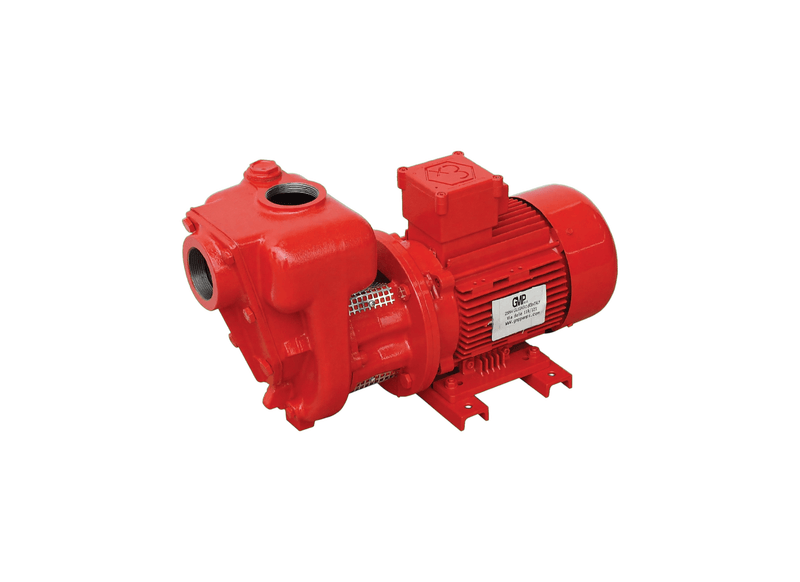

Aussie Pumps GMP GB2KQ-A ATEX240 Flameproof Single Phase 2" Ports Diesel Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Underground mines and single-phase depot sheds shift diesel in volume with this 2-inch flameproof transfer pump, delivering up to 440 litres a minute off a 240 V outlet inside hazardous classifications. Big-pipe flow without three-phase infrastructure. Underground and depot shuttle duty specifies GB2KQ-A ATEX240 for single-phase 240 V outlets.
Open flow peaks at 440 L/min, shutting off at 19 m head (27 PSI), measured on fresh-water viscosity liquids. Heavy-duty cast construction with a replaceable suction cover carries a big open impeller that clears 16 mm solids, sealed by Viton/carbon/alumina as standard.
Single-phase 240 V supply is enough for the 1.5 kW flameproof motor, ATEX-certified and IP55-sealed for underground and depot atmospheres. Tote, drum and day-tank stations connect through 2-inch ports that prime unaided from 6 m, shedding wear onto the unbolting suction cover.
The application set covers diesel and fuel-oil transfer in hazardous environments, with machinery, marine diesel, earth movers, mining plant and generator refuelling all included. It is also listed for heating-oil transfer and waste-oil collection at fixed facilities or mobile maintenance locations.
Features
- Underground-rated 1.5 kW 240 V single-phase ATEX motor with IP55 sealing works safely in mine atmospheres.
- Open discharge of 440 L/min, shutting off at 19 m (27 PSI) moves real volume on shed power.
- Station-ready 2-inch ports with 16 mm solids passage handle tote, drum and day-tank transfer.
- Triple-element Viton, carbon and alumina sealing comes standard for hydrocarbon duty without upgrade costs.
- Unbolting wear cover with unaided 6 m self-priming keeps the pump serviceable underground.
- Flameproof configuration is selected for diesel-transfer work in the listed hazardous-area applications.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 440 L/Min |
| Max Head | 19 m |
| Power | 1.5 kW / 240v |
| Suitable For | Heating Oil Transfer |
| Body Material | Cast Iron |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How do the internal recirculation channels achieve rapid priming from deep excavations across unflooded suction setups?
Built-in priming passages on the Aussie Pumps ATEX Electric Explosion-Proof B2KQ-A/ATEX (GB2KQ-A-ATEX240) draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What open discharge throughput and maximum dynamic head are rated across long transfer runs?
Across open pipeline runs, the GB2KQ A ATEX240 pushes fluid at a maximum throughput of approximately 440 L/min while attaining a shut-off head ceiling of approximately 19 m.
Can this semi trash pump pass slurry debris and spherical particles freely across high volume transfer lines?
The open vane cast iron impeller on the GB2KQ-A ATEX240 clears dirty site runoff and solid debris up to 16 mm in diameter without stalling the shaft.
What explosion safety certifications equip this pump for volatile chemical environments without posing spark ignition risks?
Certified explosion-proof motor construction equips the GB2KQ-A ATEX240 to transfer fuels, solvents, and volatile liquids safely within classified zones.
What type of electrical supply is needed to run the drive motor on site without requiring phase converters?
Incoming electrical supply operates the B2KQ-A/ATEX (GB2KQ-A ATEX240) through an electric motor delivering 1.5 kW 240V 1-Phase.
