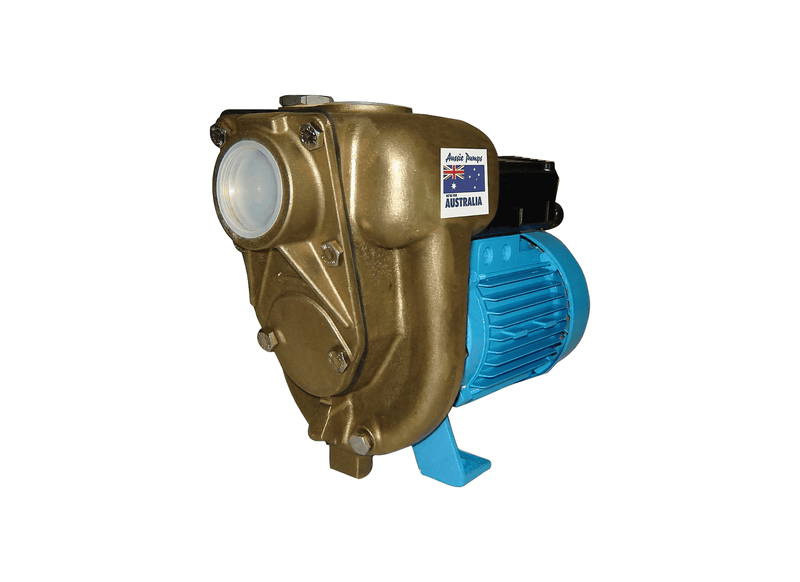

Aussie Pumps GMP GB2KQ-A/B2.23PS2 Nial Bronze 2" Ports Three Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Engine rooms with 415 V distribution feed this three-phase 2-inch bronze pump straight off the board, giving trawlers and ferries a hard-wired dewatering station that never competes with galley loads. IP55 sealing stands up to hose-down compartments. Catalogued as GB2KQ-A/B2.23PS2, the three-phase 2-inch unit suits 415 V engine rooms.
Delivery spans 450 L/min at open discharge up to a 19 m (27 PSI) shut-off head. Heavy-duty cast nickel-aluminium bronze to Mil-Spec equivalent standard shapes casing and large open impeller for 16 mm solids, with a carbon/alumina seal, nitrile rubber and 316 stainless casing holding the pressure.
IP55 sealing around the 2.2 kW three-phase 415 V motor stands up to hose-down compartments, and the lead-free supply suits contactor wiring for hard-wired dewatering stations. Priming holds to 6 m through 2-inch ports, with the replaceable cover taking wear instead of the casing.
Marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning duties place this unit where working boats need one pump to cover routine water management as well as emergency clearing. It suits washdown plumbing, bilge service and salvage work across commercial and recreational vessels. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Washdown-proof IP55 enclosure on the 2.2 kW 415 V three-phase motor withstands hose-down compartments and wet decks.
- Open flow of 450 L/min, shutting off at 19 m (27 PSI) feeds hard-wired dewatering stations continuously.
- Cast bronze to Mil-Spec equivalent standard shapes both casing and trash-capable open impeller.
- Bilge debris to 16 mm passes without blocking, protecting the pump from typical floating waste.
- Vertical self-priming of 6 m pairs with a wear-taking suction cover that sacrifices itself to save the volute.
- AdBlue and chemicals join the duty list when Viton seal variants are fitted.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 19 m |
| Power | 2.2 kW / 415v |
| Suitable For | Bilge Pump-Out |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is site electricity connected to run this electric pump package during fixed installation wiring?
Electric power drives the Aussie Pumps Bronze Electric Transfer B2KQ-A/B (GB2KQ-A-B2.23PS2) via a close-coupled unit rated at 2.2 kW 415V 3-Phase, wired into fixed switchboard connections.
How does cast nickel aluminium bronze protect the pump wet end from aggressive saltwater across coastal workboat duties?
Cast nickel-aluminium bronze metallurgy on the GB2KQ A B2.23PS2 resists aggressive saltwater corrosion across marine decks, bilges, and oyster leases.
From what vertical intake depth can this unit draw liquid without pre filling lines when drafting from deep sumps?
Automatic priming action on the GB2KQ-A/B2.23PS2 drafts liquid from vertical depths down to 6 m without needing a foot valve.
What size spherical solids can pass through the impeller without creating clogs during routine excavation drainage?
The open vane nickel-aluminium bronze impeller on the GB2KQ-A/B2.23PS2 clears dirty site runoff and solid debris up to 16 mm in diameter without stalling the shaft.
What peak delivery volume and vertical elevation head does this pump produce across long transfer runs?
At peak operational capacity, the wet end of the B2KQ-A/B (GB2KQ-A/B2.23PS2) produces up to approximately 450 L/min in open flow and reaches a maximum elevation head of approximately 19 m.
