SKU: GB2KQ-A/X 2.2 1P

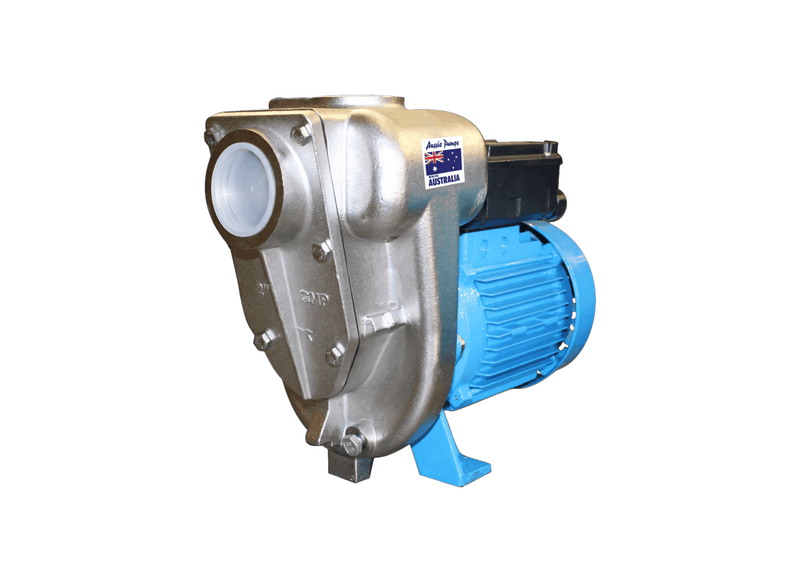

Aussie Pumps GMP GB2KQ-A/X 2.2 1P Stainless Steel Single Phase Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Chemical batching plants, agricultural acid lines, and AdBlue® transfer stations deploy the Aussie GMP B2KQ-A/X on standard single-phase mains power. Full cast large stainless steel metallurgy delivers complete defense against solids-laden fluids.
Corrosive fluid movement reaches an open-discharge flow of 440 L/min at zero static head, accompanied by a 20 m (28 PSI) shut-off head at zero flow. A large open 316 stainless steel impeller processes corrosive particulate and abrasive slurry solids up to 16 mm cleanly.
Motoring drive is provided by a 2.2 kW single-phase 240 V TEFC motor rated to IP54, supplied unwired without a cord for direct workshop wiring. The self-priming casing pulls solids-laden chemicals from 6 m vertical depths without requiring an intake foot valve.
Replaceable 316 stainless steel suction covers shield the volute from abrasive wear at fluid temperatures up to 70°C intermittently. The 316 SS-encased mechanical seal resists chemical attack. Supported nationwide by Aussie Pumps 3-year commercial warranty.
Features- Complete cast 316 stainless steel pump body and open impeller resist harsh chemical corrosion.
- Single-phase 240 V 2.2 kW TEFC electric motor suitable for standard workshop and farm power.
- Moves up to 440 L/min open discharge volume with a 20 m maximum shut-off head (28 PSI).
- Processes solids-laden suspended solids and industrial slurry up to 16 mm without choking.
- Centrifugal self-priming casing pulls prime from vertical suction depths up to 6 m.
- Replaceable 316 stainless steel suction cover houses volute from abrasive wear.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 440 L/Min |
| Max Head | 20 m |
| Power | 2.2 kW / 240v |
| Suitable For | Chemical Transfer |
| Body Material | 316 Stainless Steel |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What chemical solutions and process fluids can this stainless pump transfer?
Cast AISI 316 stainless steel construction on the Aussie Pumps GMP 316 Stainless Steel ATEX Semi-Trash B2KQ-A/X (GB2KQ-A/X 2.2 1P) resists attack from acids, solvents, fertilizer solutions, AdBlue, and corrosive wastewater.
What peak water throughput and maximum delivery elevation can this unit reach?
Peak hydraulic output for the GB2KQ-A/X 2.2 1P provides up to approximately 440 L/min in delivery volume and develops a maximum elevation pressure head of approximately 20 m.
What explosion safety certifications equip this pump for volatile chemical environments?
The electric motor on the GB2KQ-A-X-2.2-1P features certified flameproof architecture with an IP54 enclosure, enabling safe operation in hazardous vapor zones.
From what vertical intake level can the self priming volute draft site water?
The self-priming chamber of the GB2KQ A X 2.2 1P pulls liquid vertically from depths up to 6 m without needing a foot valve once the volute is filled.
What particle dimensions can travel through the semi trash volute without jamming?
The open stainless steel impeller on the B2KQ-A/X (GB2KQ-A/X 2.2 1P) passes suspended chemical precipitates and spherical particles up to 16 mm in diameter without stalling.
