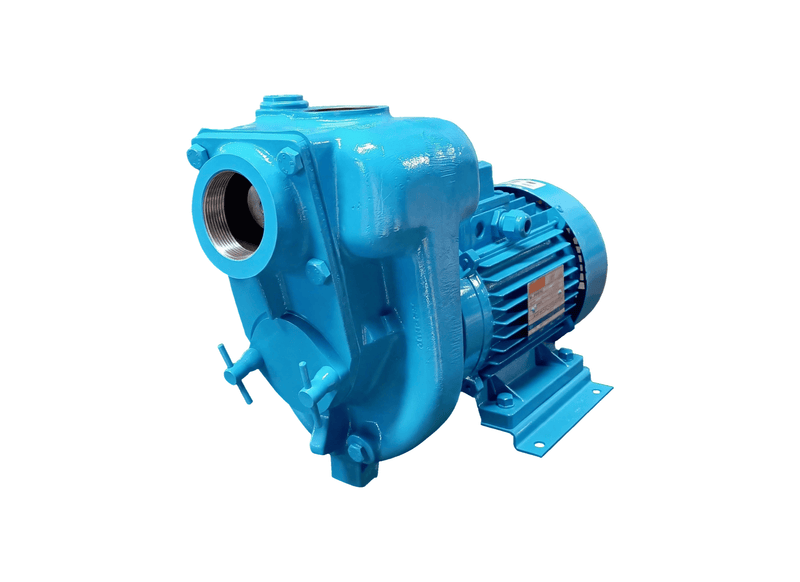

Aussie Pumps GMP GB2KQA/ST2.21PS2 Cast Iron Single Phase Series 2 Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Industrial wash bays, machinery sheds, and dairy effluent pits benefit from the large-inch Aussie GMP B2KQ-A/ST Series large unit on standard single-phase power. Dedicated motor mounting feet provide strong foundation stability on concrete pads.
Pumping delivery reaches an open-flow capacity of 440 L/min at zero static head, accompanied by an 18 m (26 PSI) maximum shut-off head at zero discharge. Its open non-clog cast impeller processes spherical and compressible suspended debris up to 19 mm with ease.
Rotational drive is supplied by a high-torque 2.2 kW single-phase 240 V TEFC electric motor rated to IP54, supplied unwired without a lead for permanent switchboard installation. The self-priming wet end lifts wastewater from 6 m vertical depths without a foot valve.
Wear-resistant cast iron metallurgy features a 316 stainless motor shaft, stainless wear plate, and silicon carbide mechanical seal rated to 70°C liquid temperatures intermittently. A front clean-out hatch allows swift clearing. Backed by Aussie Pumps 3-year warranty.
Features- High-torque 2.2 kW single-phase 240 V TEFC electric motor with IP54 enclosure rating.
- Large 19 mm spherical and compressible solid handling capability via an open trash impeller.
- Moves up to 440 L/min open discharge fluid volume with an 18 m shut-off head (26 PSI).
- Series 2 frame incorporates cast motor base feet for enhanced structural structurality.
- Vertical self-priming suction lift draws effluent from 6 m depths without priming aids.
- Front inspection clean-out cover streamlines solid removal without pipe dismantling.
- Protected by Aussie Pumps 3-year commercial GMP pump warranty coverage.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 19 m |
| Power | 2.2 kW / 240v |
| Suitable For | Abattoir Waste |
| Body Material | Cast Iron |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid volume can the wet end displace every minute, and what elevation does it reach?
Under full operating speed, the Aussie Pumps GMP Semi-Trash B2KQ-A/ST (GB2KQA/ST2.21PS2) generates a maximum fluid displacement rate of approximately 450 L/min and reaches a maximum elevation head of approximately 19 m.
How is this pump package mounted and secured to plant floors or equipment skids?
Cast rigid mounting feet on the GB2KQA/ST2.21PS2 under the motor frame bolt securely onto concrete floors or steel skids, stabilizing the 31.5 kg assembly against vibration.
Can this semi trash pump pass slurry debris and spherical particles?
For the GB2KQA-ST2.21PS2, equipped with an open semi-trash impeller, the wet end clears solid matter up to 19 mm across without jamming internal channels.
How is the electric motor configured regarding incoming voltage and phase supply?
An electric motor rated at 2.2 kW drives the GB2KQA ST2.21PS2, operating on a single-phase 240 V electrical hookup with an IP54 weatherproof enclosure.
What vertical suction capability is available when drafting water from storage pits?
Vertical suction capability on the B2KQ-A/ST (GB2KQA/ST2.21PS2) reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
