SKU: GB2KQA/X2.23PS2

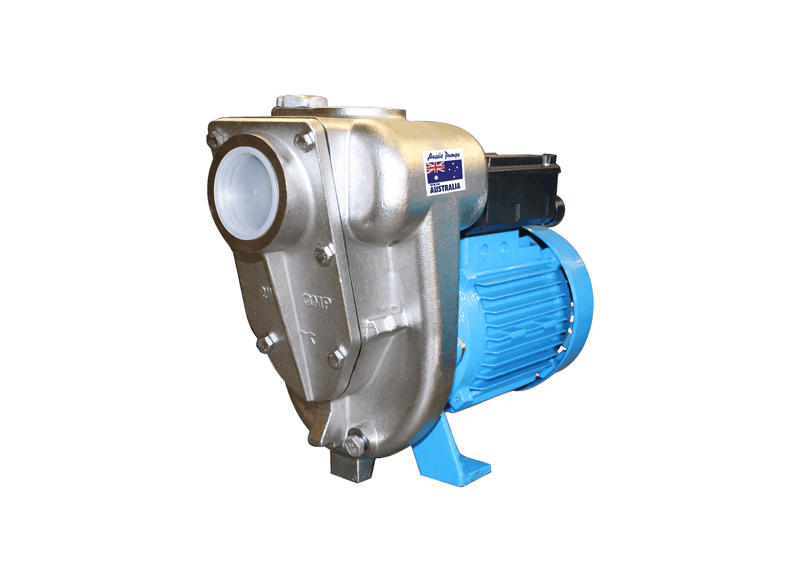

Aussie Pumps GMP GB2KQA/X2.23PS2 Stainless Steel Three Phase Series 2 Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Continuous-duty chemical refineries, solvent wash racks, and industrial effluent sumps deploy the Aussie GMP B2KQ-A/X Series 2 pump . Its Series 2 frame uses integrated motor base feet for improved stability on factory concrete floors.
Solids-laden liquid delivery moves up to 440 L/min under open-flow conditions, while total shut-off head develops to 20 m (28 PSI) at zero flow. The cast 316 stainless casing houses an open stainless impeller capable of transferring suspended solids up to 16 mm cleanly.
Industrial chemical propulsion is powered by a 2.2 kW three-phase 415 V TEFC motor with IP55 washdown protection, supplied unwired for hardwired isolator connection. Centrifugal self-priming suction draws solids-laden fluids from 6 m vertical depths without a foot valve.
Chemical wear resistance is braced by a sacrificial 316 stainless steel suction cover and 316 SS-cased mechanical seal rated to 70°C fluid temperatures intermittently. Standard 2-inch BSP ports allow rapid piping hookups. Backed by a 3-year factory warranty.
Features- Foot-mounted motor profile in Series 2 frame improves plant stability and reduces operational vibration.
- Precision-cast cast 316 stainless steel construction delivers capable resistance to solids-laden chemicals.
- Industrial 2.2 kW three-phase 415 V TEFC motor rated to IP55 washdown standards.
- Develops 20 m maximum shut-off head (28 PSI) alongside 440 L/min open discharge delivery.
- Handles suspended particulate and compressible solids up to 16 mm without impeller binding.
- Vertical self-priming suction lift reaches 6 m without requiring an external foot valve.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 20 m |
| Power | 2.2 kW / 415v |
| Suitable For | Chemical Transfer |
| Body Material | 316 Stainless Steel |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the electrical enclosure stop ignition risks in volatile vapor zones?
Certified flameproof motor construction on the Aussie Pumps GMP 316 Stainless Steel ATEX Semi-Trash B2KQ-A/X (GB2KQA/X2.23PS2) encloses electrical connections to eliminate spark ignition risks in flammable vapor atmospheres.
Which flow performance and elevation head limits govern this electric pumping system?
Operating across its curve, the GB2KQA/X2.23PS2 yields up to approximately 450 L/min in delivery volume and reaches an elevation head of approximately 20 m.
What motor kilowatt output and electrical phase supply run the wet end?
Propulsion for the GB2KQA-X2.23PS2 is delivered by a three-phase electric motor generating 2.2 kW on 415 V line supply, enclosed in an IP55 terminal casing.
What materials make up the pump casing, impeller, and internal wear plate?
On the GB2KQA X2.23PS2, the casing, impeller, and wear plate are precision-cast from AISI 316 stainless steel, fitted with a carbon ceramic and Viton mechanical seal.
How does the casing prime itself when connected to unflooded suction piping?
Built-in priming passages on the B2KQ-A/X (GB2KQA/X2.23PS2) draw water vertically from depths down to 6 m once the volute is primed, requiring no suction foot valve.
