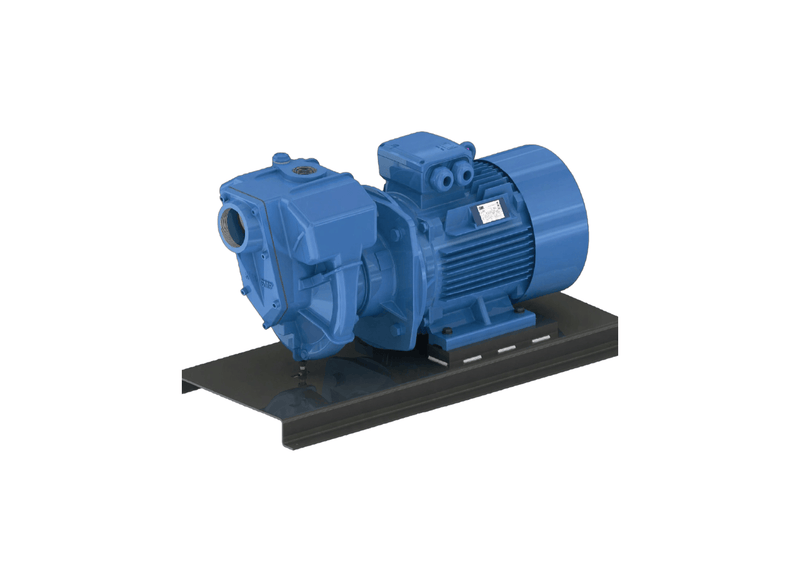

Aussie Pumps GMP GB2ZPM-A15KW Cast Iron Three Phase High-Head Transfer Pump with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Deep open-cut pit dewatering, multi-gun machinery washdown, and high-elevation transfer lines rely on the Aussie GMP B2ZPM-A* unit (GB2ZPM-A15KW). A heavy structural steel bedplate holds structural shaft alignment under intense continuous pressure demands.
Pumping head builds to an capable 70 m (100 PSI) maximum shut-off head at zero flow, while delivering an open-flow rate up to 800 L/min at zero head. Close-grained cast iron encloses an enclosed transfer impeller that passes small particulate up to 6 mm.
Heavy industrial propulsion originates from a 15 kW three-phase 415 V TEFC two-pole motor with IP55 washdown protection, supplied unwired for hardwired plant installations. Centrifugal self-priming passages lift liquid from 6 m vertical depths without a foot valve.
Sacrificial wear protection includes a replaceable suction port, 316 stainless motor shaft, and carbon/alumina seal for fluid temperatures up to 70°C. Stepped 3-inch inlet and 2-inch outlet connections maintain high line velocity. Backed by Aussie Pumps 3-year warranty.
Features- Tremendous 70 m maximum shut-off head (100 PSI) tailored for high-elevation and long-distance piping.
- Generates fluid throughput up to 800 L/min open discharge at zero static head.
- Cast 15 kW three-phase 415 V TEFC electric motor with IP55 washdown protection.
- Vertical self-priming suction lift reaches 6 m without requiring an external foot valve.
- Structural channel-steel base plate isolates vibration and delivers mechanical structurality.
- Close-grained cast iron casing features a 316 stainless steel motor shaft and replaceable suction port.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 70 m |
| Power | 15 kW / 415v |
| Suitable For | Pressure Boosting |
| Body Material | Cast Iron |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor kilowatt rating and electrical supply specifications operate the shaft?
Shaft propulsion for the Aussie Pumps GMP High Head Semi-Trash B2ZPM-A (GB2ZPM-A15KW) is supplied by a heavy three-phase electric motor rated at 15 kW on 415 V power with an IP55 weatherproof enclosure.
Which pumping volume and discharge elevation apply to this unit?
The hydraulic wet end of the GB2ZPM-A15KW produces a maximum fluid throughput of approximately 800 L/min while reaching a maximum vertical shut-off head of approximately 70 m.
What applications benefit from seventy metres of vertical elevation head?
For the GB-2ZPM-A-15KW, seventy metres of elevation head allows operators to push dirty sediment water over tall containment bunds and up steep quarry haul roads.
Can the pump draw water vertically from containment basins without manual priming?
The self-priming casing of the GB2ZPM A15KW draws water vertically from depths down to 6 m once filled, evacuating suction line air automatically.
What manufacturer warranty protection applies to the pump wet end and motor?
The wet end of the B2ZPM-A (GB2ZPM-A15KW) carries an Aussie Pumps three-year casing warranty, backed by service technicians and parts distribution nationwide.
