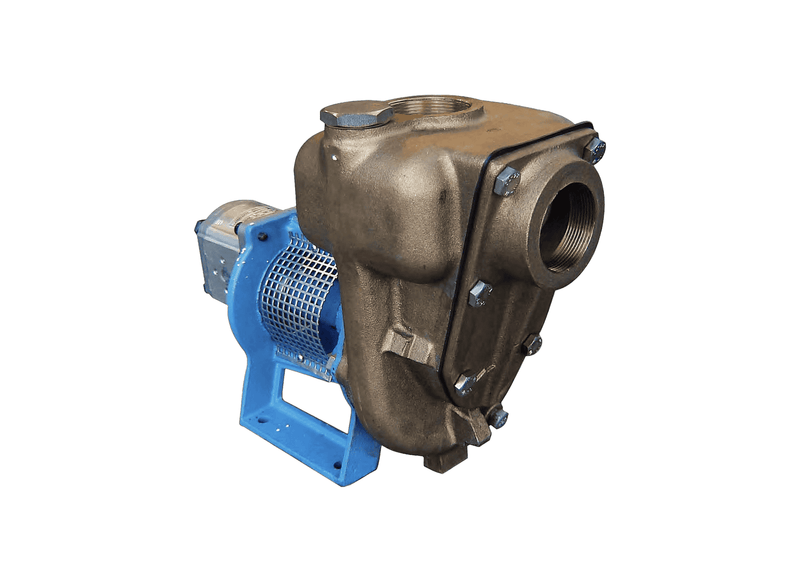

Aussie Pumps GMP GB3KQ-A/B HYDVIV Nial Bronze Hydraulic Self-Priming Transfer Pump with Vivoil Drive
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-volume marine and mine transfer runs up to 900 litres a minute through this bronze 3-inch hydraulic pump, shrugging off corrosive water that eats cast iron alive. Nial bronze keeps the wet end alive for years. High-volume corrosive transfer specifies GB3KQ-A/B HYDVIV in long-life Nial bronze.
Delivery peaks at 900 L/min open flow, shutting off at 16 m head (23 PSI). The Nial bronze body with open non-clog impeller runs a carbon/alumina mechanical seal with nitrile rubber through 80 mm ports.
Only 8.4 cm3/rev at 100 bar (3 kW) feeds the Vivoil XV-2U/9 motor for up to 900 litres a minute of corrosive water that destroys cast iron. Self-priming holds from 6 m through 80 mm ports, and the wear face renews through the replaceable suction port.
The listed applications cover marine pumping, mine dewatering, general water transfer and fire fighting. It is suited to moving water aboard vessels, clearing mine water, transferring supply between tanks or locations and maintaining a practical fire-water pumping option on remote worksites.
Features
- Iron-outliving Nial bronze wet end with Vivoil XV-2U/9 drive resists mine and marine water for years.
- Maximum flow of 900 L/min, shutting off at 16 m (23 PSI) serves transfer and suppression at volume.
- Demand of 3 kW-equivalent 8.4 cm3/rev at 100 bar keeps carrier load light for the flow delivered.
- Open non-clog impeller with a carbon and alumina seal plus nitrile handles corrosive sources.
- Wear-renewing replaceable suction port with 6 m self-priming keeps the bronze casing protected.
- Hydraulic drive connects the pump to a compatible carrier circuit without requiring a dedicated engine.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How effectively can the wet end evacuate air from long intake hose runs once the casing is charged?
Vertical suction capability on the Aussie Pumps Bronze Hydraulic Transfer B3KQ-A/B (GB3KQ-A-B-HYDVIV) reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
Which open discharge throughput and shut off elevation ceiling does this wet end develop through connected piping?
Under full operating throttle, the GB3KQ A B HYDVIV generates a maximum fluid displacement rate of approximately 900 L/min and reaches a maximum shut-off head of approximately 16 m.
What diameter solids can travel across the volute waterways without obstructing flow during routine excavation drainage?
Debris-laden wastewater passes freely through the open nickel-aluminium bronze impeller fitted to the GB3KQ-A/B HYDVIV.
What corrosion resistance benefits does the nickel aluminium bronze volute deliver during prolonged sea transfer?
Seawater corrosion resistance on the GB3KQ-A/B HYDVIV is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
How does the hydraulic motor couple to excavator or water truck oil supplies without requiring an auxiliary fuel engine?
The B3KQ-A/B (GB3KQ-A/B HYDVIV) couples directly to a hydraulic motor drive, drawing fluid power from carrier vehicle auxiliary hydraulics without needing an auxiliary fuel engine.
