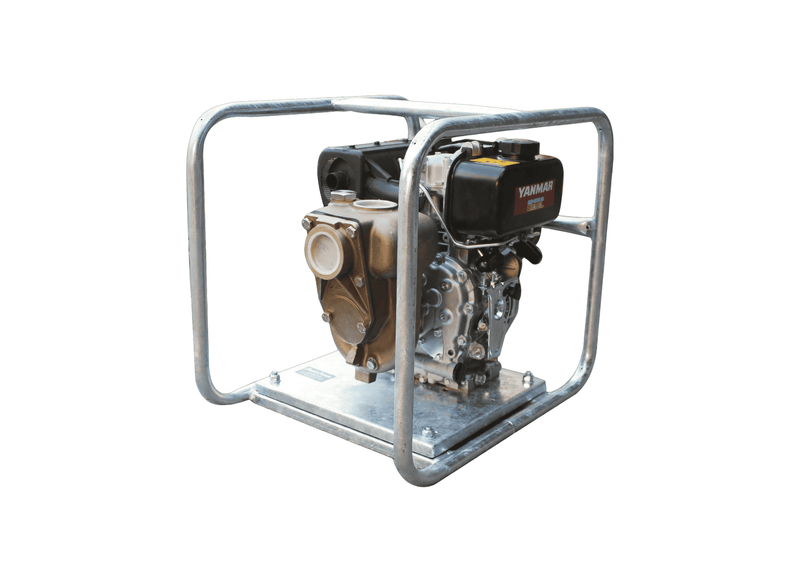

Aussie Pumps GMP GB3KQ-A/B/L70E Nial Bronze Semi-Trash Pump with Yanmar Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Push-button bronze dewatering pairs the same corrosion-proof 3-inch wet end with an electric-start Yanmar L70, delivering up to 840 litres a minute of saltwater-capable flow at the turn of a key. No recoil, no delay. Key-start bronze saltwater duty is GB3KQ-A/B/L70E with Yanmar L70 electric starting.
Open flow holds 840 L/min, shutting off at 16 m head (23 PSI). The Nial bronze B3KQ-A/B construction with open non-clog style impeller passes 27 mm solids through 80 mm waterways.
Turning a key replaces the pull cord: the 7 HP Yanmar L70 diesel with electric start delivers 840 litres a minute of saltwater-capable flow without delay. Tidal suction water keeps flowing through self-priming suction in the 63 kg unit.
This pump is specified for wastewater transfer, dust suppression, water-cart duty, fire fighting and quarry dewatering. The broad application range supports contractor and quarry work, including clearing accumulated water, filling mobile carts, supplying suppression lines and maintaining water availability for fire-response needs.
Features
- Delay-free 7 HP Yanmar L70 diesel with electric start fires bronze dewatering at a key turn.
- Open discharge of 840 L/min, shutting off at 16 m (23 PSI) moves saltwater without delay.
- Key-start Nial bronze corrosion-proof 3-inch wet end pairs convenience with lasting longevity.
- Open-impeller solids capacity of 27 mm handles weed, shell and site debris.
- Continuously flowing self-priming 80 mm ports in a 63 kg unit suit tidal applications.
- Electric start supports rapid deployment of the engine-driven package at paddock, quarry and marine sites.
- Covered by the 3 year Aussie Pumps pump warranty and 2 year Yanmar engine warranty.
SPECIFICATIONS
| Max Flow | 840 L/Min |
| Max Head | 16 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | Fire Fighting |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical suction lift does the self priming mechanism achieve across dry starts once the casing is charged?
Vertical suction capability on the Aussie Pumps Bronze Diesel Engine Drive Semi-Trash B3KQ-A/B (GB3KQ-A-B-L70E) reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How much liquid volume can this unit discharge at maximum speed through connected piping?
Under full operating throttle, the GB3KQ A B L70E generates a maximum fluid displacement rate of approximately 840 L/min and reaches a maximum shut-off head of approximately 16 m.
How do open impeller vanes keep fibrous matter from winding around the drive shaft across demanding site dewatering duties?
Equipped with an open nickel-aluminium bronze semi-trash impeller geometry, the GB3KQ-A/B/L70E clears solid matter up to 27 mm in diameter without jamming internal channels.
How does the bronze impeller withstand cavitation erosion when drafting ocean water during prolonged sea transfer?
Seawater corrosion resistance on the GB3KQ-A/B/L70E is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
Which engine propulsion and starting mechanism drive the pump shaft for standalone pumping in remote paddocks?
Mechanical power for the B3KQ-A/B (GB3KQ-A/B/L70E) is delivered by a diesel engine for standalone off-grid operation.
