SKU: GB3KQ-A/ST HYD

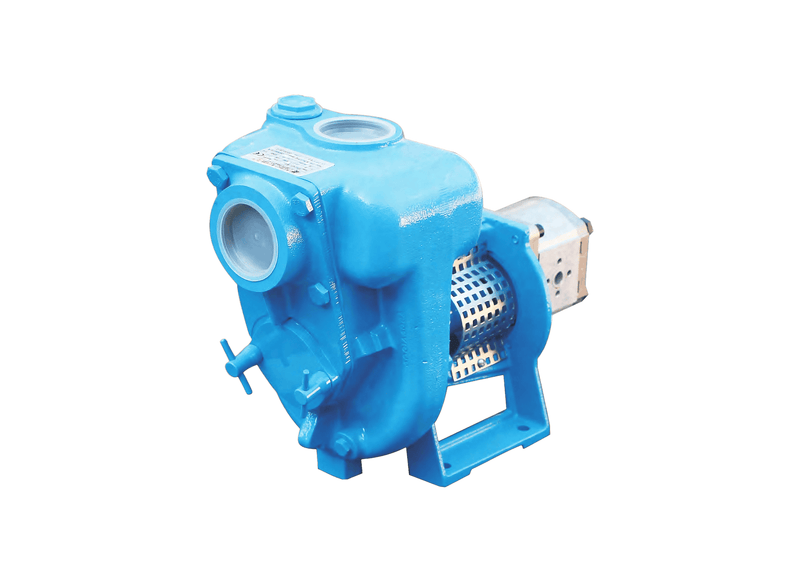

Aussie Pumps GMP GB3KQ-A/ST HYD Cast Iron 3" Ports Hydraulic Semi-Trash Pump with Casappa Motor
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-volume water carts fill fast through this Casappa-driven 3-inch hydraulic trash pump, shifting up to 900 litres a minute off a 3 kW hydraulic take-off. Cart turnarounds shrink to minutes. Fast cart turnarounds specify GB3KQ-A/ST HYD with Casappa hydraulic drive.
Open-discharge flow tops 900 L/min with shut-off at 16 m (23 PSI) of head. Cast-iron construction with an open non-clog impeller moves the volume through 80 mm suction and discharge, priming from 6 m.
Only 3 kW of hydraulic take-off is needed: the Casappa motor asks 8.5 cm3/rev at 100 bar while the pump shifts up to 900 litres a minute for fast cart turnarounds. Light-for-class 20.2 kg mounting meets 80 mm ports with 6 m self-priming suction.
For mine sites, the rated duty list includes dust suppression, water-cart filling, fire fighting and dewatering. That gives operators one hydraulic pump for haul-road water control, mobile cart supply, emergency fire-water support and clearing water from sumps and changing work areas.
Features
- Low-draw Casappa motor at 8.5 cm3/rev and 100 bar (3 kW) sips carrier power for big transfer.
- Water carts fill in minutes with 900 L/min open discharge, shutting off at 16 m (23 PSI).
- High-volume cast-iron construction with an open non-clog impeller moves full-bore site water.
- Cart-filling 80 mm ports with 6 m self-priming suction connect quickly to cart manifolds.
- Light-for-class 20.2 kg mounting weight suits skid and cart installation without cranes.
- Hydraulic drive connects the pump to a compatible carrier circuit without requiring a dedicated engine.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How do the internal passages clear fibrous sludge and floating solids without blockages during routine excavation drainage?
Debris-laden wastewater containing solids up to 25 mm across passes freely through the open cast iron impeller fitted to the Aussie Pumps Hydraulic Semi-Trash B3KQ-A/ST (GB3KQ-A-ST-HYD).
From what depth below ground can internal fluid pathways draft water automatically across routine site transfer duties?
The self-priming wet end on GB3KQ A ST HYD lifts liquid automatically from depths down to 6 m.
How does the front inspection cover simplify clearing debris from the wet end without uncoupling suction plumbing?
Internal waterways and the impeller of the GB3KQ-A/ST HYD can be cleared rapidly through the front inspection hatch without disconnecting site hoses.
Which peak volumetric output and total static head are developed under full operating speed?
Operating across its performance curve, the GB3KQ-A/ST HYD discharges a maximum flow rate of approximately 900 L/min and develops a maximum elevation head of approximately 16 m.
What mechanical drive specifications and hydraulic oil pressures operate the motor during dust suppression operations?
The B3KQ-A/ST (GB3KQ-A/ST HYD) couples directly to a hydraulic motor drive, drawing fluid power from carrier vehicle auxiliary hydraulics without needing an auxiliary fuel engine.
