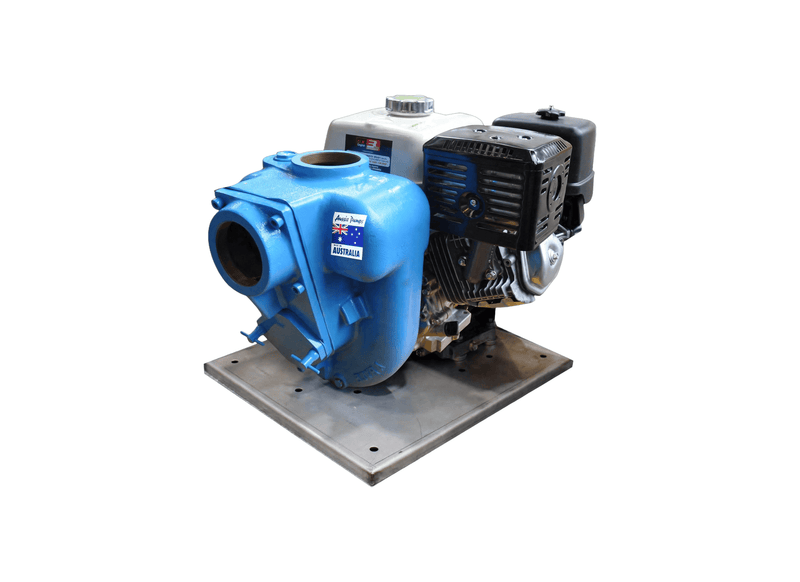

Aussie Pumps GMP GB3KQ-A/STL70E Cast Iron 3" Ports Semi-Trash Pump with Yanmar Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Contractors dewatering with diesel independence run this Yanmar-powered 3-inch trash pump, pushing up to 900 litres a minute anywhere the L70's electric start can crank. No mains, no hydraulics, no excuses. Diesel-independent site dewatering runs GB3KQ-A/STL70E on Yanmar L70 electric-start power.
Open flow peaks at 900 L/min, shutting off at 16 m head (23 PSI). The cast-iron B3KQ-A/ST wet end runs an open non-clog style impeller clearing 27 mm solids through 80 mm ports.
Push-button deployment comes from the 7 HP Yanmar L70 diesel with electric start, cranking anywhere for up to 900 litres a minute with no mains or hydraulics required. Site water keeps moving through self-priming suction and the open impeller with minimal attention.
Wastewater pumping, dust suppression, water-cart filling, fire-fighting supply and quarry dewatering are the main duties for this engine-driven unit. It suits contractors and quarry crews needing one portable pump for site water management, from clearing dirty water to supplying carts, suppression systems and fire-water points.
Features
- Crank-anywhere 7 HP Yanmar L70 diesel with electric start fires anywhere for up to 900 litres a minute.
- Diesel-freedom dewatering flows 900 L/min open discharge, shutting off at 16 m (23 PSI).
- Independent cast-iron semi-trash wet end with 27 mm solids handles site water and slurry.
- Attention-free 80 mm self-priming suction with an open impeller needs minimal operator input.
- Site-mobile 63 kg engine-pump package moves between excavations and headers easily each day.
- Electric start supports rapid deployment of the engine-driven package at paddock, quarry and marine sites.
- Covered by the 3 year Aussie Pumps pump warranty and 2 year Yanmar engine warranty.
SPECIFICATIONS
| Max Flow | 900 L/Min |
| Max Head | 16 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | Quarry Dewatering |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which engine propulsion and starting mechanism drive the pump shaft across remote field operations?
Propulsion on the Aussie Pumps Diesel Engine Drive Semi-Trash B3KQ-A/ST (GB3KQ-A-STL70E) is delivered by a dedicated diesel engine, enabling remote dewatering and chemical transfer without electrical hookups.
How does the removable front hatch reduce downtime during blockage clearing to restore full discharge throughput?
A removable front inspection cover on the GB3KQ A STL70E unbolts swiftly to clear trapped debris directly from the impeller eye without uncoupling connected pipework.
Can the casing self prime from below ground tanks without a check valve in the line when drafting from deep sumps?
Automatic priming action on the GB3KQ-A/STL70E drafts liquid from vertical depths down to 6 m without needing a foot valve.
Can the wet end clear slurry solids and small stones without choking internal channels in everyday paddock dewatering?
The open cast iron impeller on the GB3KQ-A/STL70E allows spherical solids up to 27 mm in diameter to pass freely without choking internal water passages.
What fluid volume per minute and total dynamic elevation head are generated under full operating speed?
At peak operational capacity, the wet end of the B3KQ-A/ST (GB3KQ-A/STL70E) produces up to approximately 900 L/min in open flow and reaches a maximum elevation head of approximately 16 m.
