SKU: GB3KQA/B2.2K1PS2

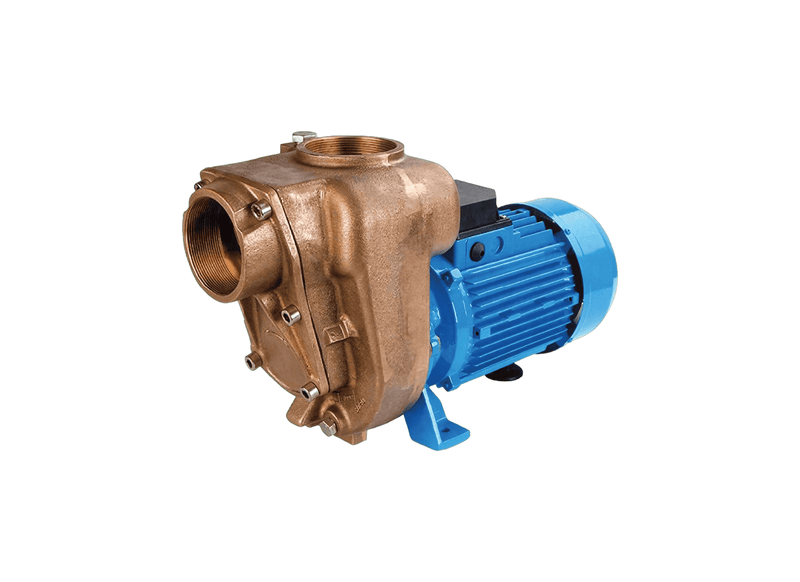

Aussie Pumps GMP GB3KQA/B2.2K1PS2 Nial Bronze 3" Ports Single Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Aquaculture sheds and small-craft marinas running on domestic supply clear ponds and holds fast with this 3-inch single-phase bronze pump, pushing up to 840 litres a minute through full 3-inch plumbing. No three-phase upgrade stands in the way. The single-phase 3-inch pump carries part number GB3KQA/B2.2K1PS2 for shed and farm supply.
Open flow reaches 840 L/min, shutting off at 16 m head (23 PSI). The cast nickel-aluminium bronze wet end meets Mil-Spec equivalent standard, and its large open bronze impeller clears solids as large as 27 mm, running on a carbon/alumina seal with nitrile rubber in a 316 stainless casing.
Domestic-supply sites gain 3-inch performance here: the 2.2 kW single-phase 240 V IP54 motor runs lead-free for fixed wiring, while generous 3-inch ports combine with 6 m self-priming suction. Grit damage lands on the replaceable suction cover, a cheap fix by design.
This pump is intended for marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning circulation. Those duties cover regular deck cleaning, bilge clearing and onboard water movement, making it a practical fit for workboats, tenders, fishing vessels and marina service installations. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Domestic-supply 2.2 kW single-phase 240 V motor with IP54 protection needs no three-phase infrastructure on site.
- Open flow of 840 L/min, shutting off at 16 m (23 PSI) clears ponds, holds and sumps rapidly.
- Three-inch through-porting in Mil-Spec equivalent bronze gives full-bore flow with corrosion immunity.
- Solids capability of 27 mm via the open bronze impeller swallows weed, sludge and small debris.
- Bolt-off replaceable cover combines with 6 m self-priming lift to make grit damage a cheap fix.
- Chemical transfer is enabled by fitting Viton seals for the complete seal set.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 840 L/Min |
| Max Head | 16 m |
| Power | 2.2 kW / 240v |
| Suitable For | Salvage Pumping |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What size spherical solids can pass through the impeller without creating clogs in everyday paddock dewatering?
The open vane nickel-aluminium bronze impeller on the Aussie Pumps Bronze Electric Transfer B3KQ-A/B (GB3KQA-B2.2K1PS2) clears dirty site runoff and solid debris up to 27 mm in diameter without stalling the shaft.
From what vertical intake depth can this unit draw liquid without pre filling lines across routine site transfer duties?
No foot valve is needed on the GB3KQA B2.2K1PS2 with a self-priming lift of up to 6 m once the casing is filled.
How does cast nickel aluminium bronze protect the pump wet end from aggressive saltwater in demanding marine applications?
Seawater corrosion resistance on the GB3KQA/B2.2K1PS2 is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
What peak delivery volume and vertical elevation head does this pump produce when discharging into storage tanks?
Discharge performance for the GB3KQA/B2.2K1PS2 yields an open flow volume of approximately 840 L/min and reaches a maximum shut-off elevation of approximately 16 m.
How is site electricity connected to run this electric pump package within outdoor switchboard setups?
Incoming electrical supply operates the B3KQ-A/B (GB3KQA/B2.2K1PS2) through an electric motor delivering 2.2 kW 240V 1-Phase.
