SKU: GB3KQA/ST2.23PS2

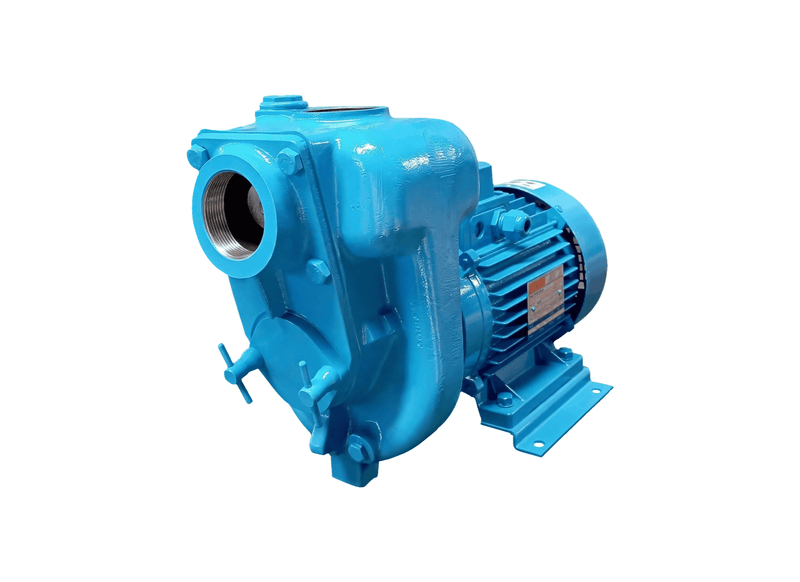

Aussie Pumps GMP GB3KQA/ST2.23PS2 Cast Iron Three Phase Series 2 Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Municipal treatment sumps, factory drainage channels, and abattoirs rely on the Aussie GMP B3KQ-A/ST Series 2 pump for continuous three-phase dewatering. Integrated motor base feet anchor the assembly firmly, preserving mechanical alignment.
Slurry volume reaches an impressive 900 L/min open discharge at zero elevation, accompanied by a 16 m (23 PSI) shut-off head at zero flow. The open non-clog cast impeller processes suspended slurry, stringy materials, and solids up to 27 mm without jamming.
Three-phase electrical drive is delivered by an industrial 2.2 kW 415 V TEFC motor with IP55 enclosure protection, supplied unwired without a lead or plug for panel connection. Rapid self-priming draws wastewater from 6 m vertical depths without external foot valves.
Chamber longevity is braced by close-grained cast iron, a 316 stainless motor shaft, and a silicon carbide seal handling liquid temperatures up to 70°C intermittently. A front clean-out hatch allows swift chamber flushing without pipe removal. 3-year GMP warranty.
Features- Transfers large suspended particles and compressible debris up to 27 mm without choking.
- Pumping capacity achieves up to 900 L/min open discharge with 16 m shut-off head (23 PSI).
- Series 2 structural motor base feet absorb operational vibration across continuous plant runs.
- Vertical self-priming lift pulls liquid from 6 m depths without requiring foot valves.
- Front clean-out port allows fast physical inspection without uncoupling 3-inch plumbing.
- Protected by Aussie Pumps 3-year commercial GMP pump warranty coverage.
SPECIFICATIONS
| Max Flow | 840 L/Min |
| Max Head | 16 m |
| Power | 2.2 kW / 415v |
| Suitable For | Winery Washdown |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What intake and discharge port connections are fitted to the housing?
Both suction and discharge ports on the Aussie Pumps GMP Semi-Trash B2KQ-A/ST (GB2KQA/ST2.23PS2) feature standard female BSP threads designed for direct coupling to site hoses and pipework.
Can this unit self prime from lower collection sumps without manual assistance?
Internal fluid pathways on the GB2KQA/ST2.23PS2 evacuate air automatically once the chamber is charged, pulling fluid vertically from depths down to 6 m.
What peak liquid delivery and shut off head are developed through site discharge lines?
Hydraulic output for the GB2KQA-ST2.23PS2 delivers a maximum volume of approximately 450 L/min and achieves a maximum elevation head of approximately 19 m across its operating curve.
What power requirements and motor enclosure rating apply to this electric drive package?
Shaft propulsion for the GB2KQA ST2.23PS2 is supplied by a three-phase electric motor rated at 2.2 kW on 415 V line voltage, housed in an IP55 terminal casing.
How does the casing construction resist abrasive slurry wear across site operations?
On the B2KQ-A/ST (GB2KQA/ST2.23PS2), close-grained cast iron metallurgy paired with a sacrificial stainless steel wear plate protects internal surfaces against grit abrasion.
