SKU: GB3XR-A ATEX 4KW

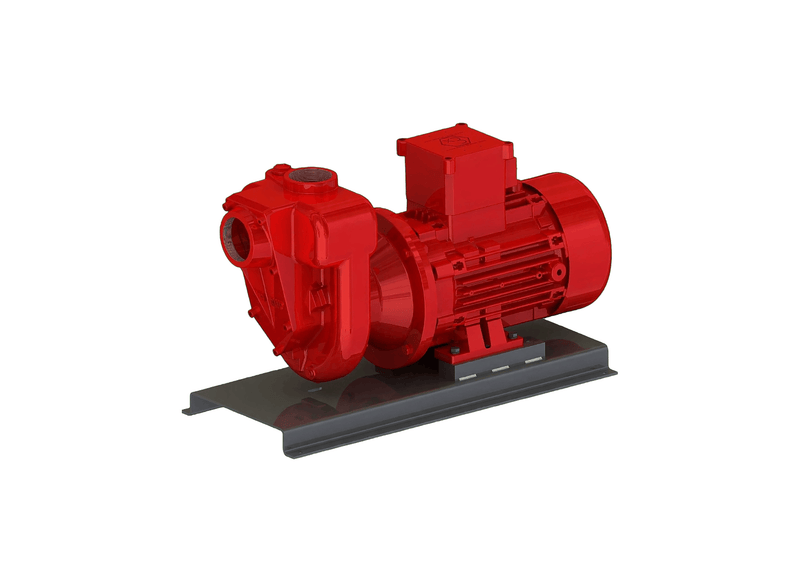

Aussie Pumps GMP GB3XR-A ATEX 4KW Flameproof Three Phase 3" Ports Diesel Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Base-mounted and ready for manifold duty, this 4 kW flameproof pump shifts 1,300 litres of diesel a minute inside hazardous classifications, anchoring to its steel base plate beside bulk storage. Station-grade flow with certified protection. Bulk-storage manifold duty anchors GB3XR-A ATEX 4KW on its steel base plate.
Open flow climbs to 1,300 L/min, shutting off at 26 m head (37 PSI) on fresh-water viscosity liquids. Heavy-duty cast construction with a replaceable suction cover carries a big open impeller for 19 mm solids, sealed by Viton/carbon/alumina as standard.
Anchoring beside bulk storage on its steel base plate, the 4 kW three-phase 415 V flameproof motor holds ATEX certification with IP55 protection for manifold duty. Fixed suction and discharge manifolds meet 3-inch ports that self-prime from 6 m, with wear renewal through the replaceable cover.
Diesel and fuel-oil transfer in hazardous environments is the central application, extending to machinery, marine diesel, earth-moving equipment, mining plant and generator refuelling. Waste-oil collection and heating-oil transfer are also listed, covering fixed fuel points as well as mobile service and maintenance work.
Features
- Bulk-storage 4 kW 415 V three-phase flameproof ATEX motor with IP55 protection is base-mounted for manifold duty.
- Open discharge of 1,300 L/min, shutting off at 26 m (37 PSI) gives station-grade classified flow.
- Manifold-duty 3-inch ports on a steel base plate bolt directly into fixed suction and discharge headers.
- Big-impeller solids handling of 19 mm passes the debris of bulk storage environments.
- Wear-renewal cover with 6 m self-priming lift keeps station maintenance to scheduled cover swaps.
- Flameproof configuration is selected for diesel-transfer work in the listed hazardous-area applications.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 26 m |
| Power | 4 kW / 415v |
| Suitable For | Earth Movers |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Why is an explosion proof motor required for transferring volatile solvents and fuels within hazardous vapor environments?
Built for hazardous atmospheres, the Aussie Pumps ATEX Electric Explosion-Proof B3XR-A/ATEX (GB3XR-A-ATEX-4KW) incorporates a certified flameproof terminal box and motor frame to stop ignition of surrounding gases.
How does the close-coupled motor interface with plant electrical switchboards within outdoor switchboard setups?
Mechanical power on the GB3XR A ATEX 4KW is delivered by an electric drive rated at 4 kW 415V 3-Phase, built for direct connection to site power.
How much fluid volume can the wet end displace every minute under full operating speed?
Operating across its performance curve, the GB3XR-A ATEX 4KW discharges a maximum flow rate of approximately 1300 L/min and develops a maximum elevation head of approximately 26 m.
Can this unit pull liquid from storage sumps without flooded suction lines across routine site transfer duties?
Vertical suction capability on the GB3XR-A ATEX 4KW reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
What particle clearance does the open impeller allow when pumping dirty runoff across high volume transfer lines?
Internal waterways and the cast iron impeller on the B3XR-A/ATEX (GB3XR-A ATEX 4KW) accommodate suspended solids and spherical matter up to 19 mm across without restricting fluid throughput.
