SKU: GB3XR-A/B 4KW

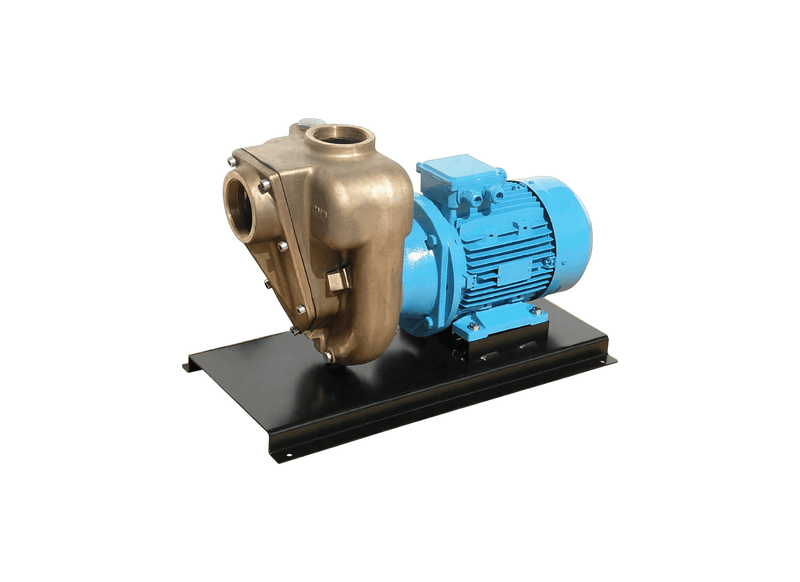

Aussie Pumps GMP GB3XR-A/B 4KW Nial Bronze 3" Ports Three Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Salvage barges and harbour dredge tenders step up to base-mounted muscle with this 4 kW three-phase bronze pump, holding station on its steel base plate while moving over a thousand litres a minute. Base-plate mounting kills vibration on steel decks. Base-mounted 4 kW performance is listed under GB3XR-A/B 4KW for salvage and harbour duty.
Open-discharge flow climbs to 1,300 L/min, shutting off at 28 m head (40 PSI). Heavy-duty cast nickel-aluminium bronze to Mil-Spec equivalent standard builds the casing and large open impeller for 19 mm solids, with carbon/alumina sealing, nitrile rubber and a 316 stainless casing.
Bolted to its steel base plate against torque reaction, the 4 kW three-phase 415 V IP55 motor takes panel wiring with no lead or plug supplied. Twin 3-inch ports prime from 6 m depths, and silt scoring lands on the unbolting suction cover.
Marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning duties place this unit where working boats need one pump to cover routine water management as well as emergency clearing. It suits washdown plumbing, bilge service and salvage work across commercial and recreational vessels. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Panel-wired 4 kW 415 V three-phase motor with IP55 protection mounts on a steel base plate against torque reaction.
- Open flow of 1,300 L/min, shutting off at 28 m (40 PSI) serves barges and dredge tenders continuously.
- Mil-Spec equivalent bronze casing with an open trash impeller resists abrasive salvage water.
- Solids clearance of 19 mm handles rope fibre, weed and dredge spoil in suspension.
- Priming lift of 6 m comes self-primed through twin 3-inch ports, with silt scoring caught by the unbolting cover.
- Chemical adaptability arrives through Viton elastomer fitment for the complete seal assembly.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 28 m |
| Power | 4 kW / 415v |
| Suitable For | Marine Deck Washdown |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Why is nickel aluminium bronze specified for marine washdown and vessel dewatering duties during prolonged sea transfer?
The bronze wet end of the Aussie Pumps Bronze Electric Transfer B3XR-A/B (GB3XR-A-B-4KW) suits marine environments.
How is site electricity connected to run this electric pump package to initiate shaft rotation?
Mechanical power on the GB3XR A B 4KW is delivered by an electric drive rated at 4 kW 415V 3-Phase, built for direct connection to site power.
How many litres per minute and vertical metres can this wet end deliver through connected piping?
Operating across its performance curve, the GB3XR-A/B 4KW discharges a maximum flow rate of approximately 1300 L/min and develops a maximum elevation head of approximately 28 m.
How deep can this self priming pump draw water from underground sumps without requiring an external foot valve?
Vertical suction capability on the GB3XR-A/B 4KW reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
What maximum diameter debris particles travel through the internal waterways without choking during dirty liquid transfer?
Internal casing clearances on the B3XR-A/B (GB3XR-A/B 4KW) allow the open nickel-aluminium bronze impeller to digest spherical matter up to 19 mm without binding.
