SKU: GB3XR-A/ST 4KW

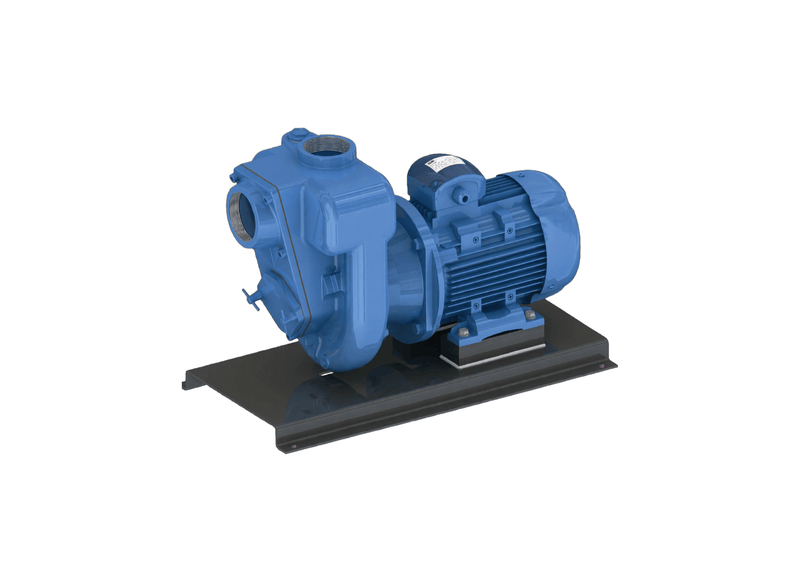

Aussie Pumps GMP GB3XR-A/ST 4KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Quarry settlement sumps, abattoir runoff pits, and processing plants deploy the Aussie GMP B3XR-A/ST motor-driven unit for continuous slurry dewatering. A heavy channel-steel base plate anchors the pump and motor, maintaining coupling alignment.
Pumping hydraulics move substantial volumes up to 1,300 L/min open discharge at zero elevation, developing a 26 m (37 PSI) shut-off head at zero flow. The heavy cast iron casing encloses an open non-clog trash impeller passing suspended solids up to 19 mm cleanly.
Mechanical drive originates from a 4 kW three-phase 415 V TEFC electric motor rated to IP55 standards, supplied unwired without a lead for permanent control panel wiring. The self-priming chamber lifts dirty water from 6 m vertical depths without a foot valve.
Close-grained cast iron construction encloses a 316 stainless motor shaft, wear plate, and silicon carbide mechanical seal rated to 70°C liquid temperatures intermittently. A front clean-out hatch unbolts for swift de-silting without pipe disassembly. 3-year warranty.
Features- Structural channel-steel base plate delivers permanent shaft alignment and vibration dampening.
- Powerful 4 kW three-phase 415 V TEFC motor rated to IP55 for continuous severe-duty operation.
- High-capacity 3-inch fluid throughput moves up to 1,300 L/min open discharge.
- Maximum shut-off head reaches 26 m (37 PSI) at zero flow.
- Large open-vane trash impeller passes suspended solids up to 19 mm without binding.
- Picks up suction prime reliably from vertical depths of 6 m without a foot valve.
- Front clean-out hatch allows swift chamber flushing without pipe disassembly.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 28 m |
| Power | 4 kW / 415v |
| Suitable For | Quarry Dewatering |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is the steel skid frame engineered to support equipment relocation?
A structural steel base plate supports the Aussie Pumps GMP Semi-Trash B3XR-A/ST (GB3XR-A/ST 4KW), provides rigid motor and pump alignment, equipped with lifting points for crane positioning across worksites.
How is electric motor drive configured for site power connections and terminal wiring?
Mechanical power for the GB3XR-A/ST 4KW is supplied by a three-phase electric drive producing 4 kW on 415 V, sealed inside an IP55 terminal enclosure.
What spherical particle diameter can the impeller accommodate during pumping?
The open non-clog impeller on the GB3XR-A-ST-4KW allows spherical debris and site gravel up to 19 mm across to move through the casing without clogging.
How does the internal priming reservoir evacuate air from dry suction hoses?
Internal liquid recirculation on the GB3XR A ST 4KW evacuates suction line air swiftly, establishing prime from vertical depths down to 6 m without a foot valve.
How many litres of liquid can this pump discharge per minute at maximum elevation head?
Hydraulic performance for the B3XR-A/ST (GB3XR-A/ST 4KW) produces a maximum flow rate of approximately 1300 L/min and achieves a maximum elevation head of approximately 28 m.
