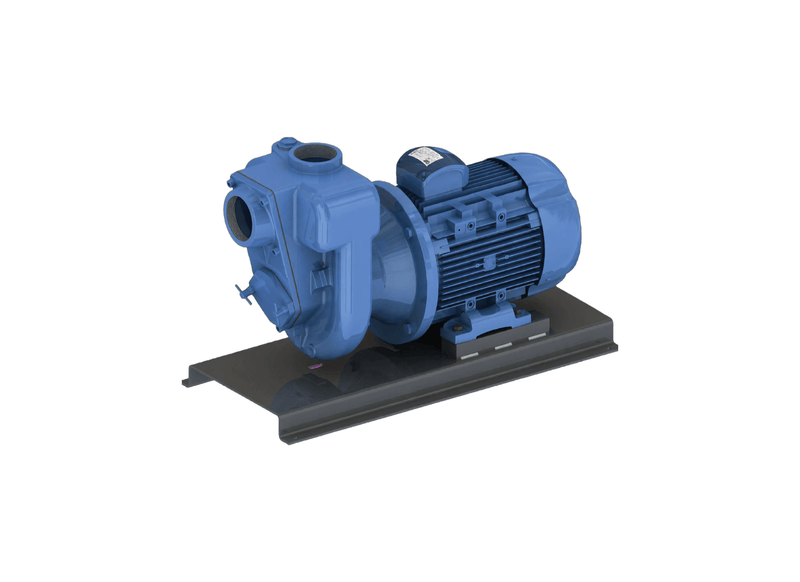

Aussie Pumps GMP GB3XR-A/ST 5.5KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil batch plants, mine tailing sumps, and food processing lines utilize the Aussie GMP B3XR-A/ST motor drive semi-trash pump for high-torque slurry transfer. Its structural steel foundation clears mechanical deflection under heavy hydraulic loads.
Hydraulic throughput delivers up to 1,400 L/min open discharge at zero static head, accompanied by a maximum shut-off head of 26 m (37 PSI) at zero flow. The heavy cast iron casing incorporates an open semi-trash impeller configured for process solids up to 24 mm cleanly.
Heavy plant drive is supplied by an industrial 5.5 kW three-phase 415 V TEFC motor rated to IP55, unwired without lead or plug for isolator integration. Internal self-priming passages draw liquid from vertical suction depths of 6 m without requiring foot valves.
Hardwearing cast iron volute metallurgy houses a 316 stainless motor shaft, wear plate, and abrasion-resistant silicon carbide seal. Servicing is streamlined via a front clean-out hatch that opens without disturbing 3-inch pipe connections. Backed by a 3-year warranty.
Features- Enhanced 24 mm spherical and compressible solid handling capability via an open non-clog impeller.
- Peak open-discharge volume of 1,400 L/min with total shut-off head to 26 m (37 PSI).
- 5.5 kW three-phase 415 V TEFC motor enclosed to IP55 standards for demanding industrial environments.
- Mounted on a heavy-gauge steel base plate to eliminate running vibration.
- Picks up prime from vertical suction depths of 6 m without external priming mechanisms.
- Front-mounted clean-out hatch enables swift volute clearing without disturbing pipe connections.
- Backed by Aussie Pumps 3-year commercial GMP warranty support.
SPECIFICATIONS
| Max Flow | 1400 L/Min |
| Max Head | 28 m |
| Power | 5.5 kW / 415v |
| Suitable For | Quarry Dewatering |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What size suspended solids can the open vane impeller pass through discharge lines?
The open cast iron impeller on the Aussie Pumps GMP Semi-Trash B3XR-A/ST (GB3XR-A/ST 5.5KW) clears suspended solid matter and gravel up to 24 mm in diameter without impeding hydraulic efficiency.
What metallurgy is selected for the pump body and internal wear surfaces?
On the GB3XR-A/ST 5.5KW, close-grained cast iron forms the pump body, guarded by a replaceable AISI 316 stainless steel wear plate to combat erosive slurry wear.
What peak pumping volume and vertical discharge limit are engineered into the wet end?
Operating at rated speed, the GB3XR-A-ST-5.5KW delivers up to approximately 1400 L/min in open volume and develops a maximum elevation head of approximately 28 m.
What incoming voltage and electrical phase connection run this drive unit?
The GB3XR A ST 5.5KW couples to a three-phase electric motor generating 5.5 kW on 415 V power, housed within an IP55 weatherproof enclosure.
How does the front inspection hatch assist in clearing obstructions from the wet end?
A front cleanout hatch on the B3XR-A/ST (GB3XR-A/ST 5.5KW) unbolts rapidly, granting immediate visual access to clear lodged debris without uncoupling pipework.
