SKU: GB3XR-A/ST 7.5KW

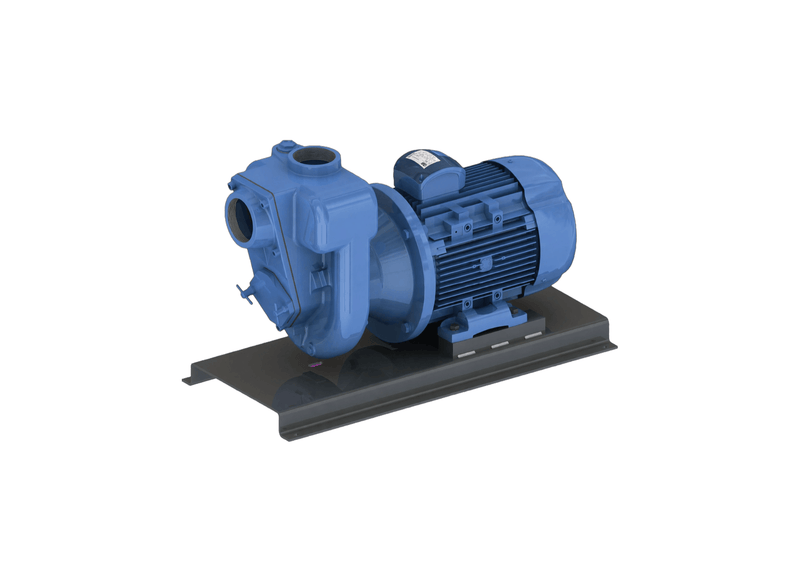

Aussie Pumps GMP GB3XR-A/ST 7.5KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine tailing sumps, high-elevation slurry discharge, and abattoir waste pits deploy the Aussie GMP B3XR-A/ST motor-driven unit . Its heavy structural steel channel base provides structural foundation stability during continuous high-pressure dewatering.
Slurry throughput reaches an open-discharge flow rate up to 1,500 L/min at zero static head and builds a 31 m (44 PSI) shut-off head at zero flow. An open non-clog cast impeller handles spherical and compressible suspended slurry solids up to 24 mm without jamming.
Shaft drive torque comes from an industrial 7.5 kW three-phase 415 V TEFC motor rated to IP55, supplied unwired without a lead or plug for panel isolator wiring. Internal self-priming passages pull dirty water from 6 m vertical depths without external foot valves.
Toughened silicon carbide mechanical seal faces with an alumina counterface tolerate intermittent liquid temperatures up to 70°C. An integrated front clean-out hatch allows swift chamber flushing without pipe removal. Protected by Aussie Pumps 3-year warranty.
Features- High-power 7.5 kW three-phase 415 V TEFC motor rated for continuous heavy industrial duty.
- Reaches a 31 m maximum shut-off head (44 PSI) with open-discharge throughput up to 1,500 L/min.
- Handles large 24 mm spherical and compressible suspended debris without clogging.
- Structural structural steel base plate delivers optimal motor alignment and vibration absorption.
- Vertical self-priming suction lift reaches 6 m without requiring an external foot valve.
- Front clean-out door allows rapid physical clearing of blockages without pipe disconnection.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 30 m |
| Power | 7.5 kW / 415v |
| Suitable For | Quarry Dewatering |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum liquid displacement rate and elevation pressure head are achieved?
The hydraulic assembly on the Aussie Pumps GMP Semi-Trash B3XR-A/ST (GB3XR-A/ST 7.5KW) yields a maximum flow throughput of approximately 1500 L/min and develops a maximum elevation head of approximately 30 m.
What electric motor specification and weather ingress protection power the shaft?
Shaft propulsion for the GB3XR-A/ST 7.5KW is delivered by a high-output three-phase electric motor producing 7.5 kW on 415 V with an IP55 enclosure.
What vertical intake lift can be achieved when pulling water from below ground?
Self-priming wet-end geometry on the GB3XR-A-ST-7.5KW draws fluid vertically from depths up to 6 m once filled, eliminating the requirement for a suction foot valve.
How is the mounting base configured to control vibration during operation?
A structural steel channel base plate supports the GB3XR A ST 7.5KW, supports the 98.5 kg package, dampening motor resonance and maintaining rigid shaft coupling.
What diameter of spherical debris can flow through the internal waterways safely?
Internal passages on the B3XR-A/ST (GB3XR-A/ST 7.5KW) permit spherical solid particles up to 24 mm across to flow through the casing without binding the open impeller.
