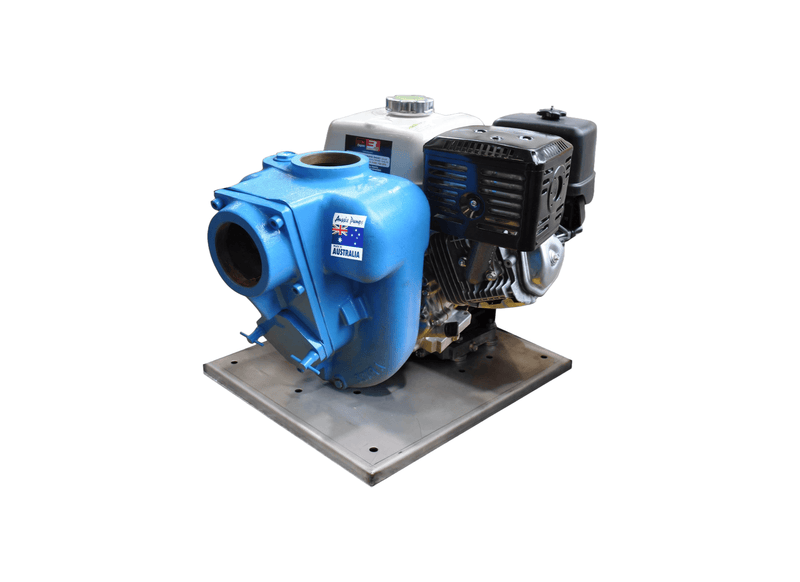

Aussie Pumps GMP GB3XR-A/ST/L100ENF Cast Iron 10HP Base Mount Semi-Trash Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
For industrial dewatering applications where petrol ignition hazards are prohibited, this diesel-driven semi-trash configuration uses a cast-iron pump body. Its base-mounted no-frame format (NF) allows direct installation onto mine service trucks and pit drainage skids.
Hydraulic performance encompasses a maximum shut-off head of 28 m at zero flow and an open-discharge flow capacity of up to 1,000 L/min at zero static head. Dry boxed mass: 100 kg. Heavy cast iron construction absorbs mechanical vibration and operational stress.
Driven by a high-torque Yanmar L100 (10 HP) electric-start diesel engine (battery kit not included). Heavy 3" x 3" BSP male ports maximize fluid throughput, while internal self-priming passages lift liquid reliably from vertical suction depths up to 6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy on site.
Configured for withstand severe abrasive wear on Australian mining and quarry sites. Supported by comprehensive technical documentation, assembly diagrams, and complete replacement component stockists across regional distribution centers through Aussie Pumps authorized dealer networks. Complete technical assembly schematics and spare parts are available nationwide through Aussie Pumps distribution networks.
Features- Heavy cast iron pump construction provides capable resistance to abrasive sand, silt, and gravel wear.
- Semi-trash open impeller design processes suspended solids up to 20 mm without binding.
- Yanmar L100 (10 HP) electric-start diesel engine delivers high torque and safety on industrial sites.
- Hydraulic limits: maximum shut-off head of 28 m at zero flow, with open-discharge flow capacity up to 1,000 L/min at zero head.
- Frame-free base-mounted format (NF) tailored for truck bed and machinery skid mounting.
- Self-priming hydraulic wet end draws fluid reliably from vertical suction depths up to 6 m.
- Includes a 3-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 28 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Quarry Dewatering |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What powerplant and startup mechanism propel this assembly?
The Aussie Pumps GMP Semi-Trash B3XR-A/ST (GB3XR-A/ST/L100ENF) relies on a Yanmar L100 10HP electric-start diesel engine, configured with electric key starting for convenient ignition.
What solids size can pass through this semi-trash casing?
Equipped with a semi-trash cast iron impeller, the GB3XR-A/ST/L100ENF passes spherical solids up to approximately 20 mm, with a front inspection hatch allowing swift removal of stringy debris without tool kits.
What vertical intake lift is supported by the internal priming chamber?
The GB3XR-A-ST-L100ENF achieves vertical suction lift up to approximately 6 m, drawing water directly from swimming pools and storage tanks.
What total volumetric capacity and head performance apply?
The GB3XR A ST L100ENF achieves a maximum flow capacity of approximately 1,000 L/min and a maximum head limit of approximately 28 m, varying across operating requirements.
What warranty terms protect this equipment across Australian operations?
The GB3XR/A/ST/L100ENF includes warranty terms comprising a 3-year Aussie Pumps GMP wet end warranty and a 2-year Yanmar engine warranty, with full spare parts availability nationwide.
