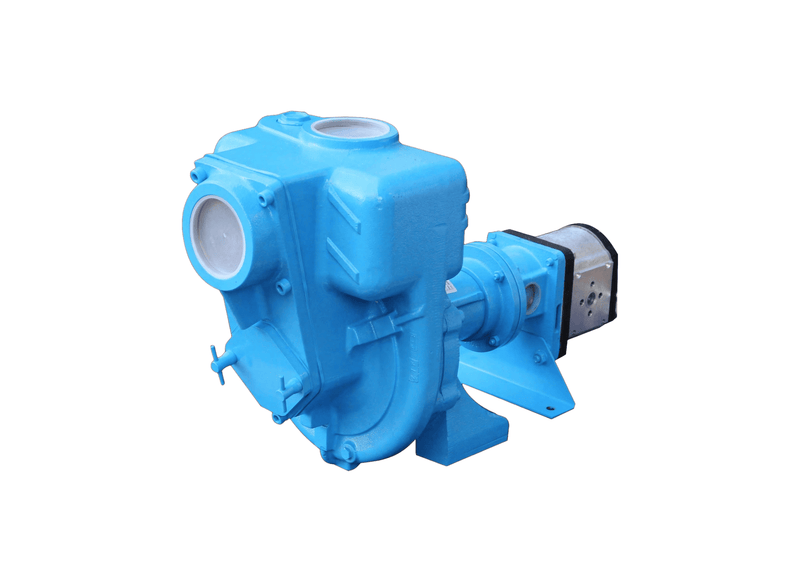

Aussie Pumps GMP GB3XR-A/STHYDDR Stainless Impeller Hydraulic Mud Transfer Pump with Tungsten-Carbide Seals
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Deep dewatering with teeth: this 3-inch mud pump lifts 1,500 litres a minute of abrasive water, shutting off at 31 metres, pairing high-head hydraulics with a stainless impeller and tungsten-carbide seals. Elevation no longer excludes dirty water. Deep abrasive dewatering with teeth is GB3XR-A/STHYDDR, lifting dirty water 31 metres.
Open-discharge capacity holds 1,500 L/min, shutting off at 31 m head (44 PSI). Cast iron with a stainless-steel open non-clog impeller passes 35 mm solids, protected by tungsten-carbide mechanical seal faces and nitrile rubber.
High-head hydraulics reach 31 metres on 21 cm3/rev at 150 bar (7 kW) through the Vivoil XV-3U/21 motor, lifting dirty water where ordinary trash pumps stop. The 80 mm ports self-prime from 6 m, with rapid clearing available at the front-mounted clean-out port.
Use this pump on drilling rigs for sump dewatering, abrasive-water transfer and dust-suppression work. The application is centred on moving water around mobile drilling operations, from clearing accumulated water near the rig to supplying water where dust-control measures are needed.
Features
- Height-capable Vivoil XV-3U/21 at 21 cm3/rev and 150 bar (7 kW) lifts abrasive water to elevation.
- Dirt-tolerant pressure pairs 1,500 L/min open flow, shutting off at 31 m (44 PSI).
- Solids of 35 mm through stainless open hydraulics digest coarse drilling and pit debris.
- Tungsten-carbide sealing with nitrile rubber backup resists abrasive attack at high head.
- Rapid clearing at the front clean-out port with 6 m self-priming keeps deep pits pumping.
- At 56 kg, the package can be planned around appropriate lifting, skid or fixed-installation arrangements.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical drafting capability does the internal priming chamber provide once the casing is charged?
Built-in priming passages on the Aussie Pumps Hydraulic Mud B3XR-A/ST (GB3XR-A-STHYDDR) draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What discharge output volume and total static head are achieved across open site lines?
Across open pipeline runs, the GB3XR A STHYDDR pushes fluid at a maximum throughput of approximately 1500 L/min while attaining a shut-off head ceiling of approximately 31 m.
How does wide-passage impeller geometry keep sediment and debris from accumulating in everyday paddock dewatering?
Internal casing clearances on the GB3XR-A/STHYDDR allow the open AISI 316 stainless steel impeller to digest spherical matter up to 35 mm without binding.
How does the removable front hatch reduce downtime during blockage clearing without disconnecting connected piping?
Internal waterways and the impeller of the GB3XR-A/STHYDDR can be cleared rapidly through the front inspection hatch without disconnecting site hoses.
How is fluid power supplied to the hydraulic drive motor on mobile equipment during dust suppression operations?
Hydraulic oil flow from the carrier machine powers the motor on the B3XR-A/ST (GB3XR-A/STHYDDR), providing self-contained pumping without on-board petrol or diesel engines.
