SKU: GB3XR-A/X 4KW

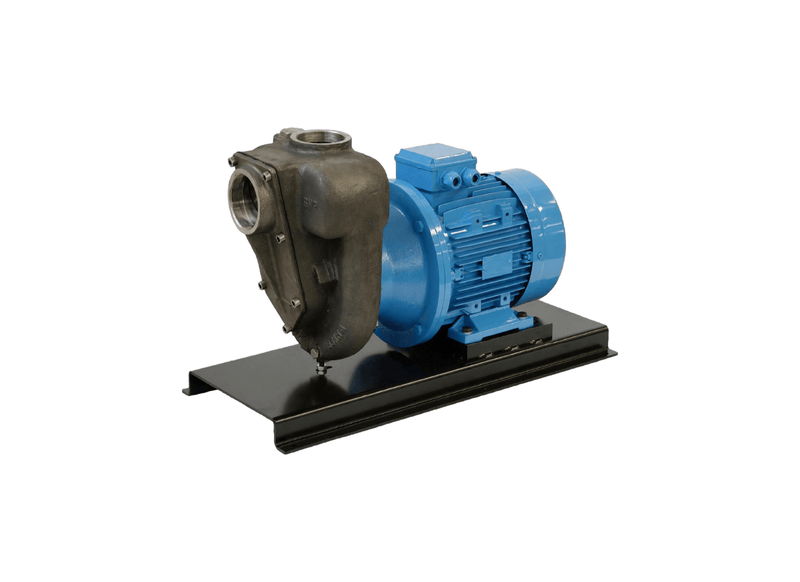

Aussie Pumps GMP GB3XR-A/X 4KW Stainless Steel Three Phase Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mining tailing dams, chemical processing plants, and food waste facilities utilize the Aussie GMP B3XR-A/X motor-driven unit in full cast large stainless steel. Its heavy channel-steel base plate delivers structural foundation alignment under continuous pumping.
Corrosive slurry throughput reaches an open-flow rate of 1,300 L/min at zero static head and establishes a 28 m (40 PSI) shut-off head at zero flow. A large open 316 stainless steel impeller transfers abrasive chemical slurries containing solids up to 19 mm cleanly.
Industrial motor drive originates from a 4 kW three-phase 415 V TEFC motor with IP55 ingress protection, supplied unwired without a lead or plug for hardwired control panel setups. Rapid self-priming lifts corrosive slurry from 6 m vertical depths without a foot valve.
Sacrificial 316 stainless steel suction covers protect the casing against slurry erosion up to 70°C liquid temperatures intermittently. Chemical mechanical seals encased in 316 SS prevent leakage. Covered under Aussie Pumps 3-year commercial GMP warranty.
Features- Cast 316 stainless steel body and open impeller provide total defense against solids-laden fluids.
- Delivers high-volume fluid movement up to 1,300 L/min open discharge with a 28 m shut-off head.
- Processes abrasive suspended particles and solids up to 19 mm without pump choking.
- Industrial 4 kW three-phase 415 V TEFC motor configured for continuous factory duty with IP55 rating.
- Mounted on a structural structural steel base plate for vibration dampening and shaft alignment.
- Self-primes reliably from vertical suction lifts up to 6 m without an external foot valve.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 28 m |
| Power | 4 kW / 415v |
| Suitable For | Chemical Effluent |
| Body Material | 316 Stainless Steel |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What certification enables this unit to operate inside chemical vapor zones?
The Aussie Pumps GMP 316 Stainless Steel ATEX Semi-Trash B3XR-A/X (GB3XR-A/X 4KW) carries ATEX explosion-proof certification with an IP55 enclosure, qualifying it for hazardous chemical environments.
What diameter spherical solids can travel through the stainless steel semi trash casing?
For the GB3XR-A/X 4KW, an open 316 stainless steel impeller passes suspended solids and chemical sludge up to 19 mm across without jamming internal channels.
Which incoming electrical line supply and enclosure class power this pump?
The GB3XR-A-X-4KW connects to a three-phase 415 V plant supply to run the 4 kW electric motor, protected by an IP55 terminal enclosure.
How is this stainless steel pump package mounted and secured on site?
A structural steel base plate supports the GB3XR A X 4KW, supports the 78.2 kg package, providing rigid motor alignment and bolt-down anchoring for chemical bunds.
What maximum volumetric output and total vertical head pressure does the unit provide?
Hydraulic output for the B3XR-A/X (GB3XR-A/X 4KW) delivers a maximum volume of approximately 1300 L/min and achieves a maximum elevation head of approximately 28 m.
