Roll over image to zoom
SKU: GB3XR-A/X 5.5KW

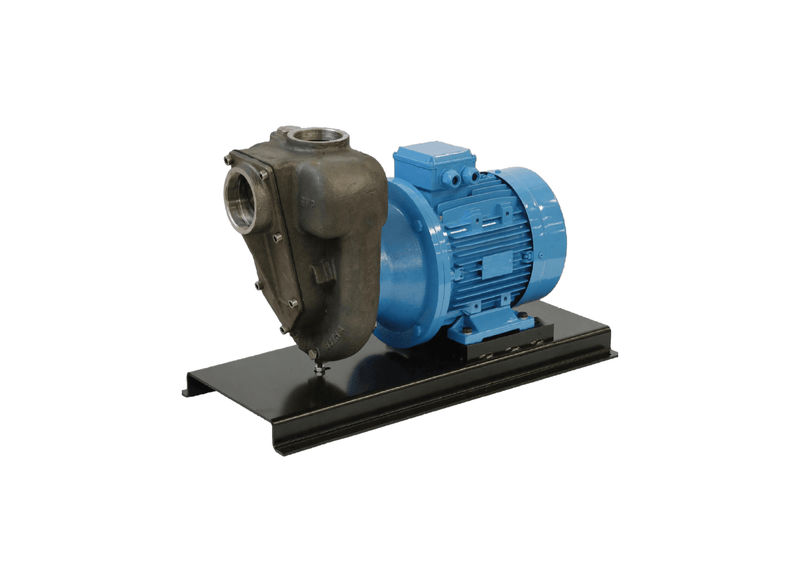

Aussie Pumps GMP GB3XR-A/X 5.5KW Stainless Steel Three Phase Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Solids-laden chemical transfer, acid sump evacuation, and abattoir by-product lines deploy the cast Aussie GMP B3XR-A/X motor-driven unit . A heavy channel-steel base plate delivers steady foundation anchoring under continuous high-pressure cycles.
Corrosive waterway throughput achieves an impressive 1,400 L/min open discharge at zero elevation, accompanied by a 28 m (40 PSI) shut-off head at zero flow. The cast 316 stainless steel chamber encloses an open trash impeller passing solids up to 24 mm without jamming.
Severe-duty plant drive is supplied by an industrial 5.5 kW three-phase 415 V TEFC motor rated to IP55, supplied unwired without a cord for direct plant isolator connection. Centrifugal self-priming action draws dirty water from 6 m depths without an intake foot valve.
Erosive slurry protection is provided by a replaceable 316 stainless steel suction cover that houses against particulate wear up to 70°C intermittently. Full 3-inch BSP ports streamline chemical line integration. Protected by Aussie Pumps 3-year warranty.
Features- Expanded 24 mm solids clearance stops clogging from heavy chemical slurry and food waste.
- Generates fluid throughput up to 1,400 L/min open flow alongside a 28 m maximum shut-off head.
- Complete cast 316 stainless steel metallurgy withstands harsh acids and corrosive solvents.
- Powerful 5.5 kW three-phase 415 V TEFC motor configured for IP55 standards for demanding plant service.
- Structural channel-steel base plate dampens vibration and retains mechanical alignment.
- Rapid self-priming wet end lifts solids-laden liquids from vertical depths of 6 m without a foot valve.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 1400 L/Min |
| Max Head | 28 m |
| Power | 5.5 kW / 415v |
| Suitable For | Chemical Effluent |
| Body Material | 316 Stainless Steel |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the selected metallurgy guard against chemical fluid attack?
Precision-cast AISI 316 stainless steel volute metallurgy on the Aussie Pumps GMP 316 Stainless Steel ATEX Semi-Trash B3XR-A/X (GB3XR-A/X 5.5KW) and impeller metallurgy provide complete resistance to harsh solvents, brine, and acids.
What electrical supply requirements and motor protection are fitted here?
Mechanical power for the GB3XR-A/X 5.5KW is supplied by an electric motor rated at 5.5 kW, operating on three-phase 415 V power with ATEX flameproof protection.
How many litres per minute and what elevation head can the casing generate?
Operating under full power, the GB3XR-A-X-5.5KW delivers up to approximately 1400 L/min at peak flow and reaches an elevation head of approximately 28 m.
How are heavy slurries and suspended debris passed across the open impeller?
The open stainless steel impeller on the GB3XR A X 5.5KW passes suspended solids and organic particles up to 24 mm in diameter without choking fluid flow.
What inspection access is provided for clearing lodged obstructions from the volute?
A front-mounted cleanout hatch on the B3XR-A/X (GB3XR-A/X 5.5KW) unbolts swiftly to clear trapped debris without uncoupling three-inch pipework.
