SKU: GB3XR-AATEX7.5KW

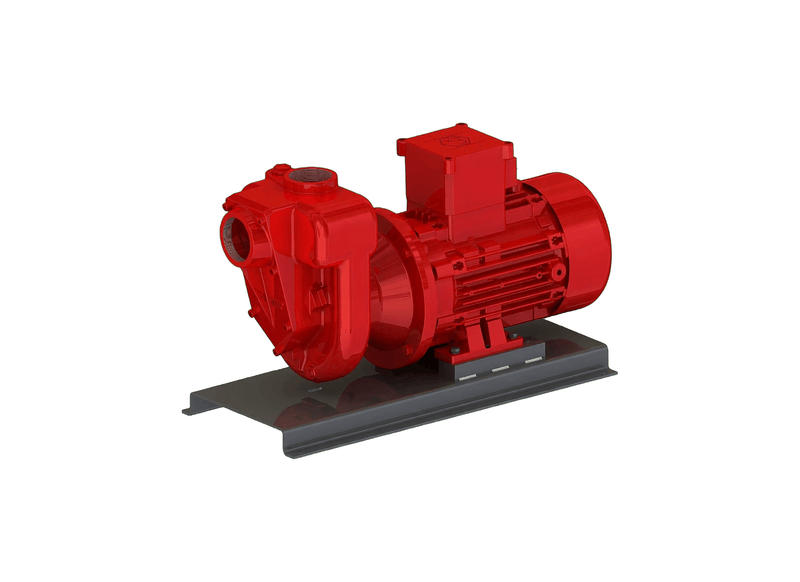

Aussie Pumps GMP GB3XR-AATEX7.5KW Flameproof Three Phase 3" Ports Diesel Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Top of the 3-inch flameproof range, this 7.5 kW pump is rated 1,500 litres a minute with a 31-metre shut-off head for long classified-area transfer runs, pushing diesel the distance without booster stations. One pump covers the whole tank farm. Whole-farm classified coverage from one pump is GB3XR-AATEX7.5KW, topping the 3-inch range.
Maximum flow reaches 1,500 L/min, shutting off at 31 m head (44 PSI) on fresh-water viscosity liquids. Heavy-duty cast construction with a renewable suction cover houses a big open impeller for 24 mm solids, sealed Viton/carbon/alumina as standard.
Eliminating booster stations along classified transfer runs, the 7.5 kW three-phase 415 V flameproof motor carries ATEX certification in an IP55 frame on a steel base. The 3-inch suction and discharge lift 6 m on prime for whole-farm coverage from one pump.
The application set covers diesel and fuel-oil transfer in hazardous environments, with machinery, marine diesel, earth movers, mining plant and generator refuelling all included. It is also listed for heating-oil transfer and waste-oil collection at fixed facilities or mobile maintenance locations.
Features
- Booster-eliminating 7.5 kW 415 V three-phase ATEX motor with IP55 protection mounts based for long runs.
- Staging-free diesel transfer flows 1,500 L/min open, shutting off at 31 m (44 PSI). Self-priming lift is standard.
- Whole-farm 3-inch hydraulics with 24 mm solids passage cover tank farms from a single station.
- Pressure-rated fuel compatibility comes from Viton, carbon and alumina seals fitted as standard.
- On-prime 6 m lift from a single-pump layout simplifies station design and controls.
- Flameproof configuration is selected for diesel-transfer work in the listed hazardous-area applications.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 31 m |
| Power | 7.5 kW / 415v |
| Suitable For | Generator/Pump Refuelling |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the close-coupled motor interface with plant electrical switchboards to initiate shaft rotation?
Shaft propulsion for the Aussie Pumps ATEX Electric Explosion-Proof B3XR-A/ATEX (GB3XR-AATEX7.5KW) is supplied by an electric motor rated at 7.5 kW 415V 3-Phase, protected by a weatherproof terminal enclosure.
Why is an explosion proof motor required for transferring volatile solvents and fuels during solvent and fuel decanting?
Certified flameproof ATEX Ex-d motor construction on the GB3XR-AATEX7.5KW encloses electrical arcs, enabling safe operation in hazardous fuel and solvent vapor zones.
What vertical draw height can the suction chamber evacuate without an auxiliary foot valve once the casing is charged?
Operating with built-in priming dynamics, the GB3XR-AATEX7.5KW draws water from vertical depths up to 6 m without external priming equipment.
What diameter solid matter can flow through the internal waterways without stalling the wet end when pumping slurry runoff?
Spherical debris up to 24 mm in size clears the non-clog cast iron impeller on the GB3XR-AATEX7.5KW without obstructing discharge flow.
How much fluid volume can the wet end displace every minute when discharging into storage tanks?
Rated performance on the B3XR-A/ATEX (GB3XR-AATEX7.5KW) generates an open discharge of approximately 1500 L/min and achieves a total shut-off elevation of approximately 31 m.
