SKU: GB3ZPM-A/B 15KW

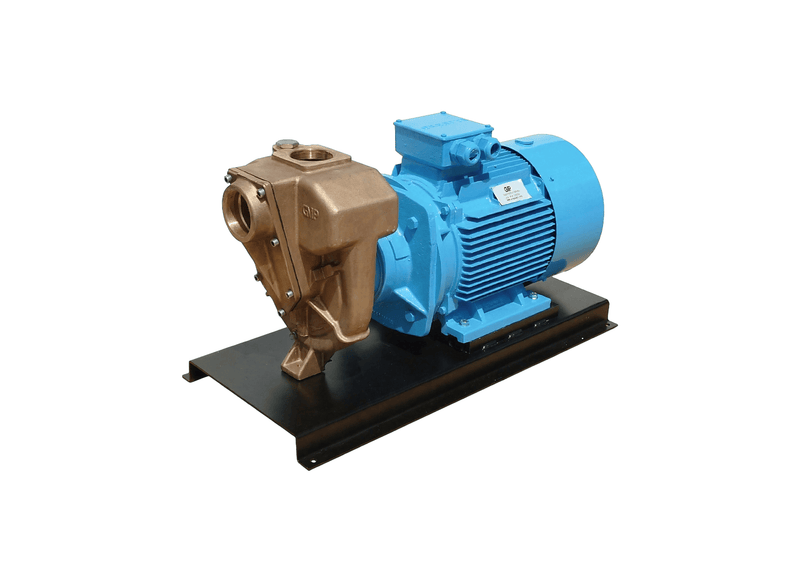

Aussie Pumps GMP GB3ZPM-A/B 15KW High-Head Nial Bronze Electric Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Ballast eductors and deck deluge branches run off this 15 kW closed-impeller bronze pump, winding a 65-metre shut-off head out of a compact 3-inch frame. High-head ZPM hydraulics rewrite what a small pump can lift. Eductor and deluge service specifies GB3ZPM-A/B 15KW for 65-metre bronze hydraulics.
Delivery reaches 1,200 L/min open flow, shutting off at 65 m head (92 PSI). Heavy-duty Mil-Spec equivalent cast nickel-aluminium bronze forms the casing and large open impeller for 13 mm solids, with carbon/alumina sealing, nitrile rubber and a 316 stainless casing.
Fixed wiring without lead or plug connects the IP55 15 kW electric-drive motor on its steel base plate, sized for eductor and deluge service. The 3-inch ports self-prime from 6 m, and the wearing surface renews through the replaceable suction cover.
Deck washdown, bilge pump-out, salvage pumping and marine air conditioning are the rated applications for this configuration. It supports the everyday movement of water around boat decks and machinery spaces, while also covering bilge clearing and emergency salvage work when conditions demand it. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Eductor-rated IP55 15 kW electric drive on a steel base plate is sized for deluge-branch service.
- Open flow of 1,200 L/min, shutting off at 65 m (92 PSI) rewrites what a small pump can lift.
- High-head ZPM bronze hydraulics to Mil-Spec equivalent standard deliver pressure far beyond frame size.
- Solids handling of 13 mm for supply water keeps eductor nozzles and branches clear.
- From-depth self-priming of 6 m with a renewable wearing surface suits fixed high-head stations.
- Chemical transfer is opened via Viton seal sets for dual-service eductor installations.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 65 m |
| Power | 15 kW / 415v |
| Suitable For | Marine Deck Washdown |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical suction capability is available when drawing water from pits when drafting from deep sumps?
Vertical suction capability on the Aussie Pumps Bronze Electric High Pressure Trash B3ZPM-A/B (GB3ZPM-A-B-15KW) reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
Which total liquid output and vertical elevation pressure does this unit achieve under full operating speed?
Under full operating throttle, the GB3ZPM A B 15KW generates a maximum fluid displacement rate of approximately 1200 L/min and reaches a maximum shut-off head of approximately 65 m.
How does the open vane impeller pass suspended particles without jamming internal channels across high volume transfer lines?
Debris-laden wastewater containing solids up to 13 mm across passes freely through the open nickel-aluminium bronze impeller fitted to the GB3ZPM-A/B 15KW.
Why is cast bronze chosen over iron for workboat deck washdown and bilge pump out without suffering pitting corrosion?
Seawater corrosion resistance on the GB3ZPM-A/B 15KW is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
Which line voltage and motor power rating operate this electric pump within outdoor switchboard setups?
Mechanical power on the B3ZPM-A/B (GB3ZPM-A/B 15KW) is delivered by an electric drive rated at 15 kW 415V 3-Phase, built for direct connection to site power.
