SKU: GB3ZPM-A/B18KW

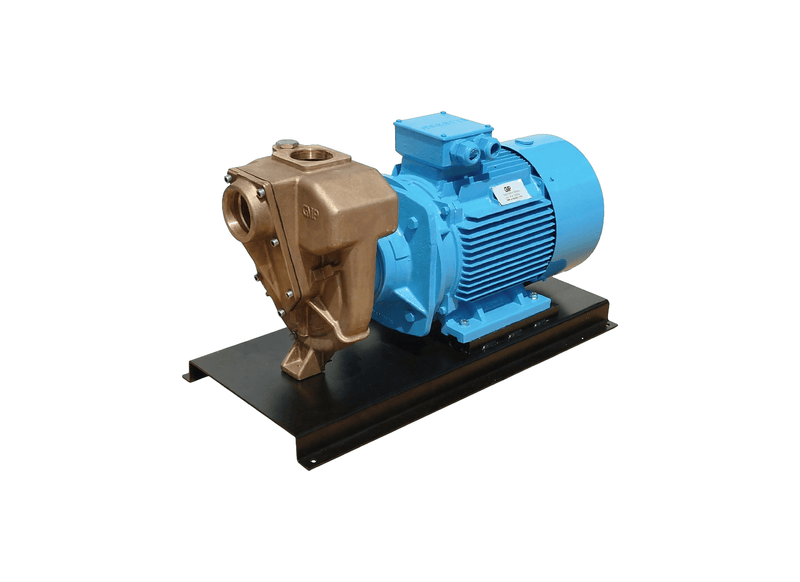

Aussie Pumps GMP GB3ZPM-A/B18KW High-Head Nial Bronze Three Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Extended rising mains and multi-level transfer duties sit comfortably inside this 18.5 kW bronze pump's 70-metre envelope, holding up to 1,200 litres a minute against shut-off heads that stop lesser pumps cold. Three-phase 415 V supply unlocks the full curve. Extended rising-main duty is covered by GB3ZPM-A/B18KW on three-phase 415 V supply.
Open-discharge capacity holds 1,200 L/min with shut-off at 70 m (100 PSI). The Mil-Spec equivalent heavy-duty cast nickel-aluminium bronze wet end mounts a large open impeller clearing 14 mm solids, sealed carbon-to-alumina with nitrile rubber in a 316 stainless casing.
Three-phase 415 V supply unlocks the full curve of the 18.5 kW IP55 motor, base-mounted on steel and wired through fixed connections with no lead or plug. Twin 3-inch waterways prime from 6 m depths, with the bolt-off suction cover taking wear instead of the casing.
Marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning duties place this unit where working boats need one pump to cover routine water management as well as emergency clearing. It suits washdown plumbing, bilge service and salvage work across commercial and recreational vessels. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Full-curve 18.5 kW 415 V IP55 motor on a steel base plate, fixed-wired, unlocks the complete performance curve.
- Maximum flow of 1,200 L/min, shutting off at 70 m (100 PSI) stops lesser pumps cold on the same main.
- Mil-Spec equivalent high-head bronze casing with an open impeller sustains continuous elevation duty.
- Solids passage of 14 mm for raw suction water protects long-main reliability.
- Casing-saving bolt-off cover with 6 m self-priming keeps wear costs to a single part.
- Same-sheet chemical duty follows once fitted Viton elastomers are specified for rising mains.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 70 m |
| Power | 18.5 kW / 415v |
| Suitable For | Bilge Pump-Out |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which line voltage and motor power rating operate this electric pump without requiring phase converters?
Shaft propulsion for the Aussie Pumps Bronze Electric High Pressure Trash B3ZPM-A/B (GB3ZPM-A-B18KW) is supplied by an electric motor rated at 18.5 kW 415V 3-Phase, protected by a weatherproof terminal enclosure.
Why is cast bronze chosen over iron for workboat deck washdown and bilge pump out during prolonged sea transfer?
Cast nickel-aluminium bronze metallurgy on the GB3ZPM A B18KW resists aggressive saltwater corrosion across marine decks, bilges, and oyster leases.
What vertical suction capability is available when drawing water from pits across routine site transfer duties?
Operating with built-in priming dynamics, the GB3ZPM-A/B18KW draws water from vertical depths up to 6 m without external priming equipment.
Can this semi trash pump pass slurry debris and spherical particles freely during dirty liquid transfer?
An open non-clog nickel-aluminium bronze impeller on the GB3ZPM-A/B18KW passes spherical solids and debris up to 14 mm in diameter without choking internal water passages.
Which total liquid output and vertical elevation pressure does this unit achieve across long transfer runs?
Rated performance on the B3ZPM-A/B (GB3ZPM-A/B18KW) generates an open discharge of approximately 1200 L/min and achieves a total shut-off elevation of approximately 70 m.
