SKU: GB3ZPM-A/ST 22KW

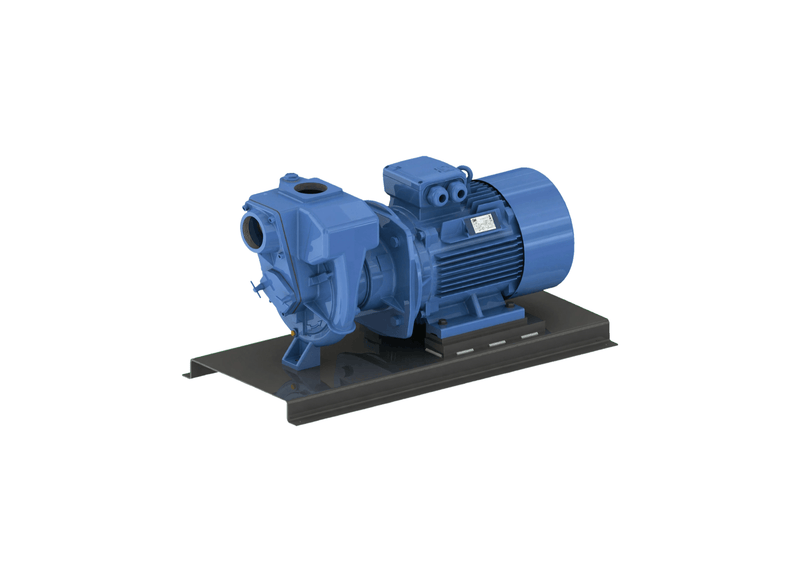

Aussie Pumps GMP GB3ZPM-A/ST 22KW Cast Iron Three Phase High-Head Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine tailing runoff sumps, high-head dirty water elevation, and processing plants deploy the premier Aussie GMP B3ZPM-A/ST motor-driven unit . A heavy structural steel bedplate holds structural shaft alignment under extraordinary continuous pressure loads.
Extraordinary hydraulic delivery reaches an open-discharge flow of 1,250 L/min at zero static head and produces a 78 m (111 PSI) shut-off head at zero flow. An open semi-trash impeller passes suspended compressible and spherical solids up to 19 mm without jamming.
Severe-duty rotational drive originates from a 22 kW three-phase 415 V TEFC electric motor rated to IP55, supplied unwired without a lead or plug for panel isolator wiring. Internal self-priming passages pull dirty water from 6 m vertical depths without foot valves.
Hardened silicon carbide seal faces with an alumina counterface endure abrasive particulate at fluid temperatures up to 70°C intermittently. A replaceable suction port protects the casing against slurry wear. Backed by Aussie Pumps 3-year GMP warranty.
Features- Maximum head in the semi-trash range: achieves up to 78 m maximum shut-off head (111 PSI).
- Delivers high-volume throughput up to 1,250 L/min open discharge at zero static head.
- Large 19 mm solids handling capacity passes heavy suspended solids without binding.
- Cast 22 kW three-phase 415 V TEFC motor configured for IP55 standards for continuous service.
- Mounted on a heavy structural steel base plate for rock-solid stability and vibration dampening.
- Hard silicon carbide mechanical seal resists abrasive wear in dirty water transfer.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 1250 L/Min |
| Max Head | 78 m |
| Power | 22 kW / 415v |
| Suitable For | Mine Water Supply |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What operational advantage does seventy eight metres of head provide on mine sites?
For the Aussie Pumps GMP High Head Semi-Trash B3ZPM-A/ST (GB3ZPM-A/ST 22KW), seventy-eight metres of elevation head allows operators to push dense mineral slurries across long overland disposal lines and over ridgelines.
What electrical phase connection and line voltage are needed on site?
The GB3ZPM-A/ST 22KW requires a three-phase 415 V plant electrical hookup capable of supporting a 22 kW electric motor drawing full rated current.
Is manual line priming required every time the pump is switched on?
No manual line priming is needed on the GB3ZPM-A-ST-22KW because the internal chamber evacuates air automatically to re-prime up to 6 m vertical depth.
How quickly can operators inspect and clean out the wet end when moving heavy slurries?
A heavy front cleanout hatch on the GB3ZPM A ST 22KW unbolts swiftly to expose internal chambers for rapid clearing of debris without pipe disconnection.
How much fluid discharge volume and vertical pressure head are rated on this unit?
Discharge throughput for the B3ZPM-A/ST (GB3ZPM-A/ST 22KW) reaches up to approximately 1250 L/min at peak volume while developing a maximum elevation head of approximately 78 m.
