SKU: GB3ZPM-A/ST15KW

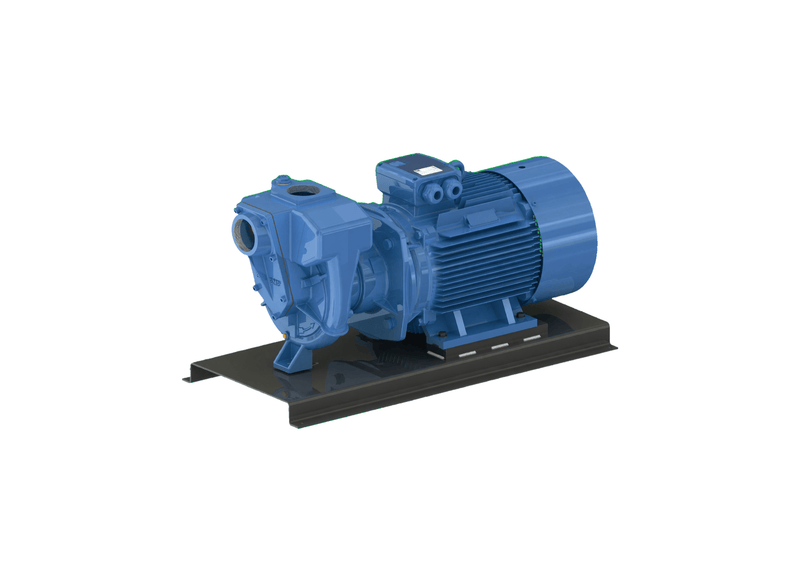

Aussie Pumps GMP GB3ZPM-A/ST15KW Cast Iron Three Phase High-Head Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine pit dewatering, elevated industrial slurry discharge, and abattoir washdown manifolds deploy the Aussie GMP B3ZPM-A/ST motor-driven unit . An ultra-heavy steel channel bed anchors the assembly, preventing deflection under severe hydraulic momentum.
High-head volume reaches an impressive 1,250 L/min open discharge at zero elevation, accompanied by a 64 m (91 PSI) shut-off head at zero flow. The close-grained cast iron casing encloses an open semi-trash impeller configured for handle suspended solids up to 13 mm.
Severe plant power is delivered by a 15 kW three-phase 415 V TEFC motor rated to IP55, supplied unwired without a lead or plug for direct control panel hardwiring. Centrifugal self-priming passages pull liquid from 6 m vertical depths without a suction foot valve.
Hard-faced silicon carbide seals and a replaceable suction port protect the wet end against slurry abrasion up to 70°C intermittently. Threaded 3-inch BSP ports allow rapid piping connection. Backed by Aussie Pumps 3-year factory GMP warranty coverage.
Features- Extra-high-head semi-trash output reaching 64 m maximum shut-off head (91 PSI).
- Delivers high-volume throughput up to 1,250 L/min open discharge at zero static head.
- Processes abrasive suspended particles and solids up to 13 mm without pump binding.
- Cast 15 kW three-phase 415 V TEFC motor configured for IP55 standards for continuous service.
- Channel-steel base plate isolates mechanical vibration and holds coupling alignment.
- Hard silicon carbide mechanical shaft seal resists abrasive wear in dirty water transfer.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid displacement capacity and head elevation boundary does this pump provide?
Operating across its performance curve, the Aussie Pumps GMP High Head Semi-Trash B3ZPM-A/ST (GB3ZPM-A/ST15KW) discharges up to approximately 1250 L/min in open flow and develops a maximum dynamic head of approximately 64 m.
How does sixty four metres of head pressure overcome deep shaft ascents?
On the GB3ZPM-A/ST15KW, high centrifugal pressure pushes heavy bentonite and rock slurries up steep vertical rises directly to surface containment ponds.
What electrical supply standards and phase requirements run the motor drive?
Mechanical power for the GB3ZPM-A-ST15KW is supplied by an electric motor rated at 15 kW, operating on three-phase 415 V power within an IP55 frame.
From what maximum vertical elevation can the unit draft fluid from ditches?
Once filled with liquid, the self-priming chamber of the GB3ZPM A ST15KW pulls water vertically from depths up to 6 m without requiring an intake foot valve.
What particle dimensions can the high head impeller convey without choking?
For the B3ZPM-A/ST (GB3ZPM-A/ST15KW), the open non-clog impeller geometry passes spherical stones, debris, and solid particles up to 13 mm in diameter without clogging.
