SKU: GB4KQ-A/B 4KW

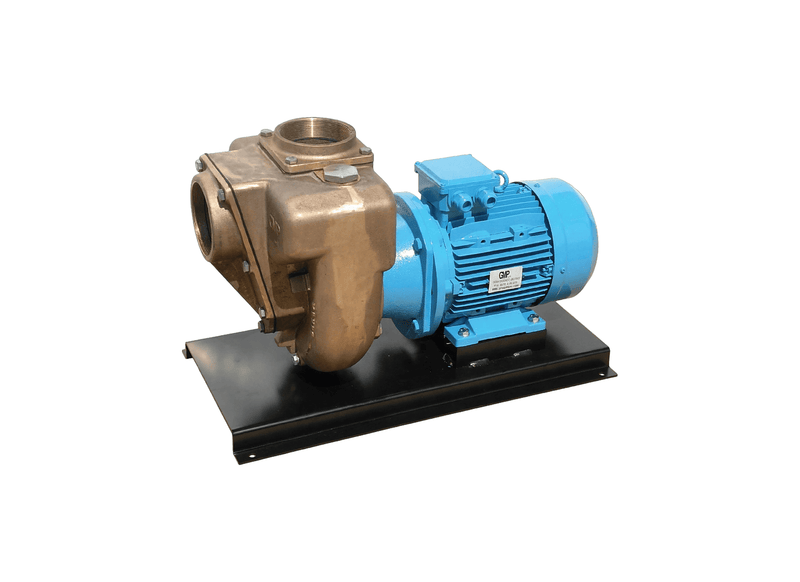

Aussie Pumps GMP GB4KQ-A/B 4KW Nial Bronze Three Phase High-Volume Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Fish-hold pump-out and dry-dock flood response call for volume over pressure, and this 4-inch 4 kW bronze pump answers with 1,650 litres a minute through full-bore 4-inch ports. Big water moves fast when heads stay low. Volume-first 4-inch pumping is ordered as GB4KQ-A/B 4KW for holds, docks and flood response.
Open flow peaks at 1,650 L/min, shutting off at 15 m head (21 PSI). The Mil-Spec equivalent cast nickel-aluminium bronze casing and large open impeller pass solids to 35 mm, sealed by carbon on alumina with nitrile rubber in a 316 stainless casing.
Fixed wiring meets the 4 kW three-phase 415 V IP55 motor on its steel base plate, with no lead or plug in the box for permanent installation. Full-bore 4-inch waterways self-prime from 6 m, making silt wear a consumable repair on the replaceable cover.
Marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning duties place this unit where working boats need one pump to cover routine water management as well as emergency clearing. It suits washdown plumbing, bilge service and salvage work across commercial and recreational vessels. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Permanent-installation 4 kW 415 V IP55 motor on a steel base plate needs only fixed wiring, with no lead supplied.
- Open flow of 1,650 L/min, shutting off at 15 m head (21 PSI) moves big water fast when heads stay low.
- Full-bore 4-inch porting in Mil-Spec equivalent bronze gives unrestricted flow with total corrosion immunity.
- Solids appetite of 35 mm through the open bronze impeller clears fish waste, weed and flood debris.
- Self-priming of 6 m with a consumable-repair suction cover makes silt wear an inexpensive service item.
- Seawater-to-chemical flexibility follows once Viton seals are specified for dual transfer duty.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1650 L/Min |
| Max Head | 15 m |
| Power | 4 kW / 415v |
| Suitable For | Marine Air Conditioning |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum diameter debris particles travel through the internal waterways without choking during routine excavation drainage?
Equipped with an open nickel-aluminium bronze semi-trash impeller geometry, the Aussie Pumps Bronze Electric Transfer B4KQ-A/B (GB4KQ-A-B-4KW) clears solid matter up to 35 mm in diameter without jamming internal channels.
How deep can this self priming pump draw water from underground sumps across routine site transfer duties?
The self-priming wet end on GB4KQ A B 4KW lifts liquid automatically from depths down to 6 m.
What advantages does cast bronze construction provide for oyster leases and fish farming without suffering pitting corrosion?
Seawater corrosion resistance on the GB4KQ-A/B 4KW is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
How many litres per minute and vertical metres can this wet end deliver when discharging into storage tanks?
Operating across its performance curve, the GB4KQ-A/B 4KW discharges a maximum flow rate of approximately 1650 L/min and develops a maximum elevation head of approximately 15 m.
What incoming voltage and phase supply are required to operate this motor within outdoor switchboard setups?
Mechanical power on the B4KQ-A/B (GB4KQ-A/B 4KW) is delivered by an electric drive rated at 4 kW 415V 3-Phase, built for direct connection to site power.
