Roll over image to zoom
SKU: GB4KQ-A/ST 4KW

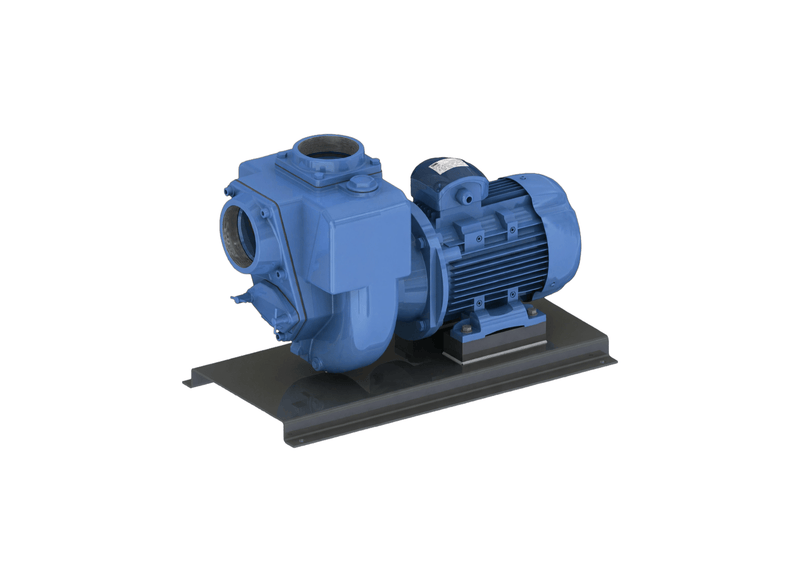

Aussie Pumps GMP GB4KQ-A/ST 4KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil excavations, municipal drainage lines, and food processing sumps deploy the Aussie GMP B4KQ-A/ST motor-driven unit for wide large-inch waste movement. A heavy channel-steel base plate delivers steady foundation anchoring under continuous plant cycles.
Pumping volume reaches an impressive 1,600 L/min open discharge at zero elevation, accompanied by a 14 m (20 PSI) shut-off head at zero flow. The heavy cast iron chamber houses an open trash-style impeller that clears suspended solids up to 37 mm with ease.
Electric shaft power is supplied by a 4 kW three-phase 415 V TEFC motor rated to IP55 enclosure protection, supplied unwired for direct plant switchboard wiring. Centrifugal self-priming action draws fluid from 6 m vertical depths without an intake foot valve.
Cast volute durability is protected by close-grained cast iron, a 316 stainless shaft, and a silicon carbide seal rated for 70°C liquid temperatures intermittently. A front clean-out cover unbolts easily for rapid de-silting. 3-year commercial GMP warranty coverage.
Features- Large-volume 37 mm spherical solids clearance stops blockages from large suspended waste.
- High-capacity 4-inch porting achieves open discharge throughput up to 1,600 L/min.
- Efficient 4 kW three-phase 415 V TEFC motor rated to IP55 for continuous industrial duty.
- Develops a 14 m maximum shut-off head (20 PSI) at zero flow.
- Structural channel-steel base plate delivers shaft alignment and dampens operational vibration.
- Front clean-out port allows instant chamber clearing without pipe disconnection.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 14 m |
| Power | 4 kW / 415v |
| Suitable For | Food Waste |
| Body Material | Cast Iron |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What solid particle clearance capability is engineered into the semi trash volute?
Large internal water passages on the Aussie Pumps GMP Semi-Trash B4KQ-A/ST (GB4KQ-A/ST 4KW) pass suspended solids, mulch, and stones up to 37 mm in diameter without restricting water movement.
What port threading and pipe coupling dimensions are cast into the volute?
Suction and delivery ports on the GB4KQ-A/ST 4KW incorporate four-inch female BSP threads, enabling connection to standard site transfer lines and camlocks.
How is mechanical power delivered to the pump shaft assembly?
Propulsion for the GB4KQ-A-ST-4KW is provided by a three-phase electric drive rated at 4 kW on 415 V line voltage, sealed within an IP55 terminal casing.
Is an external foot valve necessary to establish suction on incoming pipework?
No foot valve is required on the GB4KQ A ST 4KW on the suction line because internal chambers evacuate air to establish prime up to 6 m vertical depth.
What discharge volume capacity and maximum static head apply across the performance curve?
Peak volumetric displacement for the B4KQ-A/ST (GB4KQ-A/ST 4KW) reaches up to approximately 1600 L/min, with total elevation head developing up to approximately 14 m.
