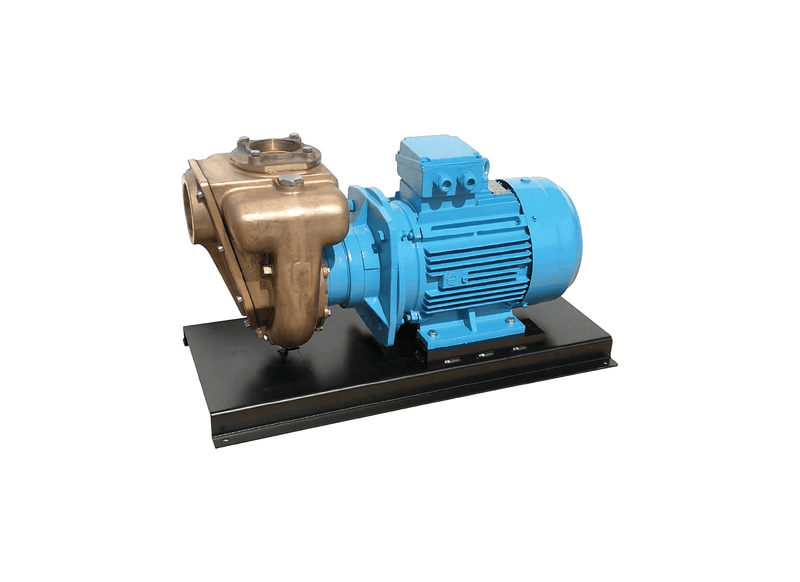

Aussie Pumps GMP GB4XR-A/B 15KW3P Nial Bronze 4" Ports Three Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Flagship dewatering for graving docks and offshore ballast systems rides on this 15 kW bronze pump, pairing the range's biggest solids appetite at 39 mm with 2,250 litres a minute. Nothing smaller clears a fouled dock sump faster. Flagship dock dewatering is specified as GB4XR-A/B 15KW3P for graving docks and ballast stations.
Open-discharge capacity holds 2,250 L/min, shutting off at 31 m head (44 PSI). The Mil-Spec equivalent heavy-duty cast nickel-aluminium bronze wet end mounts a large open impeller for 39 mm solids, sealed carbon-to-alumina with nitrile rubber in a 316 stainless casing.
Starter-panel wiring is the only site work needed: the 15 kW three-phase 415 V IP55 motor arrives lead-free on its steel base plate. The 4-inch ports self-prime from 6 m depths, isolating wear to a single bolt-off suction cover.
Deck washdown, bilge pump-out, salvage pumping and marine air conditioning are the rated applications for this configuration. It supports the everyday movement of water around boat decks and machinery spaces, while also covering bilge clearing and emergency salvage work when conditions demand it. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Minimal site work is needed: the lead-free 15 kW 415 V IP55 motor arrives base-mounted on steel.
- Rated at 2,250 L/min open flow with 31 m maximum shut-off head (44 PSI), this flagship pairs volume with genuine pressure.
- Mil-Spec equivalent bronze casing with a large open impeller gives the range's biggest solids appetite.
- Record solids capacity of 39 mm clears fouled dock sumps faster than anything smaller.
- Self-priming of 6 m with single-part wear isolation keeps the flagship working through silt and weed.
- Viton specification unlocks AdBlue and corrosive chemical transfer on the same pump.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 2250 L/Min |
| Max Head | 31 m |
| Power | 15 kW / 415v |
| Suitable For | Bilge Pump-Out |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What advantages does cast bronze construction provide for oyster leases and fish farming across coastal workboat duties?
The bronze wet end of the Aussie Pumps Bronze Electric Transfer B4XR-A/B (GB4XR-A-B-15KW3P) suits marine environments.
What incoming voltage and phase supply are required to operate this motor across local power connections?
Incoming electrical supply operates the GB4XR A B 15KW3P through an electric motor delivering 15 kW 415V 3-Phase.
What maximum fluid displacement rate and shut off ceiling are developed through connected piping?
Discharge performance for the GB4XR-A/B 15KW3P yields an open flow volume of approximately 2250 L/min and reaches a maximum shut-off elevation of approximately 31 m.
Does the suction line require a foot valve to draft liquid from below ground once the casing is charged?
Built-in priming passages on the GB4XR-A/B 15KW3P draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What maximum diameter debris particles travel through the internal waterways without choking across high volume transfer lines?
Debris-laden wastewater containing solids up to 39 mm across passes freely through the open nickel-aluminium bronze impeller fitted to the B4XR-A/B (GB4XR-A/B 15KW3P).
