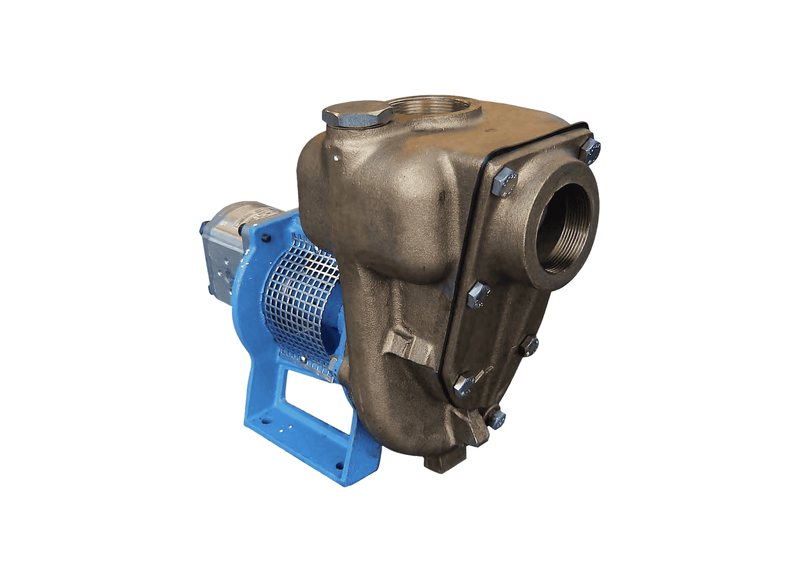

Aussie Pumps GMP GB4XR-A/B HYD Nial Bronze 4" Ports Hydraulic Self-Priming Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Flagship hydraulic transfer in corrosive service moves up to 2,200 litres a minute through this 4-inch bronze pump, holding a 30-metre shut-off head, on 12.5 kW of hydraulics. The biggest bronze hydraulic in the range. Flagship corrosive transfer in bronze is GB4XR-A/B HYD, biggest of the bronze hydraulics.
Peak flow touches 2,200 L/min, shutting off at 30 m head (43 PSI). Nial bronze construction with an open non-clog impeller resists seawater and mine water, sealed by carbon/alumina with nitrile rubber.
Twelve and a half kilowatts of carrier hydraulics feed the largest bronze frame: 34 cm3/rev at 100 bar becomes up to 2,200 litres a minute, shutting off at 30 metres. The 100 mm waterways self-prime from 6 m, and wear damage renews at the replaceable suction port.
The listed applications cover marine pumping, mine dewatering, general water transfer and fire fighting. It is suited to moving water aboard vessels, clearing mine water, transferring supply between tanks or locations and maintaining a practical fire-water pumping option on remote worksites.
Features
- Frame-max demand of 34 cm3/rev at 100 bar (12.5 kW) powers the largest bronze hydraulic frame.
- Scale corrosive transfer peaks at 2,200 L/min, shutting off at 30 m (43 PSI).
- Largest-in-range 4-inch Nial bronze wet end gives maximum corrosion-proof flow area available.
- Open non-clog impeller for corrosive volume passes mine and seawater solids reliably.
- Damage-renewing replaceable suction port with 6 m self-priming keeps the flagship earning.
- At 65 kg, the package can be planned around appropriate lifting, skid or fixed-installation arrangements.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which open discharge throughput and shut off elevation ceiling does this wet end develop when discharging into storage tanks?
Operating across its performance curve, the Aussie Pumps Bronze Hydraulic Transfer B4XR-A/B (GB4XR-A-B-HYD) discharges a maximum flow rate of approximately 2200 L/min and develops a maximum elevation head of approximately 30 m.
Can the wet end clear slurry solids and small stones without choking internal channels during dirty liquid transfer?
Debris-laden wastewater passes freely through the open nickel-aluminium bronze impeller fitted to the GB4XR A B HYD.
What auxiliary oil specifications are required to operate the hydraulic drive across mobile carrier equipment?
Shaft rotation on the GB4XR-A/B HYD is driven by a heavy hydraulic motor built to interface directly with mobile machinery hydraulic systems.
How effectively can the wet end evacuate air from long intake hose runs across routine site transfer duties?
Vertical suction capability on the GB4XR-A/B HYD reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How does the bronze impeller withstand cavitation erosion when drafting ocean water across marine operating environments?
Seawater corrosion resistance on the B4XR-A/B (GB4XR-A/B HYD) is achieved through cast nickel-aluminium bronze construction across the volute and impeller.
