SKU: GB4XR-A/ST 11KW

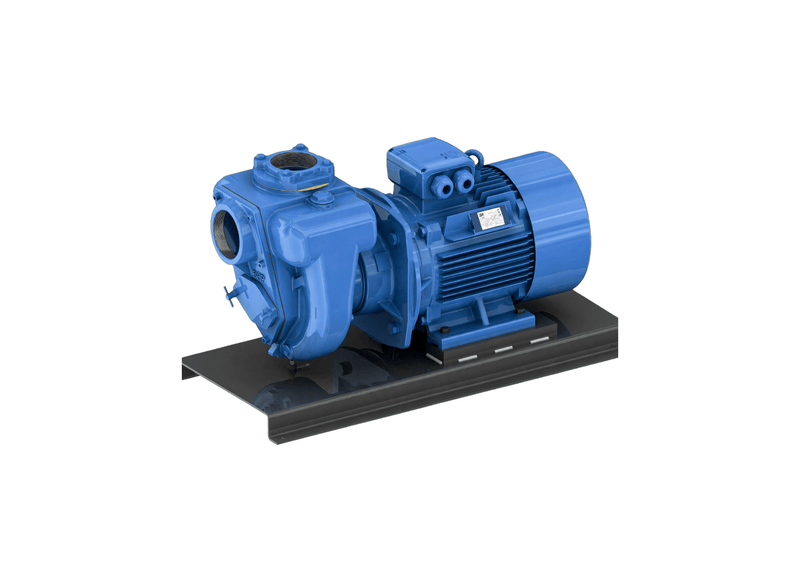

Aussie Pumps GMP GB4XR-A/ST 11KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Heavy quarry sumps, mining pits, and industrial wastewater plants rely on the Aussie GMP B4XR-A/ST motor-driven unit for solids-laden slurry movement. Its braced steel base frame absorbs hydraulic thrust, maintaining flawless motor shaft alignment.
High-volume delivery moves up to 2,200 L/min under open-flow conditions, while maximum shut-off head reaches 30 m (43 PSI) at zero flow. The cast iron wet end encloses a cast open non-clog impeller that transfers suspended particulate and grit up to 35 mm cleanly.
High-torque drive power originates from an 11 kW three-phase 415 V TEFC motor with IP55 ingress protection, supplied unwired without a lead or plug for control panel hardwiring. Rapid self-priming pulls liquid from 6 m vertical depths without requiring a foot valve.
A replaceable stainless steel wear plate and 316 stainless shaft safeguard the cast iron volute against slurry erosion up to 70°C intermittently. Front clean-out doors streamline de-clogging without pipe removal. Supported by Aussie Pumps nationwide 3-year warranty.
Features- Industrial 11 kW three-phase 415 V TEFC motor with IP55 protection for severe plant duties.
- Generous 35 mm solids clearance processes heavy grit and compressible industrial waste.
- Pumping throughput delivers up to 2,200 L/min open discharge with 30 m shut-off head (43 PSI).
- Self-primes reliably from vertical suction lifts up to 6 m without external priming aids.
- Structural channel-steel base plate holds mechanical structurality under continuous service.
- Front-mounted clean-out hatch enables rapid volute inspection without unbolting pipe runs.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 2200 L/Min |
| Max Head | 30 m |
| Power | 11 kW / 415v |
| Suitable For | Raw Sewage |
| Body Material | Cast Iron |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What line voltage and phase connection operate this electric drive motor?
Mechanical power for the Aussie Pumps GMP Semi-Trash B4XR-A/ST (GB4XR-A/ST 11KW) is supplied by an electric motor rated at 11 kW, operating on three-phase 415 V power within an IP55 frame.
How much water throughput and total elevation head does this electric pump deliver?
The hydraulic wet end of the GB4XR-A/ST 11KW produces a maximum fluid displacement of approximately 2200 L/min and reaches an elevation head of approximately 30 m.
Can stringy matter and suspended solid particles pass freely through the wet end?
For the GB4XR-A-ST-11KW, an open ductile iron impeller clears fibrous solids, slurry, and spherical debris up to 35 mm in diameter without choking.
How does the structural base mounting support vibration damping during pumping?
A heavy channel steel base plate anchors the GB4XR A ST 11KW, anchors the 217 kg assembly, maintaining precise shaft alignment during prolonged site operation.
How are debris obstructions and tangled solids cleared from the pump casing?
A large front cleanout cover on the B4XR-A/ST (GB4XR-A/ST 11KW) allows direct access to the impeller chamber for clearing tangled solids without uncoupling four-inch lines.
