SKU: GB4XR-A/ST 15KW

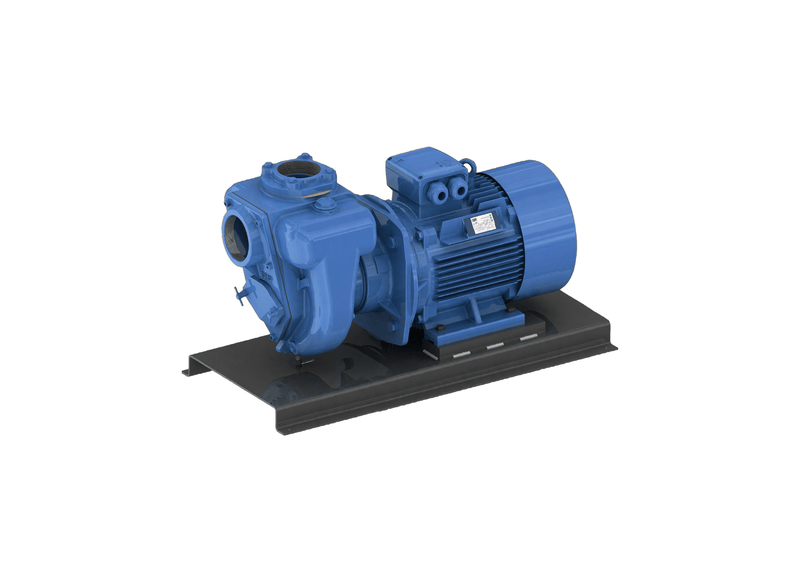

Aussie Pumps GMP GB4XR-A/ST 15KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Deep open-cut sumps, abattoir processing pits, and quarry wash plants utilize the Aussie GMP B4XR-A/ST motor-driven unit for high-capacity slurry evacuation. Its structural structural channel-steel foundation dampens vibration across heavy pumping intervals.
Volumetric throughput achieves an strong open-discharge volume of 2,300 L/min at zero static head and builds a 32 m (46 PSI) shut-off head at zero flow. An open non-clog semi-trash impeller passes heavy suspended slurry solids up to 39 mm without volute choking.
High-voltage motoring torque is delivered by a 15 kW three-phase 415 V TEFC motor rated to IP55 washdown protection, supplied unwired for direct plant installations. The internal casing picks up self-priming suction from 6 m depths without an intake foot valve.
Tough silicon carbide mechanical seal faces with an alumina counterface endure abrasive particulate at fluid temperatures up to 70°C intermittently. A front inspection cover allows rapid de-silting without disturbing 4-inch pipe runs. 3-year factory GMP warranty.
Features- Large 39 mm solids handling capacity passes heavy suspended solids without binding.
- Achieves large-volume 2,300 L/min open discharge volume and reaches a 32 m shut-off head (46 PSI).
- Self-primes from vertical suction depths of 6 m through high-volume internal volute passages.
- Cast channel-steel base plate dampens vibration and retains coupling alignment.
- Quick-release front clean-out hatch allows fast debris clearing without pipe disassembly.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 2300 L/Min |
| Max Head | 32 m |
| Power | 15 kW / 415v |
| Suitable For | Raw Sewage |
| Body Material | Cast Iron |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum diameter spherical stones can pass through the non clog four inch impeller?
For the Aussie Pumps GMP Semi-Trash B4XR-A/ST (GB4XR-A/ST 15KW), the open non-clog impeller geometry passes spherical stones, debris, and solid particles up to 39 mm in diameter without clogging.
What suction lift height can operators utilize when draining deep site pits?
The self-priming chamber of the GB4XR-A/ST 15KW pulls water vertically from depths up to 6 m without requiring an intake foot valve once initially filled.
Which electrical supply connections and motor rating are needed for installation?
Installation of the GB4XR-A-ST-15KW requires a three-phase 415 V electrical connection capable of powering a 15 kW electric motor with IP55 ingress protection.
Which mechanical seal faces and elastomers safeguard against abrasive wear?
A silicon carbide mechanical seal on the GB4XR A ST 15KW with an alumina counterface and nitrile elastomers protects the shaft against erosive slurry liquid.
What peak volumetric delivery and shut off head are developed across site pipework?
Volumetric output for the B4XR-A/ST (GB4XR-A/ST 15KW) reaches up to approximately 2300 L/min, while maximum shut-off head develops up to approximately 32 m across its performance curve.
