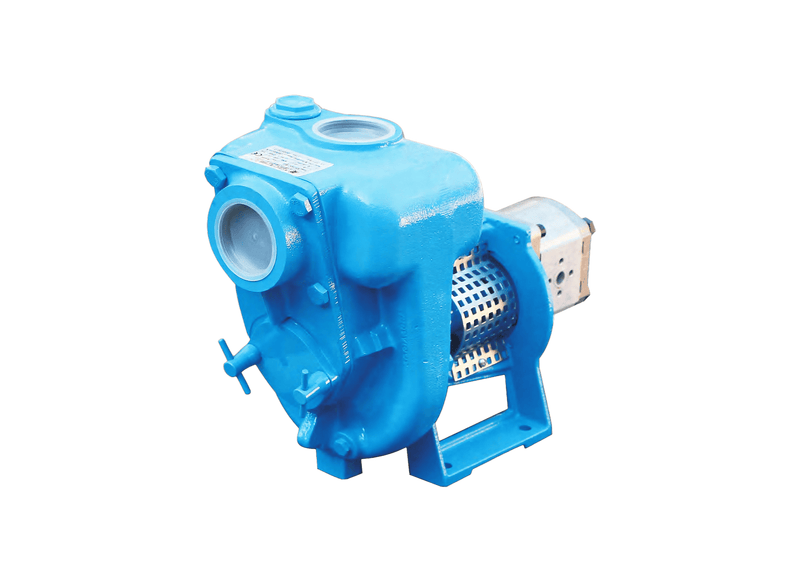

Aussie Pumps GMP GB4XR-A/ST HYD Cast Iron 4" Ports Hydraulic Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
The biggest hydraulic trash pump in the range shifts up to 2,200 litres a minute through 4-inch ports; shut-off head is 30 metres off a 12.5 kW hydraulic supply. Nothing mobile moves more water. Most mobile water in the range is GB4XR-A/ST HYD, the 4-inch hydraulic flagship.
Peak flow reaches 2,200 L/min open discharge, shutting off at 30 m head (43 PSI). Cast-iron construction with an open non-clog impeller works full-bore 100 mm suction and discharge, self-priming from 6 m.
Nothing mobile moves more water: 34 cm3/rev at 100 bar (12.5 kW) drives station-scale 2,200 litres a minute with a 30-metre shut-off head, for the range flagship. Continuous heavy duty mounts at 65 kg, with full-bore 100 mm suction and discharge self-priming from 6 m.
Mine dust suppression, water-cart filling, fire-fighting supply and mine dewatering are the listed duties for this hydraulic configuration. It fits mobile water-cart work, fixed dust-control lines, emergency fire-water provision and routine removal of accumulated water from active mine areas and sumps.
Features
- Flagship-scale demand of 34 cm3/rev at 100 bar (12.5 kW) drives station-scale mobile flow.
- Catalogue-leading mobile flow peaks at 2,200 L/min, shutting off at 30 m (43 PSI).
- Largest hydraulic trash frame with 100 mm ports moves filtered-flood volumes on carriers.
- Station-scale cast-iron body with an open non-clog impeller is built for continuous heavy duty.
- Heavy-duty 65 kg mounting with 6 m self-priming keeps the flagship stable at full output.
- Cast iron construction is selected to suit the listed liquid-transfer application.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does wide-passage impeller geometry keep sediment and debris from accumulating when pumping slurry runoff?
Equipped with an open cast iron semi-trash impeller geometry, the Aussie Pumps Hydraulic Semi-Trash B4XR-A/ST (GB4XR-A-ST-HYD) clears solid matter up to 39 mm in diameter without jamming internal channels.
Is manual suction line priming necessary when drawing fluid from underground tanks across routine site transfer duties?
The self-priming wet end on GB4XR A ST HYD lifts liquid automatically from depths down to 6 m.
What design feature allows swift cleanout access without uncoupling connected pipework during routine blockage removal?
Internal waterways and the impeller of the GB4XR-A/ST HYD can be cleared rapidly through the front inspection hatch without disconnecting site hoses.
How many litres of liquid per minute and vertical metres of head are rated under full operating speed?
Operating across its performance curve, the GB4XR-A/ST HYD discharges a maximum flow rate of approximately 2200 L/min and develops a maximum elevation head of approximately 30 m.
What hydraulic motor parameters govern connection to mobile machinery takeoffs without requiring an auxiliary fuel engine?
The B4XR-A/ST (GB4XR-A/ST HYD) couples directly to a hydraulic motor drive, drawing fluid power from carrier vehicle auxiliary hydraulics without needing an auxiliary fuel engine.
