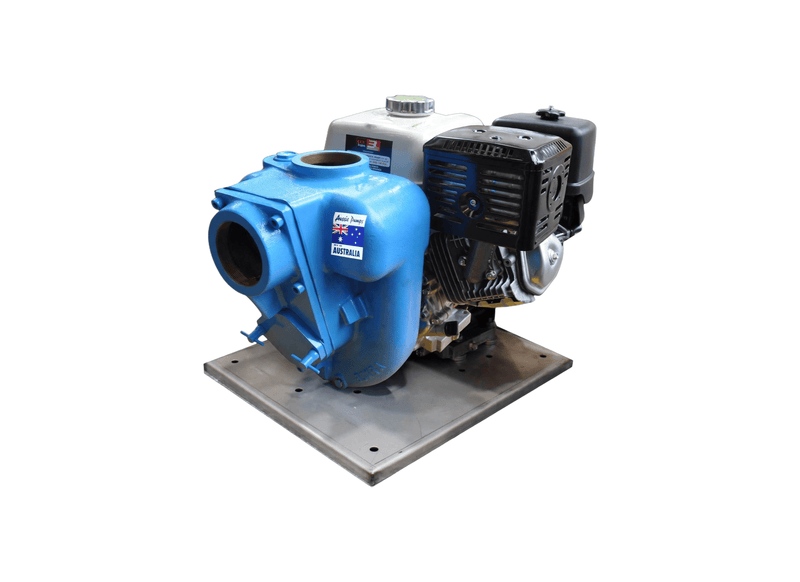

Aussie Pumps GMP GB4XR-A/ST/KD625M Mine Spec Cast Iron Semi-Trash Pump with Kohler Diesel Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine-spec dewatering rides on this Kohler-powered 4-inch trash pump, winding 25 diesel horsepower into up to 2,300 litres a minute, shutting off at 29 metres. The KD625M Mine Spec badge means business in the pit. Mine Spec pit business runs GB4XR-A/ST/KD625M on 25 HP Kohler KD625 diesel.
Open-discharge capacity holds 2,300 L/min, shutting off at 29 m head (41 PSI). The cast-iron B4XR-A/ST wet end runs an open non-clog style impeller listed for 38 mm solids through 100 mm ports.
Twenty-five diesel horsepower from the Kohler KD625 with electric start winds into up to 2,300 litres a minute, shutting off at 29 metres for Mine Spec pit work. Fluctuating sump levels pose no problem for the self-priming suction behind 100 mm ports.
For quarry and contractor work, the listed duties cover wastewater pumping, dust suppression, water-cart filling, fire fighting and dewatering. It is suited to managing water across changing site conditions, from dirty-water removal and quarry drainage to water-cart supply and dust-control operations.
Features
- Pit-business 25 HP Kohler KD625 Mine Spec diesel with electric start winds out station-scale flow.
- Open flow of 2,300 L/min, shutting off at 29 m (41 PSI) dewaters pits at flagship volume.
- Mine-tough cast-iron 4-inch wet end with 38 mm solids handles the harshest pit inflows.
- Level-proof self-priming suction with 100 mm ports works through fluctuating sump levels.
- Spec-badged Mine Spec build signals pit-ready engineering throughout the entire heavy package.
- Electric start supports rapid deployment of the engine-driven package at paddock, quarry and marine sites.
- Covered by the 3 year Aussie Pumps pump warranty and 2 year Kohler engine warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid volume per minute and total dynamic elevation head are generated when discharging into storage tanks?
Discharge performance for the Aussie Pumps Diesel Mine Spec Semi-Trash B4XR-A/ST (GB4XR-A-ST-KD625M) yields an open flow volume of approximately 2300 L/min and reaches a maximum shut-off elevation of approximately 29 m.
How do open impeller vanes keep fibrous matter from winding around the drive shaft during dirty liquid transfer?
The open vane cast iron impeller on the GB4XR A ST KD625M clears dirty site runoff and solid debris up to 38 mm in diameter without stalling the shaft.
Which engine propulsion and starting mechanism drive the pump shaft during off-grid dewatering duties?
Shaft rotation on the GB4XR-A/ST/KD625M is supplied by a diesel engine package, delivering extended run times and high torque for remote dewatering.
What vertical suction lift does the self priming mechanism achieve across dry starts during everyday operations?
Built-in priming passages on the GB4XR-A/ST/KD625M draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
Can site operators clear clogged weed and debris without disconnecting suction hoses during routine blockage removal?
Internal waterways and the impeller of the B4XR-A/ST (GB4XR-A/ST/KD625M) can be cleared rapidly through the front inspection hatch without disconnecting site hoses.
