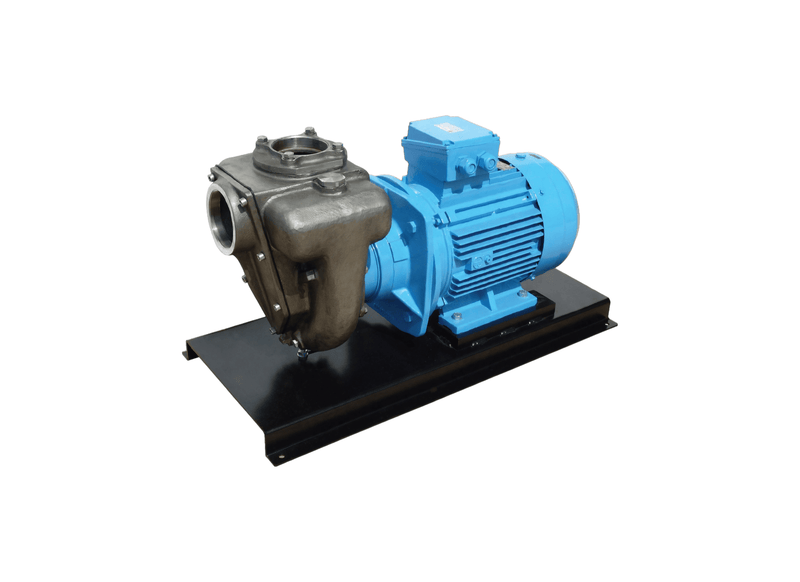

Aussie Pumps GMP GB4XR-A/X 11KW Stainless Steel Three Phase Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Chemical refineries, mining tailing ponds, and industrial wash bays utilize the wide-port Aussie GMP B4XR-A/X motor-driven unit in cast large stainless steel. Its heavy structural channel-steel foundation absorbs continuous thrust across high-volume pumping cycles.
Bulk corrosive volume reaches an impressive 2,010 L/min open discharge at zero head, producing a 26 m (37 PSI) shut-off head at zero flow. The cast 316 stainless steel wet end houses an open trash-style impeller that clears suspended chemical solids up to 27 mm cleanly.
High-torque propulsion originates from an 11 kW three-phase 415 V TEFC motor with IP55 enclosure protection, supplied unwired without a lead or plug for isolator integration. Rapid self-priming lifts acidic wastewater from 6 m vertical depths without a foot valve.
Chamber wear defense includes a replaceable 316 stainless suction cover and 316 SS-encased mechanical seal handling liquid temperatures up to 70°C intermittently. Full 4-inch BSP ports allow rapid piping hookups. Backed by Aussie Pumps 3-year warranty.
Features- Large-capacity open-discharge volume up to 2,010 L/min through 4-inch ports for bulk chemical transfer.
- Cast 316 stainless steel casing and open impeller provide total defense against corrosive acids.
- Handles large 27 mm suspended solids and slurry particulate without impeller choking.
- Industrial 11 kW three-phase 415 V TEFC motor configured for continuous severe-duty cycling.
- Cast channel-steel base plate dampens vibration and retains coupling alignment.
- Vertical self-priming suction lift reaches 6 m without needing a foot valve on intake lines.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 2300 L/Min |
| Max Head | 28 m |
| Power | 11 kW / 415v |
| Suitable For | Sludge Transfer |
| Body Material | 316 Stainless Steel |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What water transfer rate and vertical elevation boundary are achieved by this pump?
The hydraulic wet end of the Aussie Pumps GMP 316 Stainless Steel ATEX Semi-Trash B4XR-A/X (GB4XR-A/X 11KW) produces a maximum fluid throughput of approximately 2300 L/min while reaching a maximum vertical head of approximately 28 m.
What flameproof features qualify this four inch pump for fuel terminals and refineries?
For the GB4XR-A/X 11KW, certified explosion-proof motor construction encloses all electrical elements, eliminating spark risks around volatile hydrocarbons.
Can oily sludge and suspended sediment particulates pass through the wet end without clogging?
Internal passages on the GB4XR-A-X-11KW permit spherical solid particles and oily sludge up to 27 mm across to flow through the casing without binding.
How is mechanical propulsion supplied to the internal impeller shaft?
Shaft propulsion for the GB4XR A X 11KW is supplied by a three-phase electric motor rated at 11 kW, operating on 415 V line power within an IP55 frame.
What mechanical seal construction provides chemical isolation along the stainless drive shaft?
A carbon ceramic mechanical seal on the B4XR-A/X (GB4XR-A/X 11KW) with Viton elastomers delivers chemical containment and stops corrosive fluid from reaching motor bearings.
