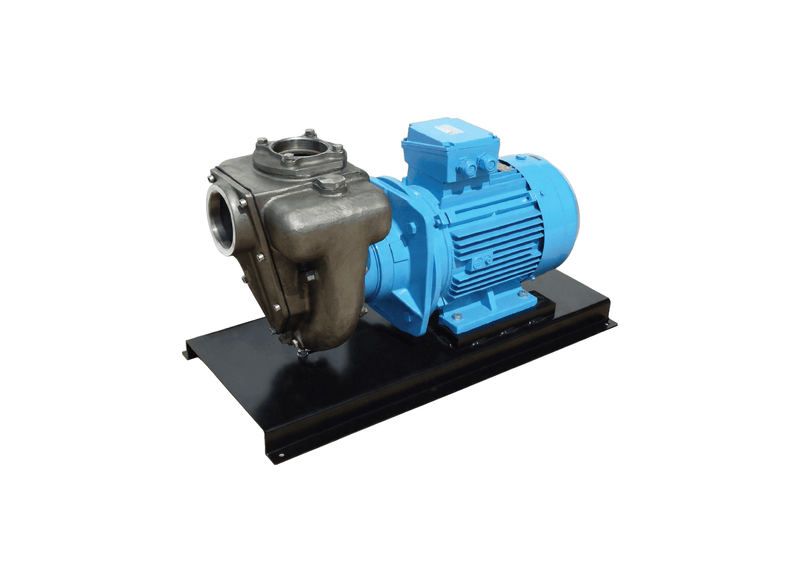

Aussie Pumps GMP GB4XR-A/X 15KW Stainless Steel Three Phase Chemical Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Severe chemical processing plants, acid slurry pits, and bulk refinery dewatering sumps deploy the premier Aussie GMP B4XR-A/X motor-driven unit . An ultra-heavy steel channel bed anchors the assembly, preventing deflection under colossal hydraulic momentum.
Demanding corrosive throughput achieves an strong open-discharge flow capacity of 2,120 L/min at zero head and builds a 29 m (41 PSI) shut-off head at zero flow. An open 316 stainless impeller processes suspended chemical solids up to 32 mm without choking.
Heavy drive power comes from an industrial 15 kW three-phase 415 V TEFC motor rated to IP55, supplied unwired without a lead or plug for panel isolator wiring. Internal self-priming passages pull dirty water from 6 m vertical depths without external foot valves.
Removable 316 stainless steel wear covers shield the volute from high-velocity slurry wear at temperatures up to 70°C intermittently. Chemical mechanical seals encased in 316 SS prevent leakage. Backed by Aussie Pumps 3-year factory GMP warranty coverage.
Features- Top-tier bulk throughput delivering up to 2,120 L/min open discharge volume through 4-inch ports.
- Handles large 32 mm spherical solids and abrasive chemical slurry without pump binding.
- Heavy cast 316 stainless steel construction delivers demanding resistance to acids, chemicals, and AdBlue®.
- High-torque 15 kW three-phase 415 V TEFC electric drive rated for continuous severe-duty dewatering.
- Channel-steel base plate isolates mechanical vibration and retains coupling alignment.
- Self-primes rapidly from vertical suction depths of 6 m without external priming mechanisms.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 2500 L/Min |
| Max Head | 31 m |
| Power | 15 kW / 415v |
| Suitable For | Sludge Transfer |
| Body Material | 316 Stainless Steel |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What material construction enables the casing to withstand corrosive seawater?
For the Aussie Pumps GMP 316 Stainless Steel ATEX Semi-Trash B4XR-A/X (GB4XR-A/X 15KW), cast AISI 316 stainless steel metallurgy resists pitting and crevice corrosion from concentrated seawater, salt spray, and harsh marine runoff.
Which liquid volume capacity and elevation pressure are delivered during operation?
Under full operating speed, the GB4XR-A/X 15KW generates a maximum fluid displacement rate of approximately 2500 L/min and reaches an elevation head of approximately 31 m.
What power supply connects to this electric pump motor?
The GB4XR-A-X-15KW connects to a three-phase 415 V electrical supply to run a 15 kW flameproof electric motor with IP55 ingress protection.
What solid debris clearance is provided by the open semi trash impeller?
The open vane stainless steel impeller on the GB4XR A X 15KW clears suspended seaweed, sand, and solid debris up to 32 mm in diameter without choking.
How does the self priming volute draw liquid without a flooded suction inlet?
Internal recirculation channels on the B4XR-A/X (GB4XR-A/X 15KW) evacuate air from intake lines, pulling liquid vertically from depths up to 6 m without an external foot valve.
