SKU: GB4XR-A/X/HYD

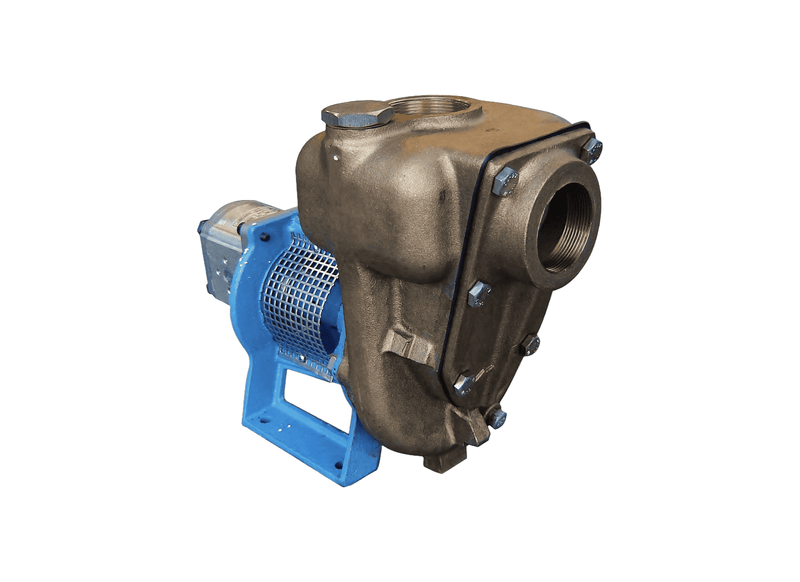

Aussie Pumps GMP GB4XR-A/X/HYD 316 Stainless Steel 4" Ports Hydraulic Self-Priming Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
The stainless hydraulic flagship shifts up to 2,200 litres a minute through 4-inch 316 stainless ports, giving chemical transfer and aggressive mine water a pump with no corrosion compromise at station-scale flow. Top of the stainless hydraulics. Zero-compromise stainless flagship is GB4XR-A/X/HYD with 4-inch 316 stainless ports.
Maximum flow holds 2,200 L/min open discharge, shutting off at 30 m head (43 PSI). The 316 stainless steel construction with open non-clog impeller runs a carbon/alumina seal with nitrile rubber.
Zero corrosion compromise at station-scale flow draws 34 cm3/rev at 100 bar (12.5 kW) for up to 2,200 litres a minute through 4-inch 316 stainless ports. Full-bore 100 mm waterways self-prime from 6 m, with wear renewal handled at the replaceable suction port.
Marine pumping, mine dewatering, water transfer and fire-fighting supply make up the stated duty range. This lets the same hydraulic pump serve vessel water-management work, site dewatering, transfer between water points and fire-water readiness across marine, mining and remote-work locations.
Features
- Compromise-free 316 stainless flagship at 34 cm3/rev and 100 bar (12.5 kW) tops corrosion resistance.
- Station-scale aggression moves 2,200 L/min peak flow, shutting off at 30 m (43 PSI).
- Station-scale 4-inch stainless ports give chemical transfer full-bore flow without any restriction.
- Harshest-liquid duty meets the open non-clog impeller with carbon, alumina and nitrile sealing.
- Renewal-handled replaceable suction port with 6 m self-priming simplifies stainless servicing greatly.
- Hydraulic drive connects the pump to a compatible carrier circuit without requiring a dedicated engine.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can the casing self prime from below ground tanks without a check valve in the line across unflooded suction setups?
Built-in priming passages on the Aussie Pumps Stainless Steel Hydraulic Semi-Trash B4XR-A/X (GB4XR-A-X-HYD) draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What fluid volume per minute and total dynamic elevation head are generated through connected piping?
Across open pipeline runs, the GB4XR A X HYD pushes fluid at a maximum throughput of approximately 2200 L/min while attaining a shut-off head ceiling of approximately 30 m.
Can the wet end clear slurry solids and small stones without choking internal channels during routine excavation drainage?
The open vane AISI 316 stainless steel impeller on the GB4XR-A/X/HYD clears dirty site runoff and solid debris without stalling the shaft.
What chemical solutions and process fluids can this stainless pump transfer safely when transferring harsh farm chemicals?
Cast 316 stainless steel wetted surfaces suit the GB4XR-A/X/HYD for demanding transfer duties.
What auxiliary oil specifications are required to operate the hydraulic drive across mobile water cart circuits?
Hydraulic oil flow from the carrier machine powers the motor on the B4XR-A/X (GB4XR-A/X/HYD), providing self-contained pumping without on-board petrol or diesel engines.
