SKU: GB6XR-A 11KW

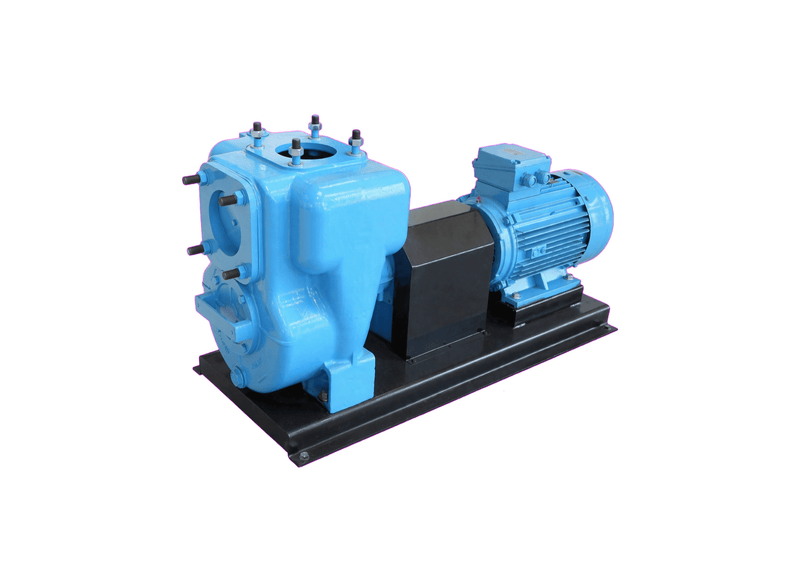

Aussie Pumps GMP GB6XR-A 11KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Municipal bypass stations, raw sewage plants, and civil flood mitigation sumps deploy the Aussie GMP B6XR-A motor-driven unit . Its low-speed four-pole motor rotates at low-speed four-pole operation, reducing internal fluid velocity and extending casing life during continuous duty.
Waterway delivery reaches an open-flow capacity of 4,000 L/min at zero head and establishes a 14 m (20 PSI) shut-off head at zero discharge. The rugged cast iron hydraulic chamber is fitted with an open non-clog impeller capable of passing huge 50 mm spherical solids.
Propulsion is supplied by an 11 kW four-pole three-phase 415 V TEFC electric motor rated to IP55, supplied unwired for direct switchboard connection. High-capacity self-priming passages pull liquid from 6 m vertical depths without requiring a foot valve.
Sacrificial stainless wear plates and a 316 stainless shaft safeguard the volute against grit abrasion up to 70°C intermittently. A large front clean-out hatch allows swift chamber flushing without unbolting 6-inch pipework. 3-year Aussie Pumps commercial warranty.
Features- Low-speed 4-pole 11 kW three-phase 415 V motor (1,450 RPM) minimizes wear on wet end components.
- Large-volume 50 mm spherical solids handling capability for heavy industrial waste and raw sewage.
- High-capacity 6-inch porting delivers fluid volume up to 4,000 L/min open discharge.
- Maximum shut-off head reaches 14 m (20 PSI) at zero flow.
- Vertical self-priming suction lift reaches 6 m without a foot valve on intake lines.
- Large front clean-out port enables rapid volute inspection without dismantling pipework.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Why does the four pole electric motor operate at lower rotational speed?
The four-pole motor on the Aussie Pumps GMP High Volume Semi-Trash B6XR-A (GB6XR-A 11KW) runs at 1450 RPM, reducing internal impeller tip speed to decrease wear while pumping high volumes of gritty water.
Which open water displacement and discharge elevation boundaries are rated for this unit?
Open discharge displacement for the GB6XR-A 11KW delivers up to approximately 4000 L/min, with total dynamic head reaching a maximum of approximately 14 m.
What solid particle dimensions can the pump casing clear without obstruction?
Large six-inch waterways on the GB6XR-A-11KW and an open cast iron impeller permit spherical debris up to 50 mm in diameter to flow through freely.
What pipe connection fittings and intake threading come standard on the unit?
Six-inch flanged intake and discharge ports on the GB6XR A 11KW come standard, connecting to rigid pipework or flanged plant transfer lines.
How is the pump package anchored to workshop floors or structural skids?
A heavy structural steel frame supports the B6XR-A (GB6XR-A 11KW), supports the 360 kg unit, engineered with lifting lugs to facilitate placement by crane or forklift.
