SKU: GB6XR-A 15KW

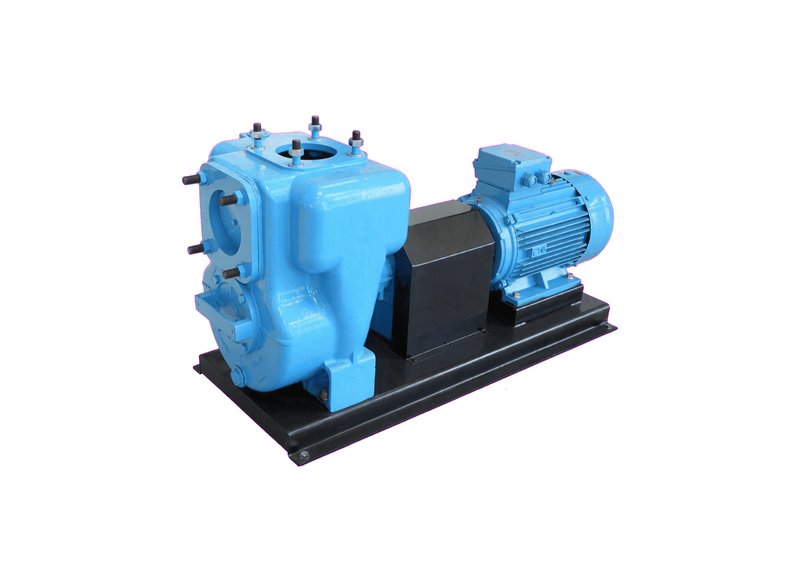

Aussie Pumps GMP GB6XR-A 15KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Heavy industrial settling ponds, viscous waste lines, and flood relief sumps benefit from the Aussie GMP B6XR-A motor-driven unit . Its four-pole motor rotates at low-speed four-pole operation, delivering heavy torque reserve for dense slurries while minimizing volute erosion.
Open-discharge delivery achieves 4,000 L/min at zero static head, accompanied by a 14 m (20 PSI) shut-off head at zero flow. The heavy cast iron wet end incorporates an open non-clog impeller that transfers large spherical debris and raw effluent up to 50 mm cleanly.
Cast rotational drive originates from an industrial 15 kW four-pole three-phase 415 V TEFC motor rated to IP55, supplied unwired without a lead or plug for control panel hardwiring. Centrifugal self-priming action draws waste from 6 m depths without a foot valve.
Specialized silicon carbide mechanical seal faces with an alumina counterface tolerate intermittent process temperatures up to 70°C. An oversized front clean-out hatch enables rapid volute de-silting without disturbing permanent 6" lines. 3-year factory warranty.
Features- Cast 15 kW four-pole three-phase 415 V motor running at 1,450 RPM for dense slurries.
- Handles large 50 mm solids in suspension without impeller jamming or casing blockage.
- Pumping throughput moves up to 4,000 L/min open flow with a 14 m maximum shut-off head.
- Self-primes quickly from vertical depths of 6 m through large-bell casing geometry.
- Rugged cast iron body with 316 stainless steel drive shaft and stainless wear plate.
- Front clean-out hatch allows swift chamber de-silting without disturbing 6-inch pipe joints.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum fluid throughput and vertical head pressure does the wet end deliver?
Peak fluid throughput for the Aussie Pumps GMP High Volume Semi-Trash B6XR-A (GB6XR-A 15KW) reaches up to approximately 4500 L/min while generating a maximum vertical elevation head of approximately 18 m.
What electric drive package and enclosure rating power this pump?
Mechanical power for the GB6XR-A 15KW is supplied by a four-pole three-phase electric motor generating 15 kW on 415 V within an IP55 terminal housing.
How does the non clog open impeller pass slurry solids without seizing?
The wide-throat open impeller on the GB6XR-A-15KW passes solid debris, gravel, and pit runoff up to 50 mm in diameter without stalling or clogging.
How does the wet end establish rapid suction when starting with dry intake lines?
Internal priming dynamics on the GB6XR A 15KW rapidly evacuate intake air, drawing liquid from vertical depths down to 6 m without a suction foot valve.
What factory warranty coverage and spare parts backup support this pump?
The B6XR-A (GB6XR-A 15KW) is protected by an Aussie Pumps three-year casing warranty, backed by extensive spare parts inventories across Australia.
